TOOLS AND HARDWARE REQUIRED
X SECTION 5 (CONTINUED)
6
5.4

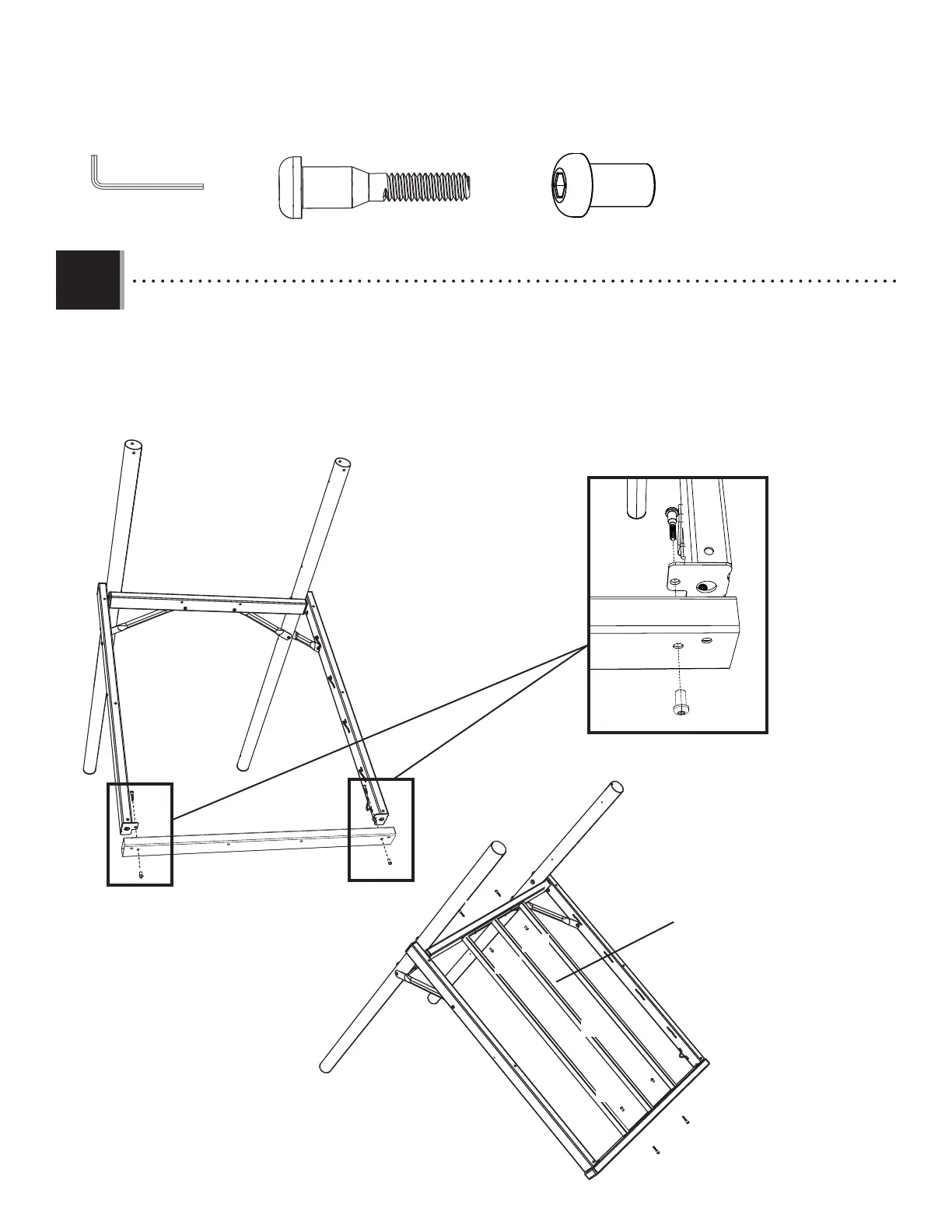

• Attach the Deck Support Tube, Swing-side (CBD) to the Deck Support Assembly using the hardware indicated. Install
the Inside Deck Support (CBL) in the position indicated and secure with the hardware shown.
3/16 in/po (≈5 mm)
(2)
BTS (x6)
DXY (x6)
BTS
BTS
DXY
BTS
DXY
DXY
CBL
BTS
BTS
Hook on Inside Deck Support points downward
CBD
DXY
DXY
