Lifetime 90240 - Page 32

38
TOOLS AND HARDWARE REQUIRED
X SECTION 5 (CONTINUED)
5.6

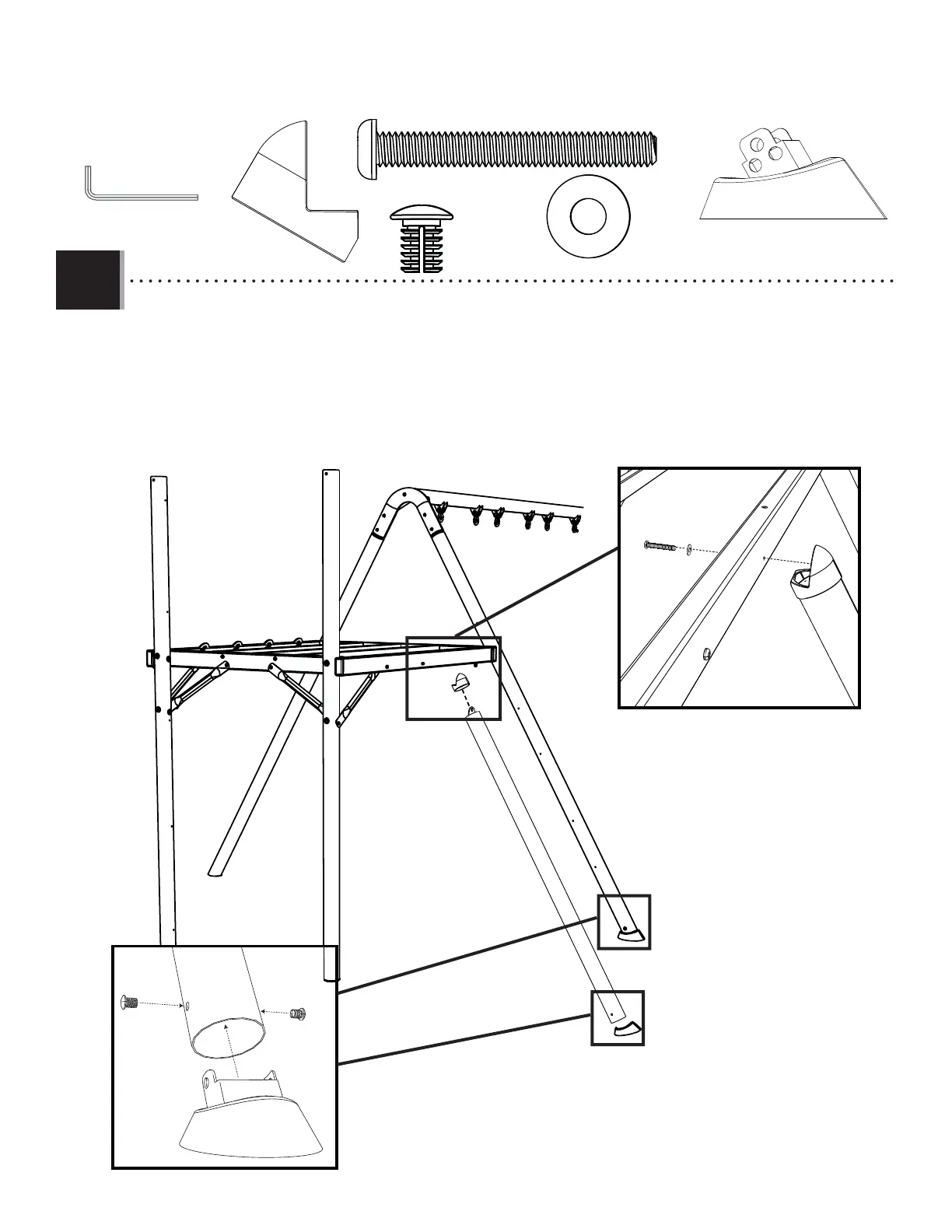

• Slide the Ladder Cap (CAC) onto the Angled Ladder Leg (CAZ) as pictured, then connect the Angled Ladder Leg to the
Ladder-side Deck Support (CBC) with the hardware indicated. Attach the Foot Cap (BFD) to the Angled Ladder Leg and
secure it with the hardware indicated.
3/16 in/po (≈5 mm)
(2)
CAC (x1)
BFD (x2)
ARO (x4)
ARU (x1)
ARL (x1)
ARO
ARO
BFD
CAZ
CAZ
CAC
ARU
ARL
