Lifetime 90240 - Page 47

49

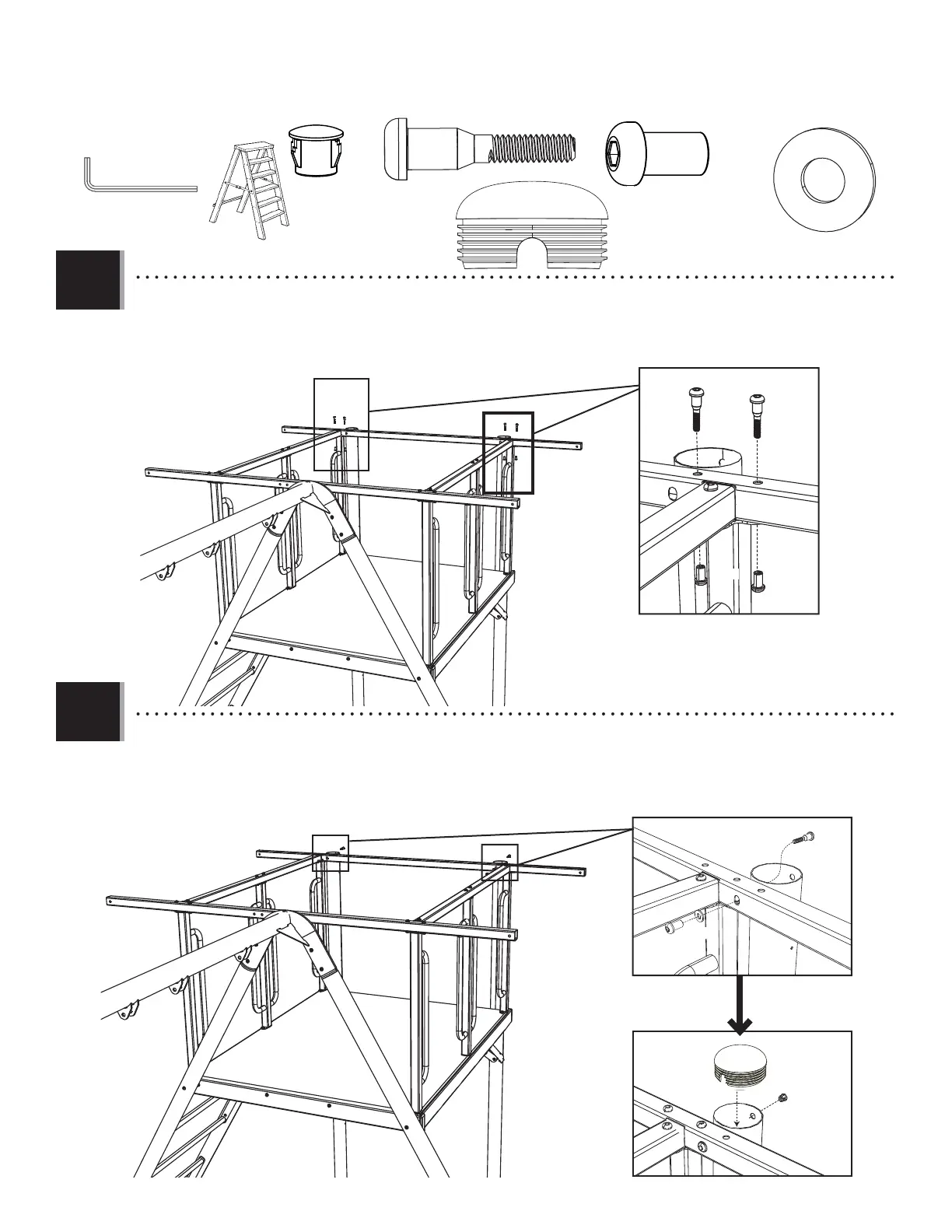

TOOLS AND HARDWARE REQUIRED
X SECTION 6 (CONTINUED)
6.6
• Secure the Climbing Wall Deck Tube (CBW) to the One-Handle Rails (CBS) with the hardware indicated.
BTS (x6)
DXY (x6)
AOF (x2)
AAF (x2)
EIF (x2)
3/16 in/po (5 mm)
(2)
(1)
DXY
BTS
6.7
• Secure the Climbing Wall Deck Tube (CBW) to the Right Vertical Pole (CBJ) and Left Vertical Pole (CBK) with the hardware
indicated.
DXY
AAF
BTS
EIF
AOF
