TOOLS AND HARDWARE REQUIRED
X SECTION 6 (CONTINUED)
6
6.5

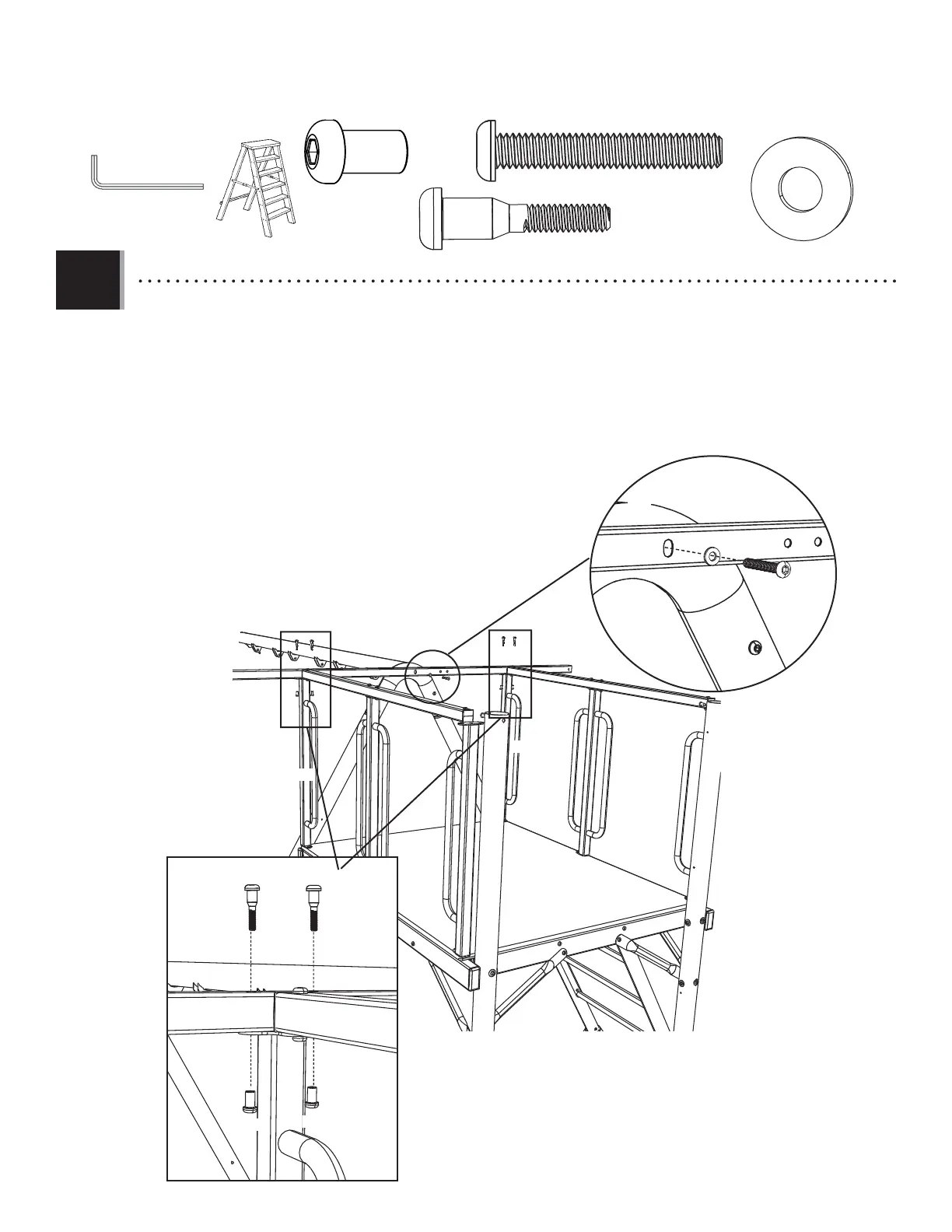

• Attach the A-Frame Roof Tube (CBV) to the One-Handle Rails (CBS) and the Swing Bar (CBO) with the hardware shown in
the locations indicated. Make sure the dimpled side of the A-Frame Deck Tube faces the A-Frame, while the
three holes on the tube face downward.
3/16 in/po (≈5 mm)
(2)
BTS (x4)
DXY (x4)
ASB (x1)
AAF (x1)
(1)
CBS
CBS
ASB
AAF
BTS
BTS
DXYDXY
CBO
CBV
