53
TOOLS AND HARDWARE REQUIRED
X SECTION 7 (CONTINUED)
6
7.3

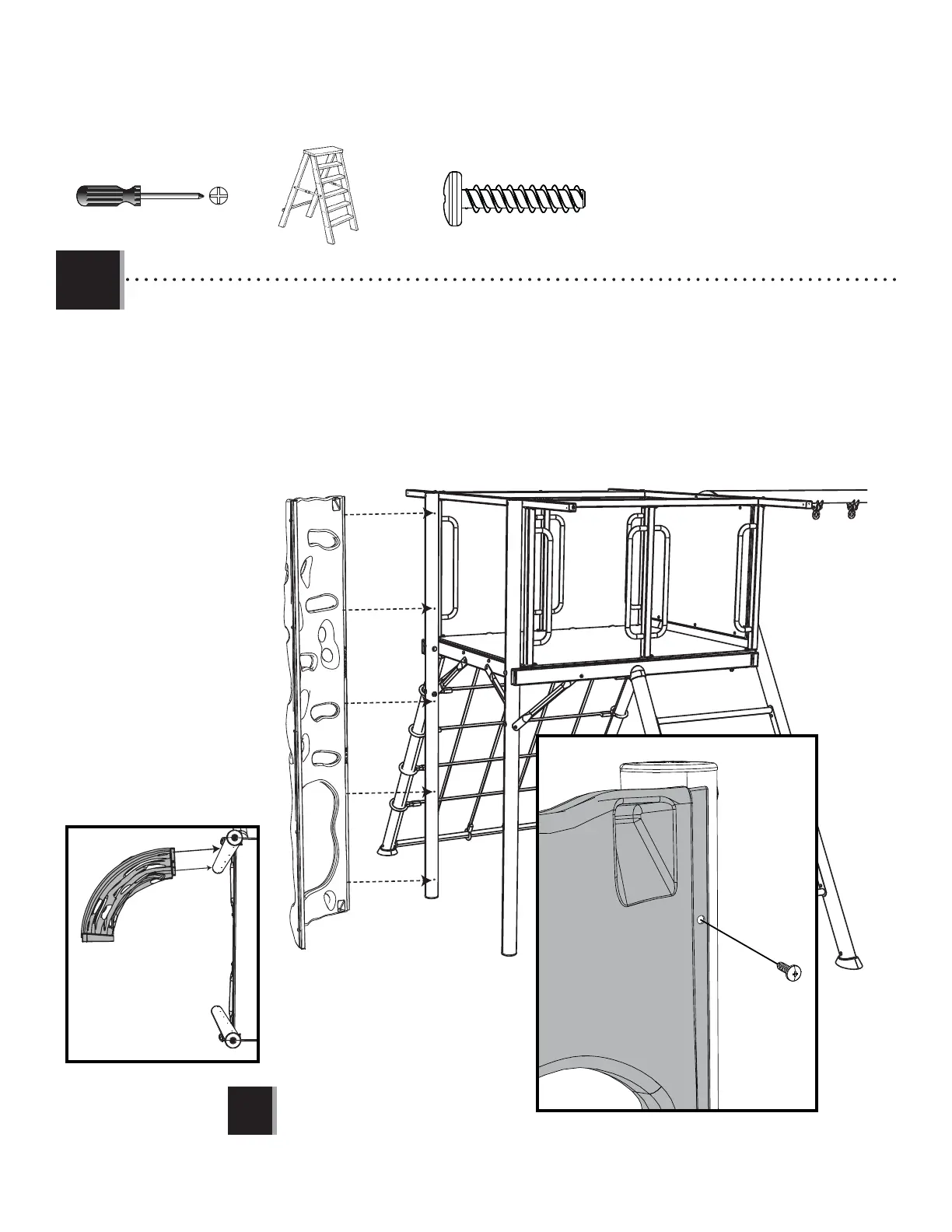

• Place a Climbing Wall Panel (CBX) that is attached to the Climbing Wall Pole (CBY) in the location shown. Make sure
the Climbing Wall Panel is oriented as shown. Secure the Climbing Wall Panel to the Left Vertical Pole (CBK) with the
hardware indicated.
(1)
Top View
CBY
CBX
CBX
ADV
!
• This step requires two people.
ADV (x5)
(1)
ADV
ADV
ADV
ADV
ADV
