54
TOOLS AND HARDWARE REQUIRED
X SECTION 7 (CONTINUED)
7.4

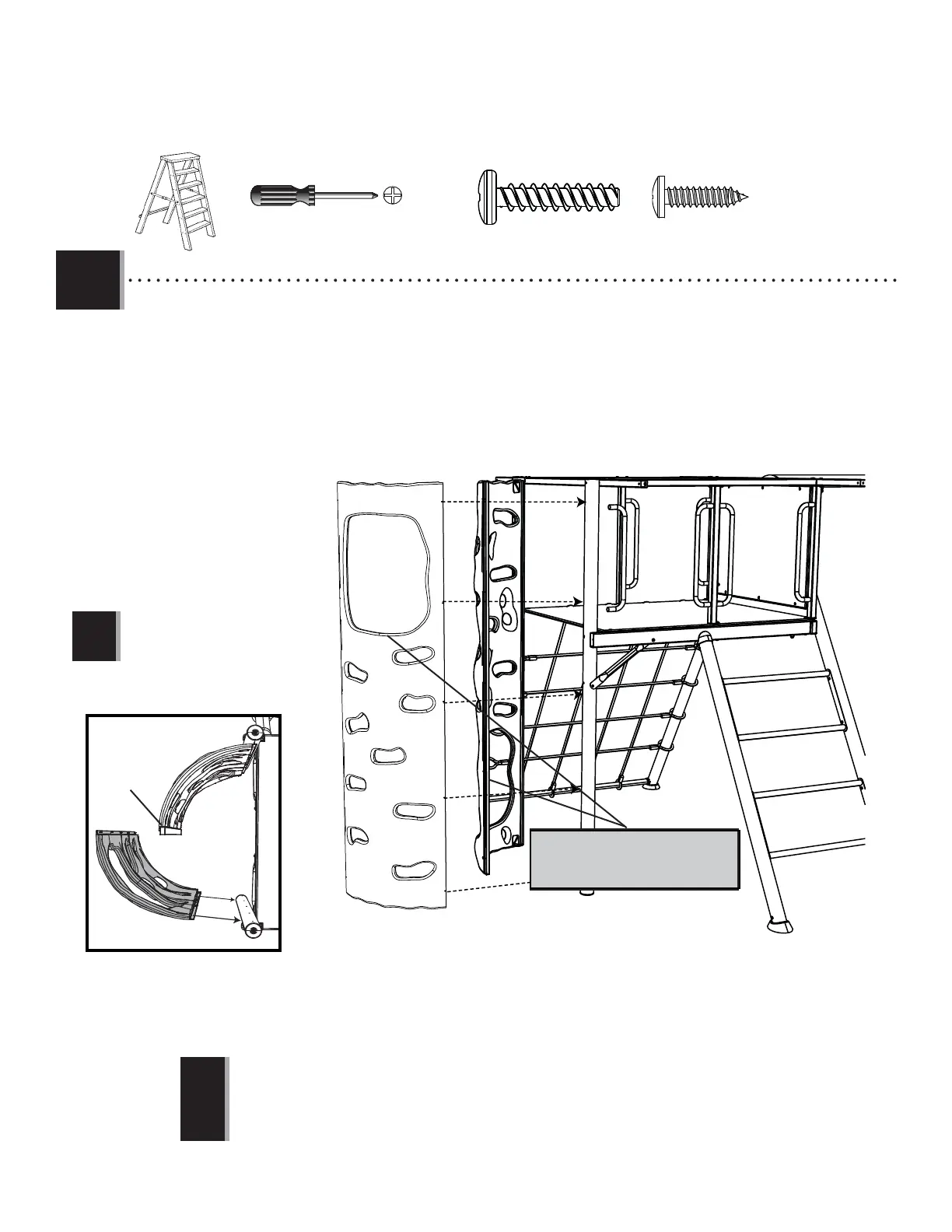

• Place the other Climbing Wall Panel (CBX) that is not attached to the Climbing Wall Pole (CBY) in the location shown. Make
sure the Climbing Wall Panel is oriented as shown in the image below. Attach this Panel to the Wall Pole using
the Screws (ADW) and the Right Vertical Pole (CBJ) using the Screws (ADV).
!
• Both Climbing Wall Panels are the same. Mount the panels so that the large openings are opposite.
ADW (x5)
ADV (x5)
(1)
Large Openings Opposite
CBY
CBX
CBX
!
• This step requires two people.
(1)
Top View
To Next Page
