Lifetime 90240 - Page 56

58
TOOLS AND HARDWARE REQUIRED
X SECTION 8 (CONTINUED)
8.2

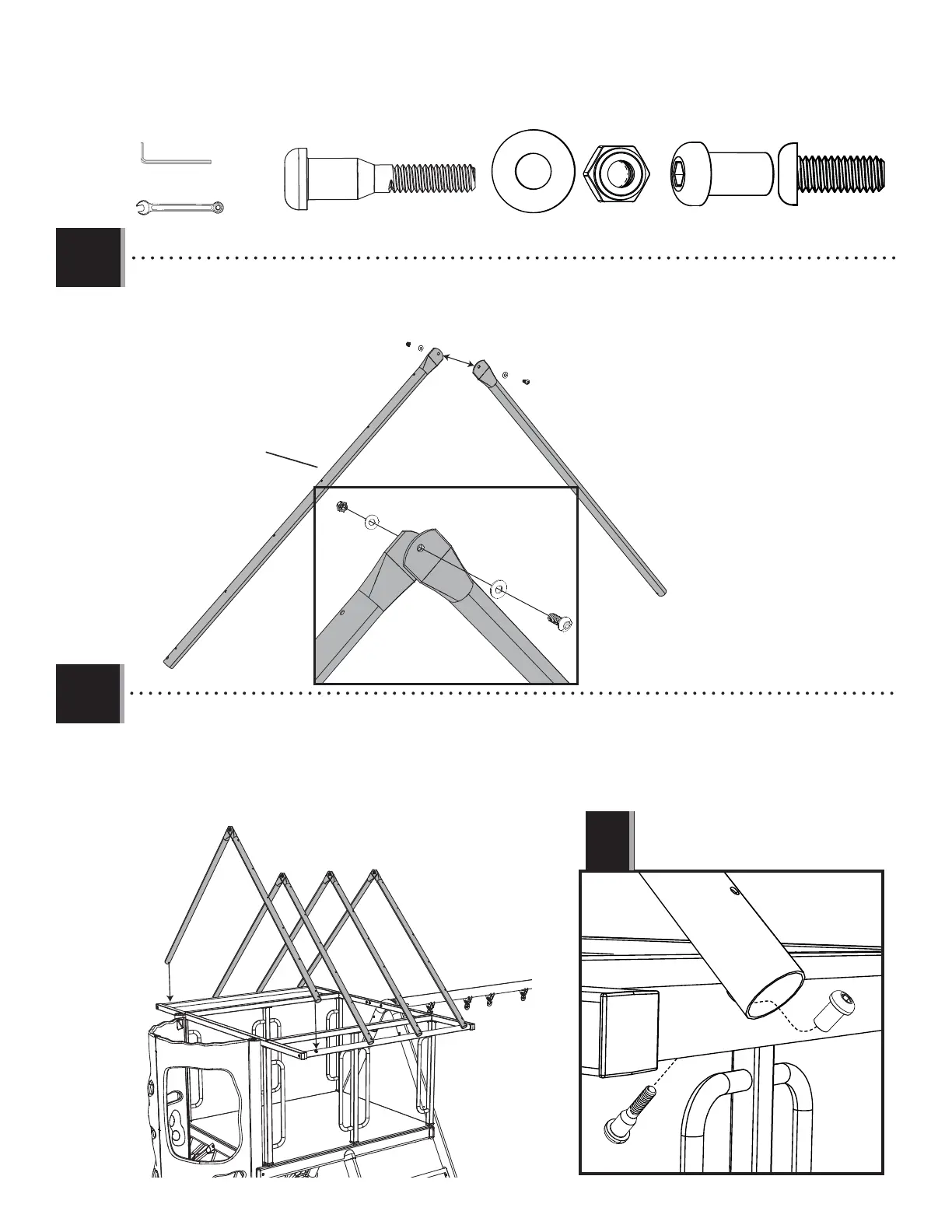

• Connect two Roof Trusses (CCB) together as shown. Repeat this step three more times to connect the other six
Trusses.
ASE (x4)
ARN (x4)
ARL (x8)
DXY (x8)
BTS (x8)
3/16 in/po (≈5 mm)
(1)
1/2 in/po (≈13 mm)
(1)
The holes in the trusses need to face up.
CCB
CCB
ASE
ARL
ARL
• Place the Roof Trusses assembled in step 8.2 on the Round Roof Tubes (CCA) as shown and secure with the hardware
shown.
CCA
CCB
DXY
8.3
!
• This step requires two people.
BTS
ASE
ARL
ARL
ARN
