Lifetime 90240 - Page 58

60
TOOLS AND HARDWARE REQUIRED
X SECTION 8 (CONTINUED)
6
8.6

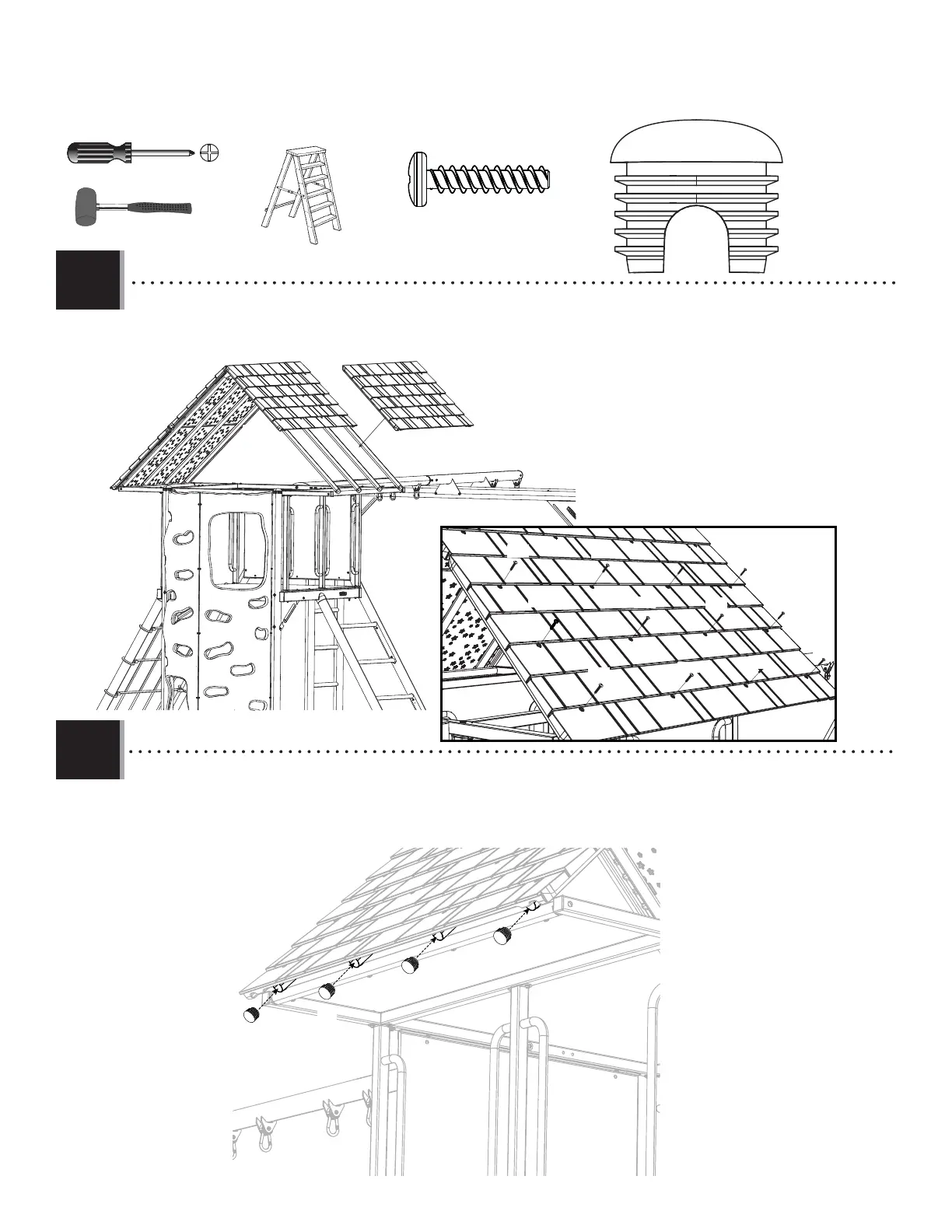

• Insert the Dome Caps (EIH) into the ends of the Roof Trusses (CCB). Tap lightly with a Rubber Mallet if necessary.
EIH (x8)
(1)
EIH
EIH
EIH
EIH
8.5
• Connect the two remaining Roof Panels (CCC) with the hardware shown.
ADV
ADV
ADV
ADV
ADV
ADV
ADV
ADV
ADV
ADV
ADV
CCC
CCC
ADV
ADV (x24)
(1)
(1)
