66
TOOLS AND HARDWARE REQUIRED
X SECTION 9 (CONTINUED)
6

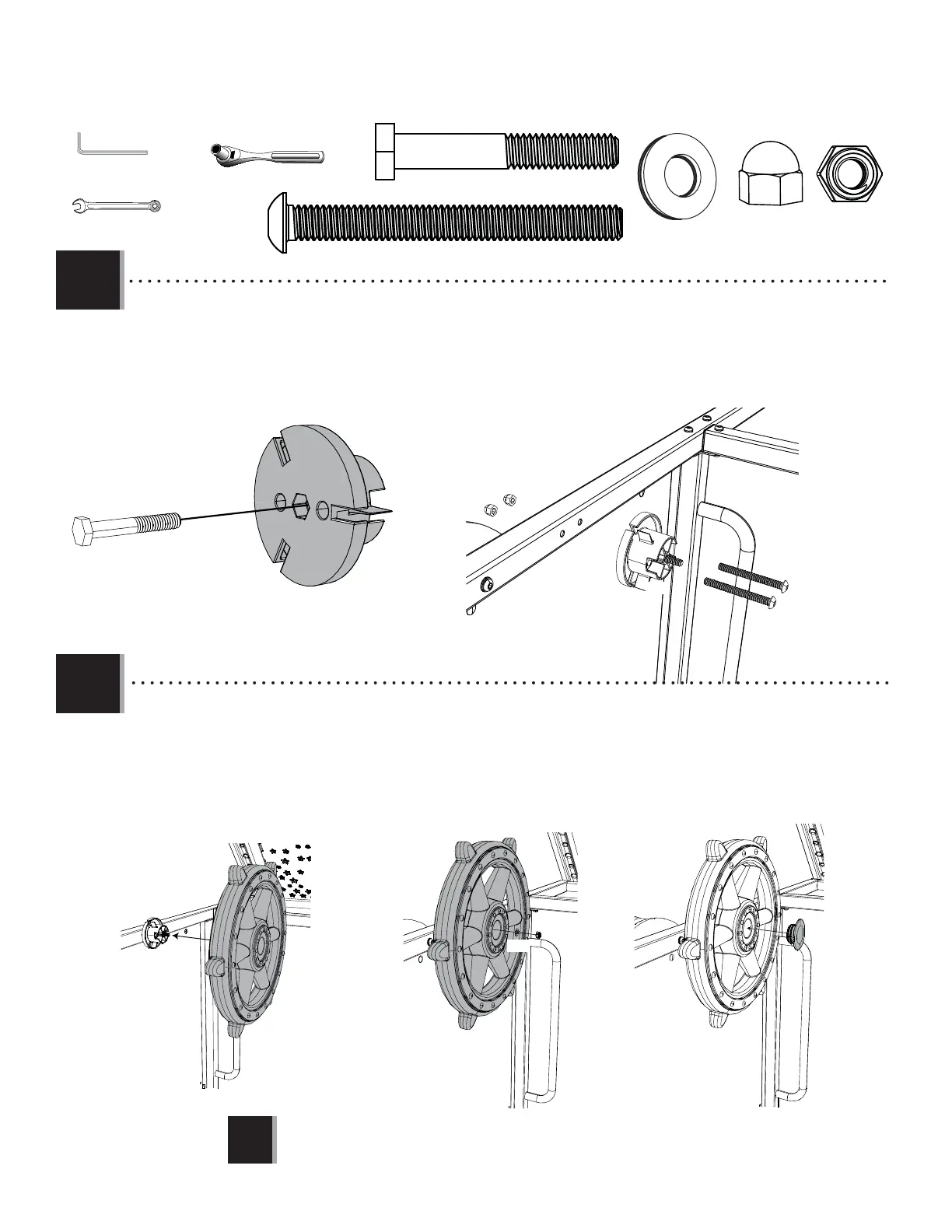

9.4
• Slide the Hex Bolt (ASH) into the center hole of the Wheel Clicker Hub (CAB) as shown. Attach the Wheel Clicker Hub
to the A-Frame Deck Tube (CBV) and secure with the hardware shown.
BZT (x1)
BZU (x2)
BRL (x1)
ARM (x2)
ASH (x1)
3/16 in/po (≈5 mm)
(1)
1/2 in/po (≈13 mm)
(1)
1/2 in/po (≈13 mm)
(1)
ASH
CAB
BZU
BZU
ARM
ARM
9.5
• Place the Steering Wheel (CCE) over the Wheel Clicker Hub (CAB) as shown. Secure the Steering Wheel to the Wheel Clicker
with the hardware shown. Insert the Wheel Cap (CAA) into the front of the Wheel.
CAB
CCE
CAA
BZT
BRL
!
• Do not overtighten the hardware. The Steering Wheel will not be able to rotate.
CAB
To Next Page
