TOOLS AND HARDWARE REQUIRED
X SECTION 10 (CONTINUED)
6

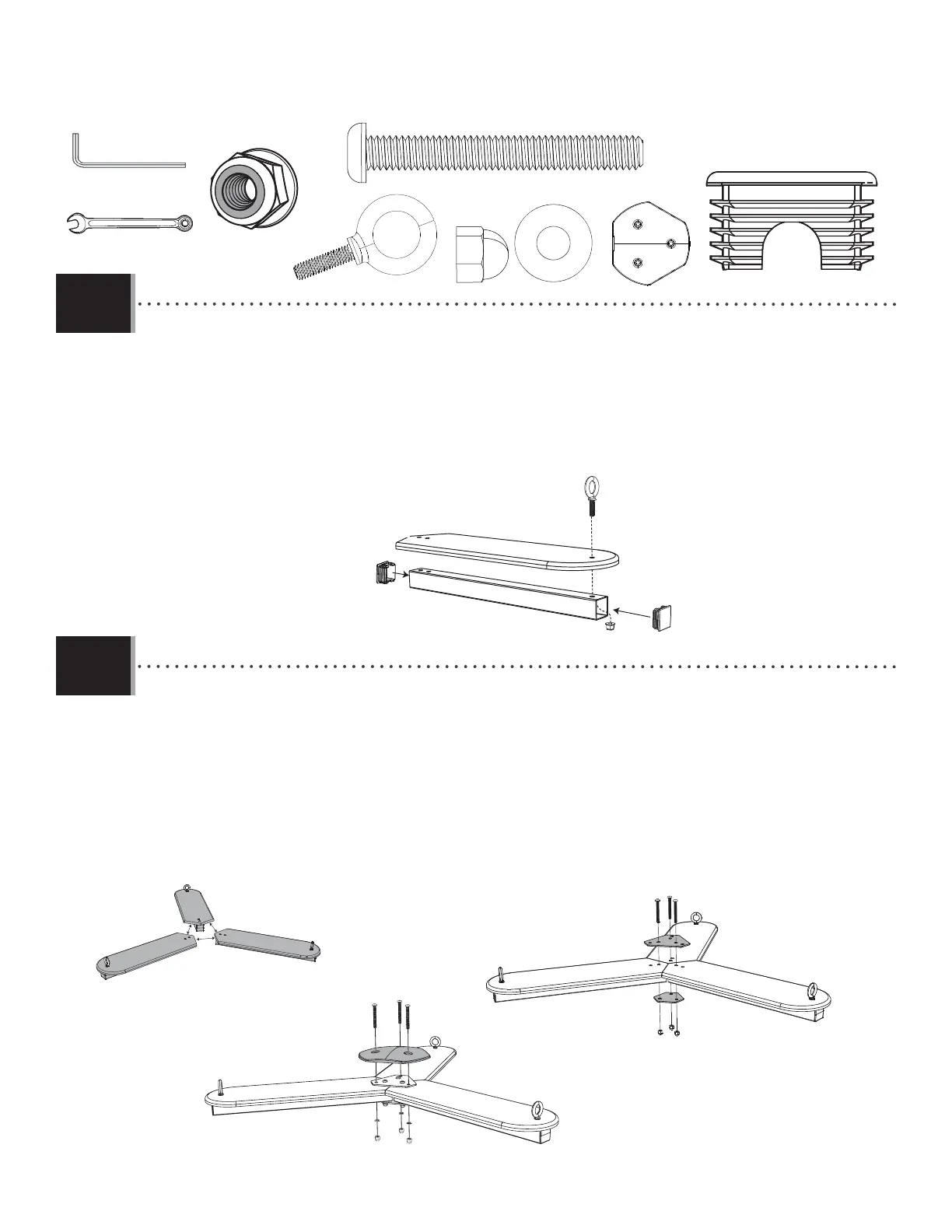

10.1
• Place the Plastic Seat (CCF) on top of the Under-Deck Swing Tube (CCG) and secure with the hardware shown. After
securing the seat to the tube, place the Square Plug Caps (EIG) into the end of the Tube with the Eye Bolt (ASL).
Repeat this step to assemble the two remaining Plastic Seats to the Square Tubings.
EIG (x6)
ABK (x3)
ASL (x3)
3/16 in/po (≈5 mm)
(x2)
1/2 in/po (≈13 mm)
(x1)
CCG
CCF
ASL
EIG
ABK
10.2
• Bring the three assemblies completed in step 7.1 together. Secure the assemblies together using the 3-Hole
Bracket (CCI) and 6-Hole Bracket (CCJ) and the hardware shown. Finish the Under-Deck Swing by placing the Under-
Deck Cap (CUY) on top of the 6-Hole Bracket, and securing it with the hardware shown.
BZY (x3)
CCI
CCJ
ARM (x3)
BZY (x3)
ARM (x3)
ARL (x3)
CUY
BZY (x6)
ARM (x6)
ARL (x3)
CCI (x1)
EIG
To Next Page
