TOOLS AND HARDWARE REQUIRED / OUTILS ET ACCESSOIRES REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS
X SECTION 10 (CONTINUED)
6
10.3

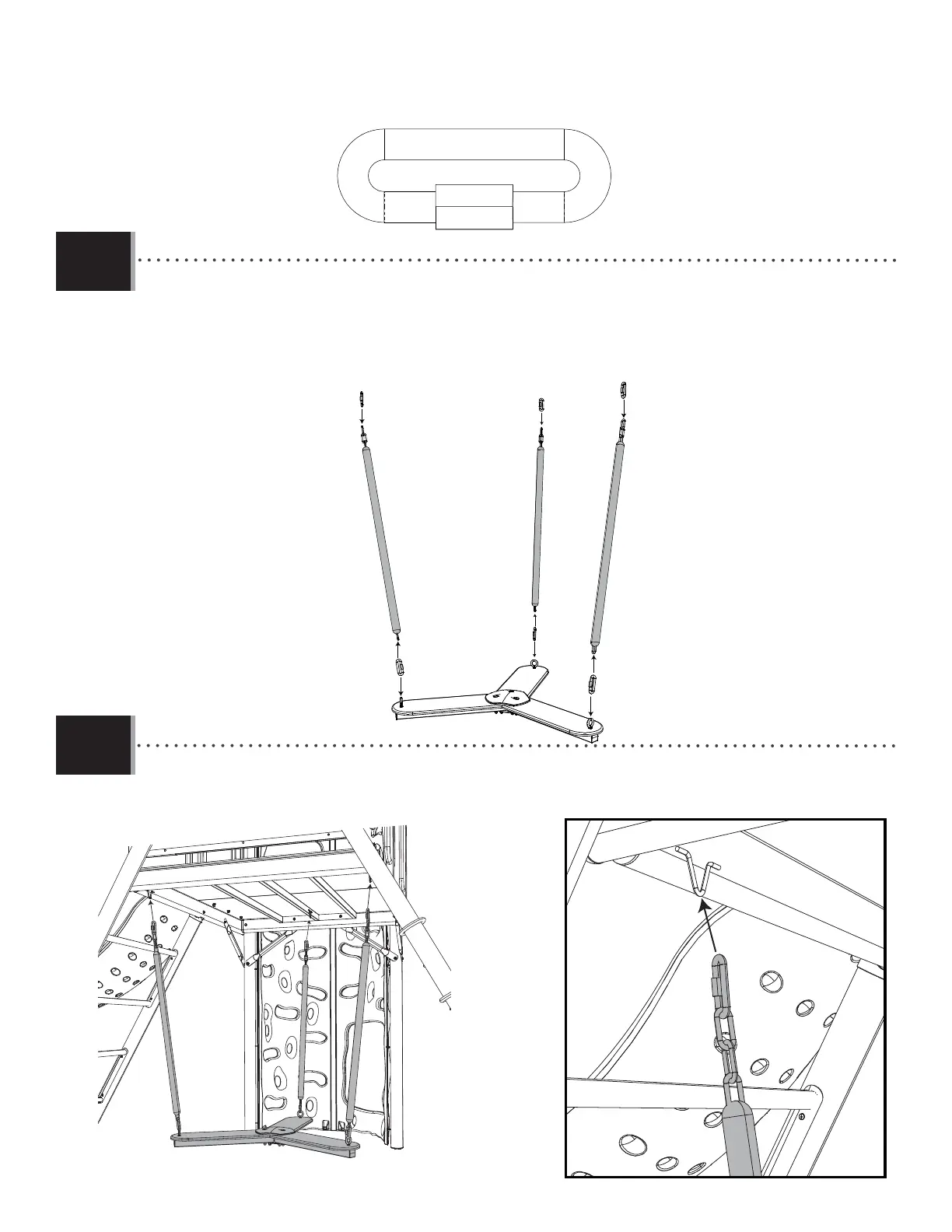

• Attach a Quick Link (ASM) to both ends of each Soft Grip Chain. Attach the Soft Grip Chains (CCH) to the Eye Bolts (ASL)
in the Under-Deck Swing Assembly.
ASM (x6)
CCH
CCH
CCH
ASM
ASM
ASM
ASM
ASM
ASM
10.4
• Attach the Under-Deck Swing Assembly to the hooks located on the underside of the Deck.
