TOOLS AND HARDWARE REQUIRED
X SECTION 1 (CONTINUED)
6
DSA (x4)
1.2
BTS (x4)
3/16 in/po (≈5 mm)
(2)

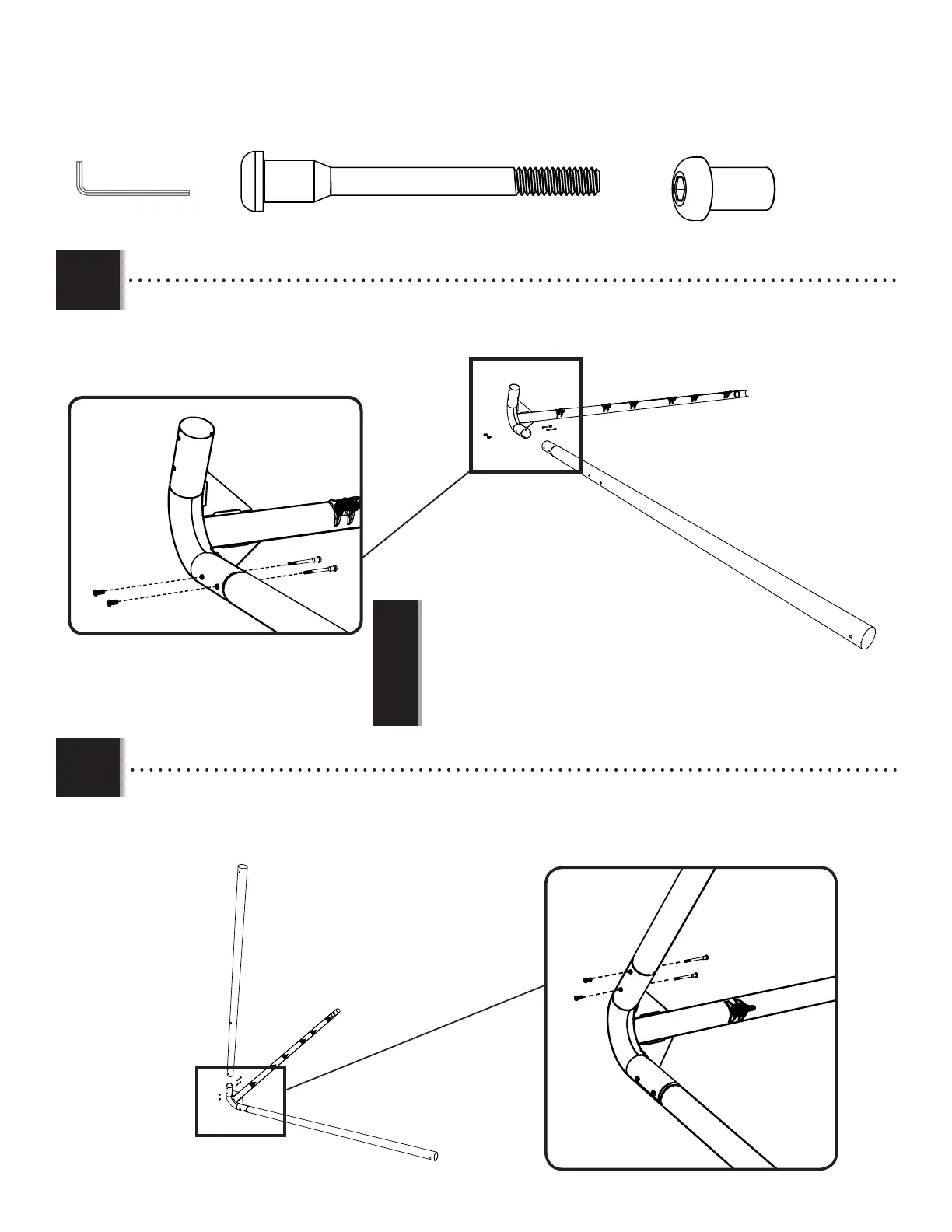

• Attach an A-Frame Pole (CBE) to the Swing Bar (CBO) in the location indicated.
BTS
DSA
BTS
DSA
CBE
CBO
1.3
!
• If your A-Frame pole has a dimpled hole, make sure the dimpled
hole faces away from the Swing Bar.
• Repeat step 1.2 to attach the remaining A-Frame Pole (CBF) to the Swing Bar (CBO).
BTS
BTS
DSA
DSA
CBE
CBF
To Next Page
