28
TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS
SECTION 5 (CONTINUED) / SECTION 5 (SUITE) / SECCIÓN 5 (CONTINUACIÓN)
ALB
AKB
AKB
AAD
AAX
ABO
ABO
AAX (x1)
ABO (x2)
AAD (x1)
3/4" (≈19 mm) (x2)
5.9

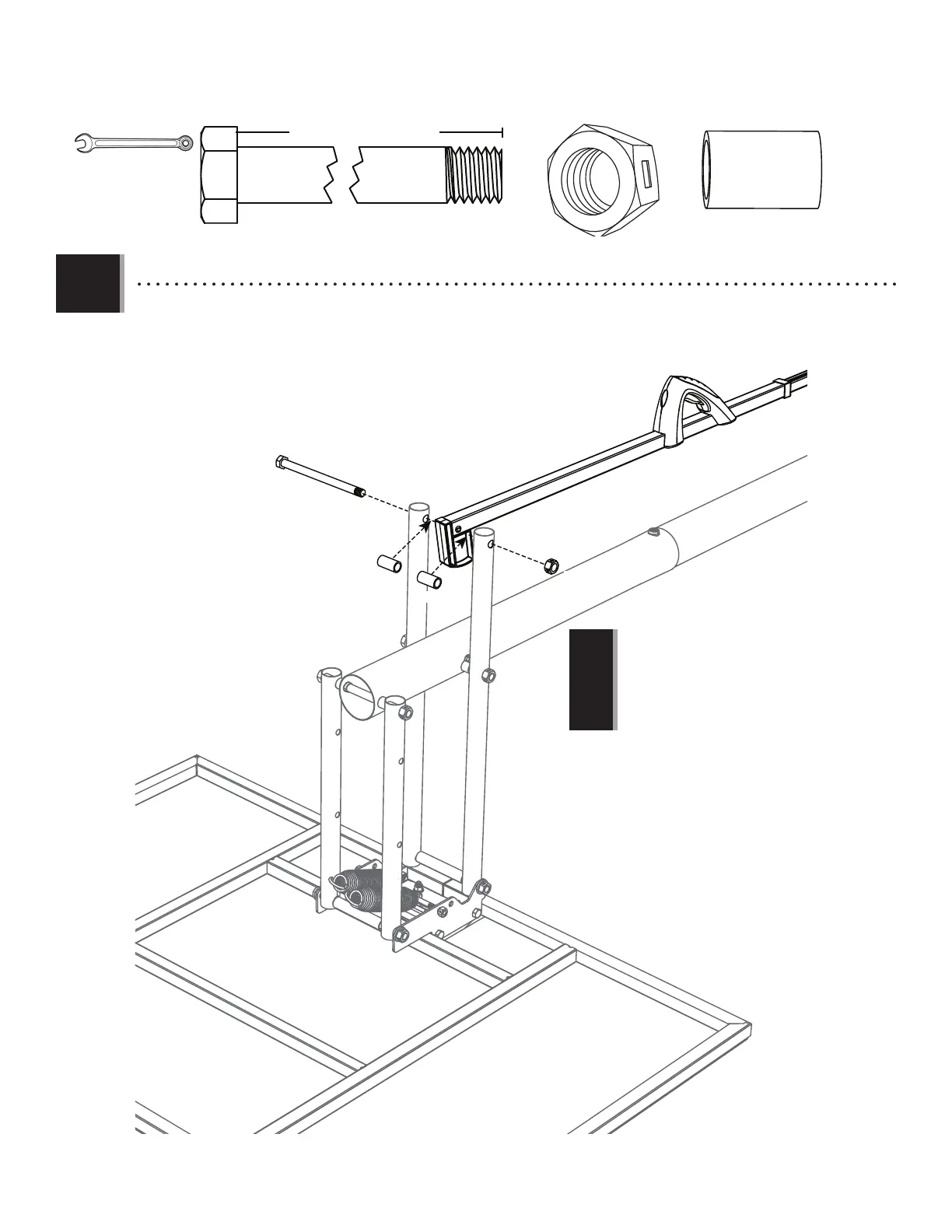

• Secure the outer tube (ALB) to the long extension arms (AKB) with the hardware shown.
• Attachez le tube externe (ALB) aux bras de rallonge longs (AKB) en utilisant de la quincaillerie indiquée.
• Sujete el tubo externo (ALB) a los brazos de extensión largos (AKB) usando el herraje indicado.
• Tighten the centerlock nut (AAX) until it is fl ush
with the end of the bolt.
• Serrez l’écrou de blocage central jusqu’à (AAX)
ce qu’il soit au ras de l’extrémité du boulon.
• Apriete la tuerca de bloqueo central hasta (AAX)
que esté a ras del extremo del perno.
!
(Not actual length)
(Non illustré à la longueur réelle)
(No está ilustrado al tamaño real)
