Lightmaxx Cannon Shot FX FOUR User Manual

ENGLISH
Set up:
A
ll connections of the device should be made before switching on. Only use high-quality cables
that are as short as possible for the connections.
C

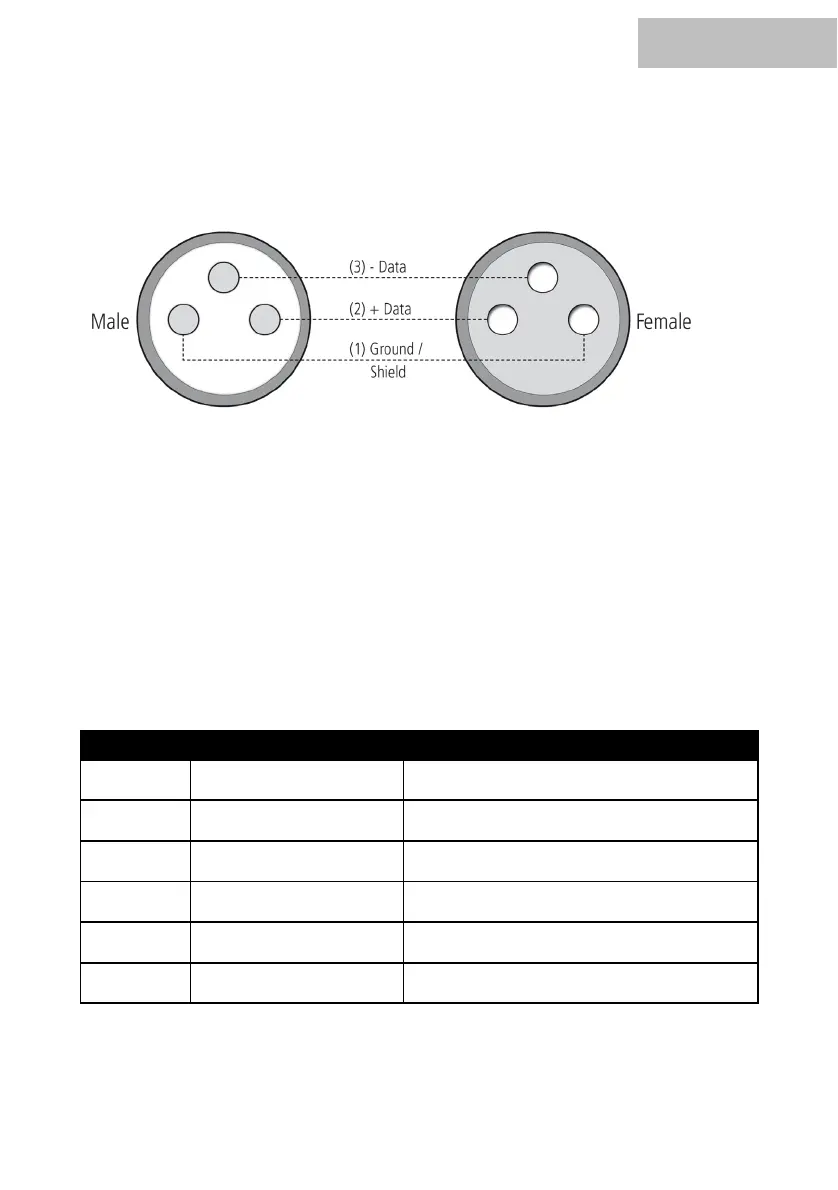

onfiguration of the DMX connector:
R
esistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) oft he last fixture.
Operating mode DMX:
C
onnect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX line. Always use a DMX cable with a
110 Ohm resistor for this connection. Address the device according to your DMX configuration.
The following table shows the respective DMX modes of the individual devices with the
corresponding values and functions:
6 Channel Mode:
Channel Value Function
1
000-010
011-255
No Function
Safe/Master
2
000-010
011-255
No Function
trigger head 1
3
000-010
011-255
No Function
trigger head 2
4
000-010
011-255
No Function
trigger head 3
5
000-010
011-255
No Function
trigger head 4
6
000-010
011-255
No Function
trigger all heads
