DMX mode:

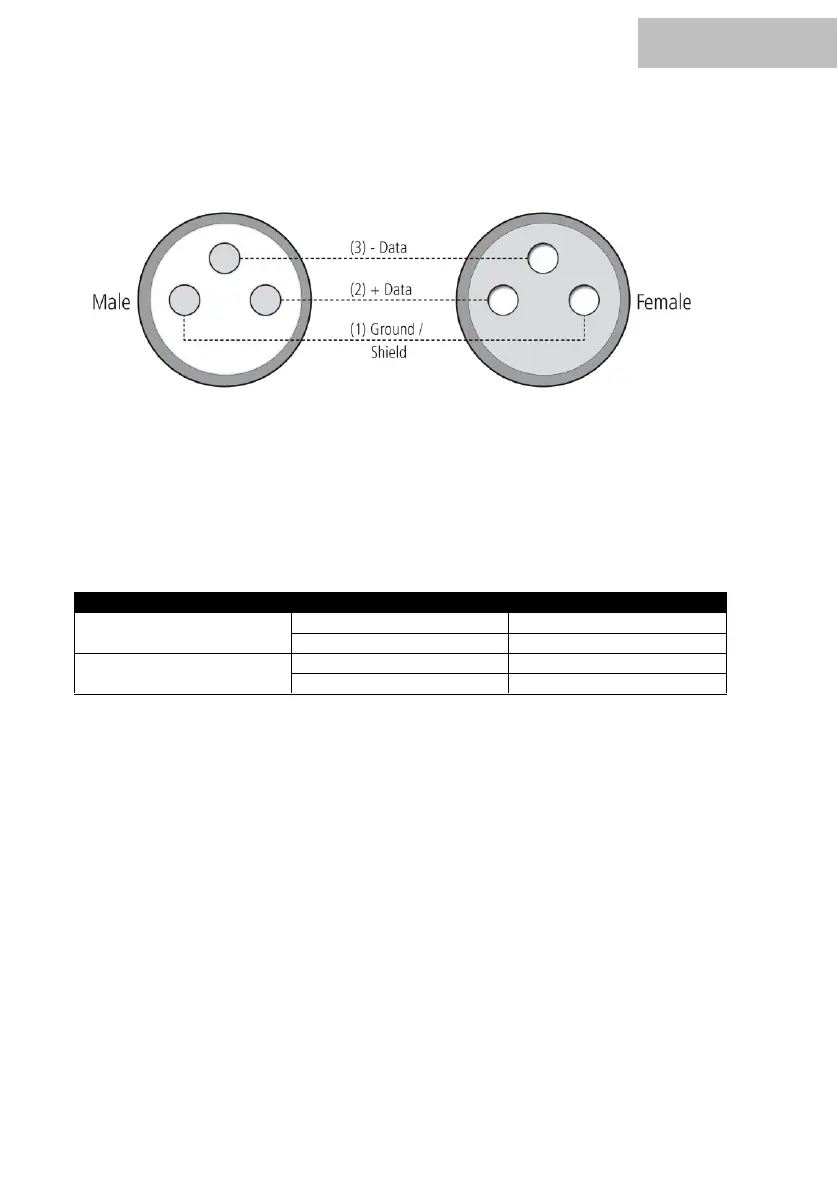

Configuration of the DMX connector:
Resistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) oft he last fixture.
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX chain. Always use a DMX cable with
a 110 Ohm resistor for this connection. Address the device according to your DMX configuration.
The following table shows the respective DMX modes of the individual devices with the
corresponding values and functions:
Channel
Value
Function
1
000-005
Off
006-255
1-100% Fan Speed
2
000-005
Off
006-255
1-100% Fog Output
