Lightmaxx Vector Spot Zoom 2.0 - Connections and Controls

ENGLISH

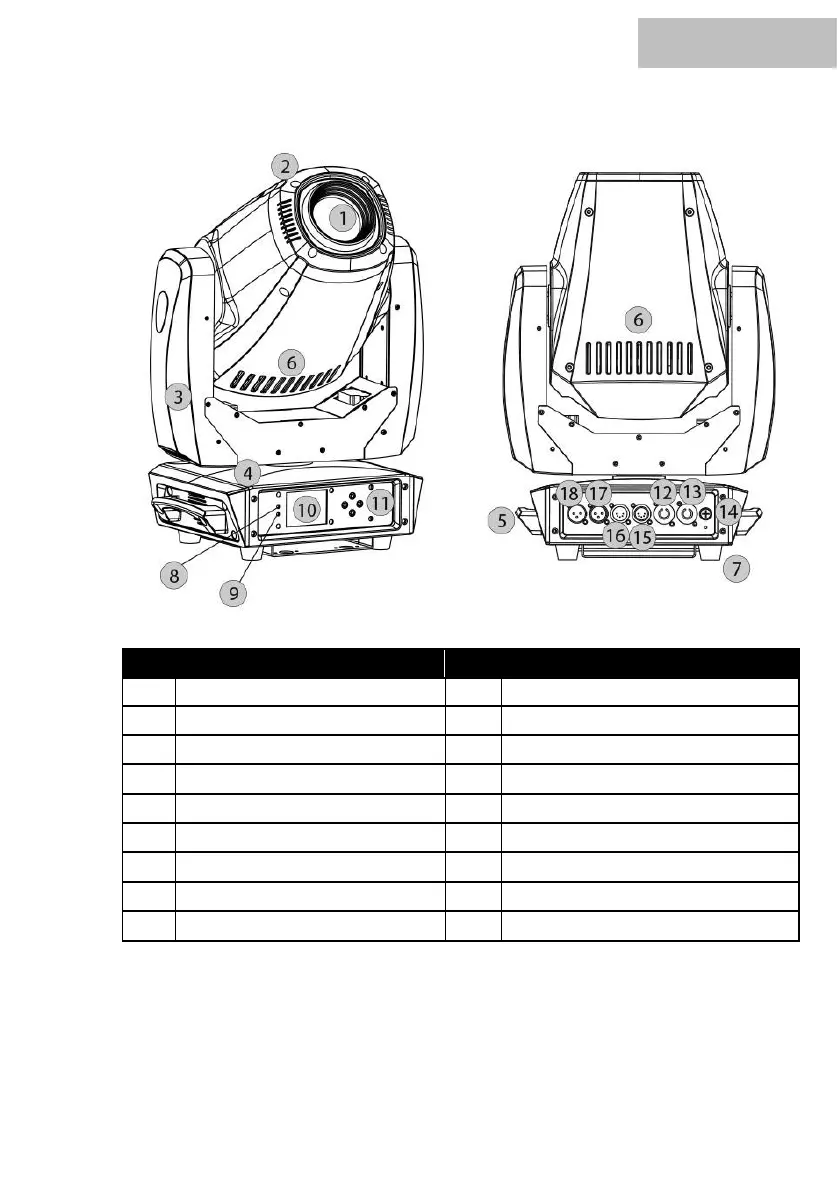

Connections and controls:
No.
Designation
No.
Designation
1
Lens
10
Display
2
Projector head
11
Menu keys
3
Projector arm
12
Power suppy input (PowerCon)
4
Base
13
Power supply output (PowerCon)
5
Carrying handle
14
Fuse holder
6
Ventilation shaft
15
DMX Out (5-pole)
7
Rubber base
16
DMX In (5-pole)
8
DMX light
17
DMX Out (3-pole)
9
Error light
18
DMX In (3-pole)
