Lightmaxx Vega BAT LED - Setup and DMX Operation; DMX Connector and Setup; 6-Channel DMX Mode

ENGLISH
Set up:
All connections of the device should be made before switching on. Only use high-quality cables
that are as short as possible for the connections.

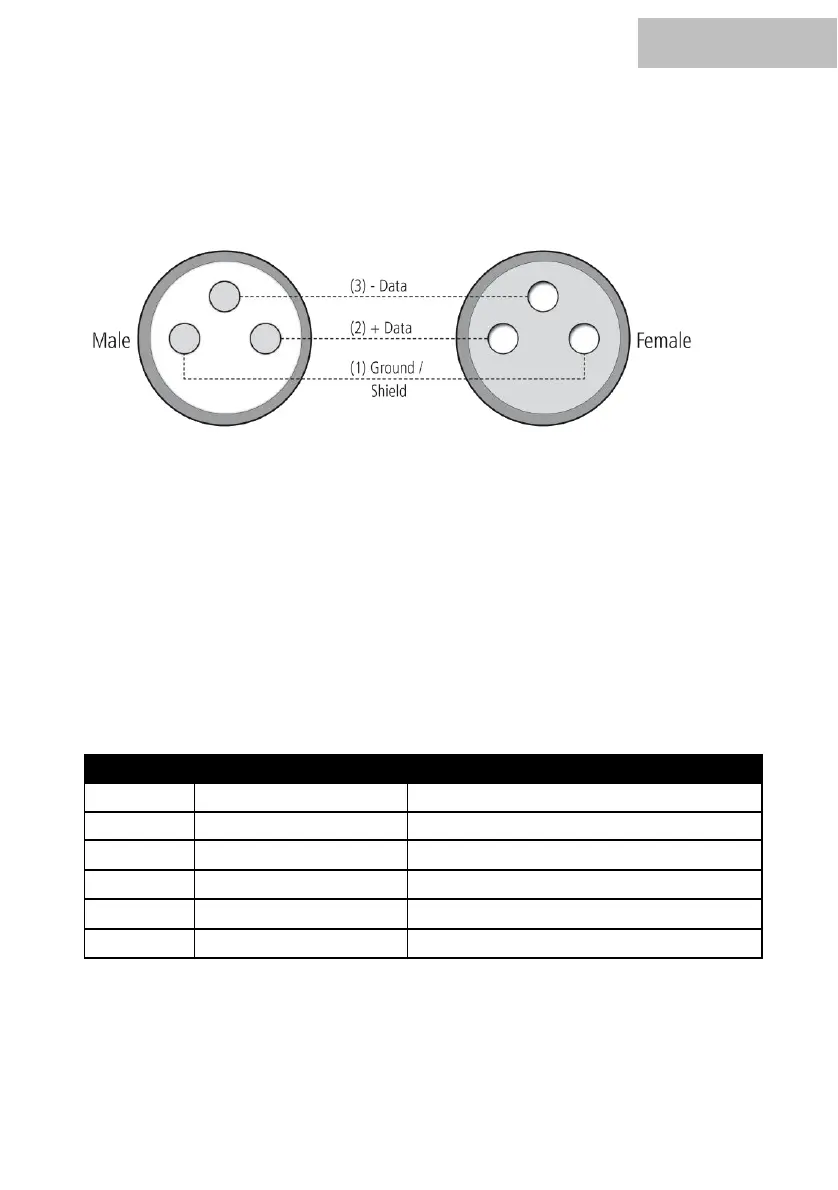

Configuration oft he DMX connector:
Resistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) oft he last fixture.
Operating mode DMX:
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX line. Always use a DMX cable with a
110 Ohm resistor for this connection. Address the device according to your DMX configuration.
The following table shows the respective DMX modes of the individual devices with the
corresponding values and functions:
6 channel-mode (d001):
Channel
Value
Function
1
001-255
Red Dimmer (dark to light)
2
001-255
Green Dimmer (dark to light)
3
001-255
Blue Dimmer (dark to light)
4
001-255
White Dimmer (dark to light)
5
001-255
Y (Amber) Dimmer (dark to light)
6
001-255
UV Dimmer (dark to light)
