Operating Mode DMX:
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX chain. Always use DMX cab-
le with a 110 Ohm resistor for this connection. Address the device according to your DMX
configuration. The device has a DMX mode with 8 channels, which is based on the following
functions:
Operation:
All connections of the device should be made before switching on. Use only high-quality
cables that are as short as possible for the connections.

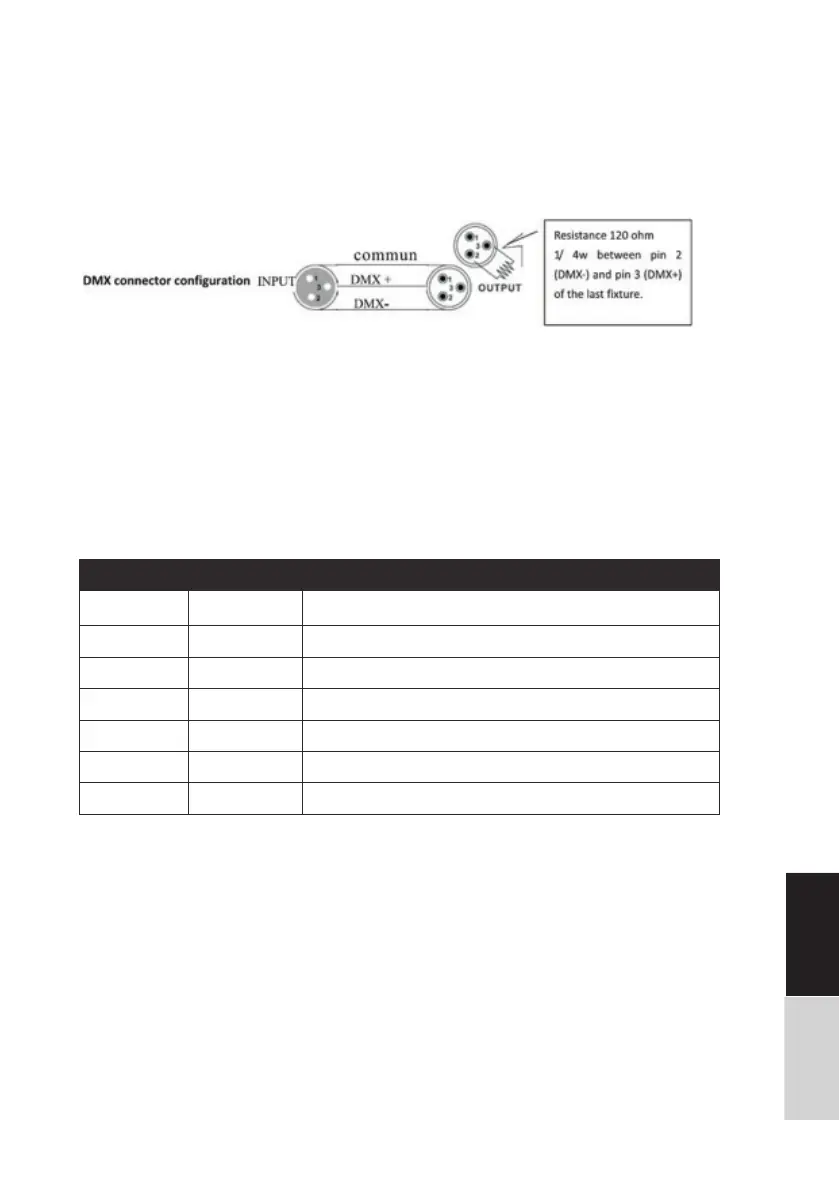

Configuration of the DMX plugs:
Channel Value Function
CH1 0~255 Dimmer
CH
2
1~255 Strobe
CH
3
1~255 Macro Function
CH
4
0~255 Macro Function spee adjust
CH
5
0~255 Red Dimmer
CH
6
0~255 Green Dimmer
CH
7
0~255 Blue Dimmer
To Next Page
