Lightspeed TOPCAT - Media Connector Features and Indicators

REMOTE REGISTRATION FOR FLEXMIKE
ADDING OR REPLACING A FLEXMIKE USING THE REMOTE
4. Open the Flexmike battery compartment and pull
the battery out (leaving it plugged in) to reveal the
registration button.

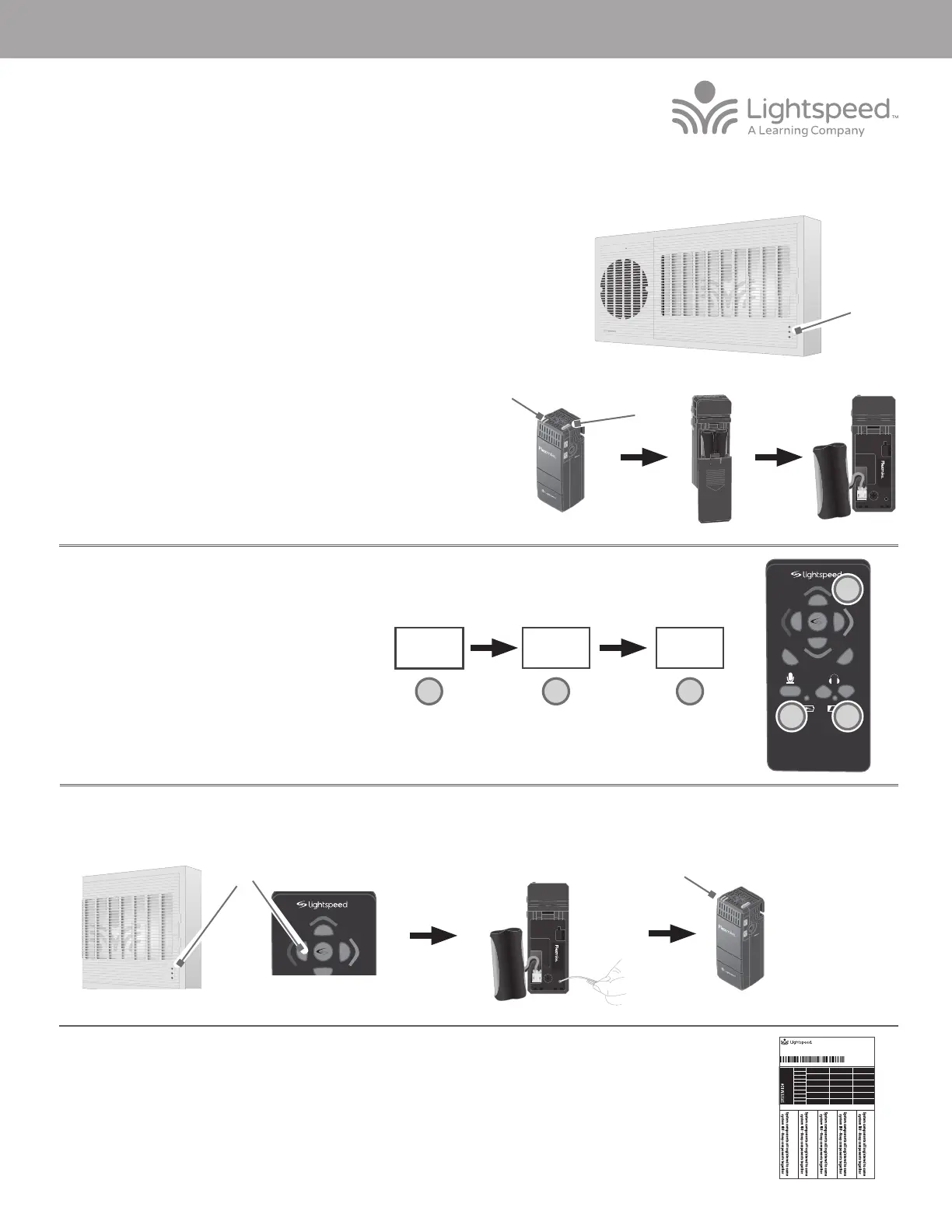

1. Start with the Topcat plugged in and powered on. To verify it is
powered on, there will be a blue power light on the front of the
Topcat.
2. If replacing a Flexmike, make sure the malfunctioning Flexmike is
powered o.
3. Power on the new Flexmike. Both microphone 1 and 2
blue lights should be blinking.
5. Determine what number microphone you wish to register, 1 or 2:
• If replacing a microphone, match the number of the bad
microphone
• If adding a microphone, the new microphone would be number 2.
6. On the remote, in rapid succession, press:
7. The center button on the remote will begin blinking and the #1 light on the Topcat Access will begin blinking.
8. Using a paperclip with the end straightened out, briefly press the registration button on the Flexmike. The 1 and 2 lights will be blinking alternately.
9. Aer several seconds, the #1 light on the Topcat will turn solid and the Flexmike will have just one light blinking (1 or 2
depending on which microphone is being replaced) and then turn solid.
10. The registration is complete. Press the center button on the remote and begin speaking into the Flexmike to verify there
is audio.
11. Place system ID number (attached to the Topcat Quickstart Guide) on the new Flexmike.
NOTE: if at any point, the Topcat or Flexmike lights begin blinking rapidly, that indicates a registration error. Turn o the
Flexmike, then repeat steps 3-8.
