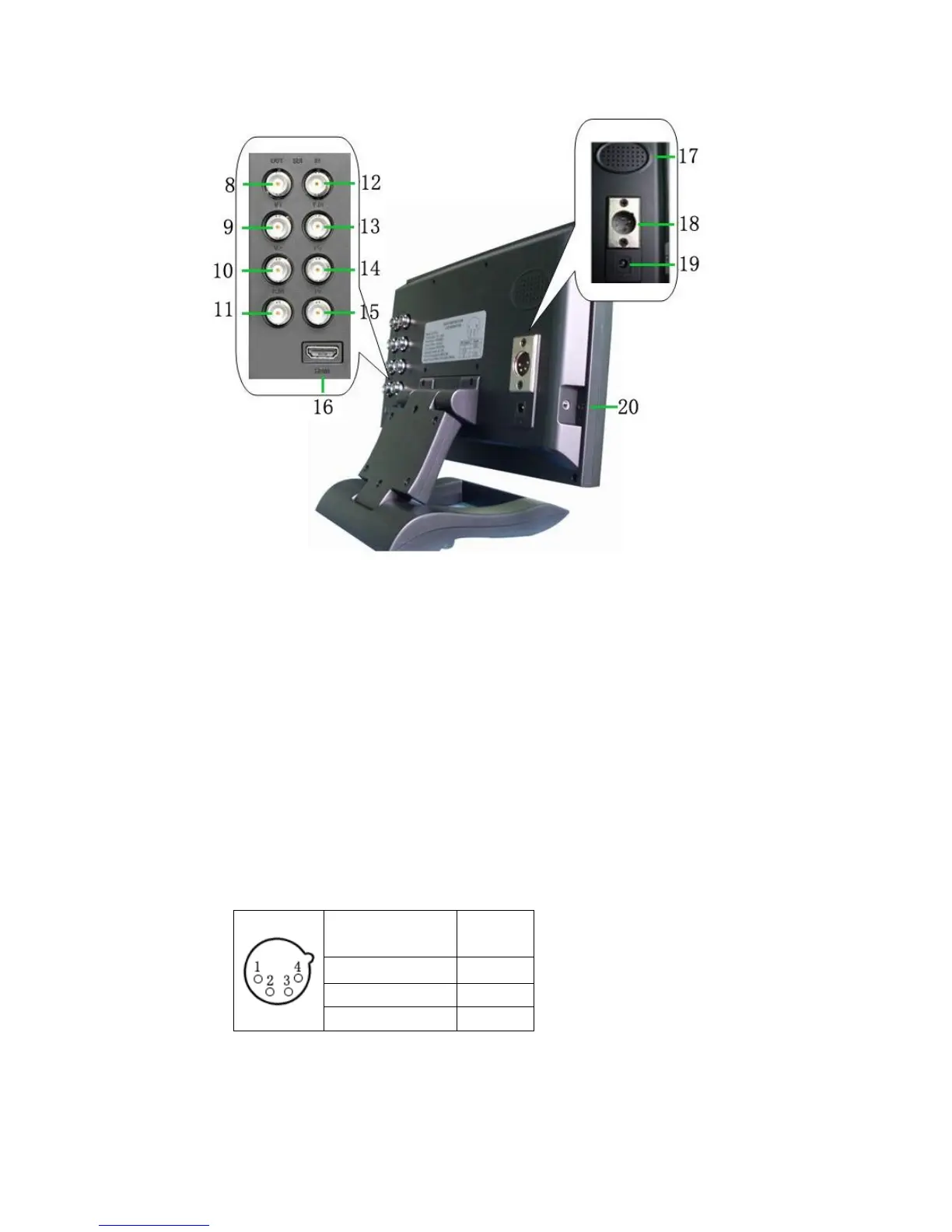

8．SDI signal output.（Optional）
9．Video 1 signal output.
10．Video 2 signal input.
11．Audio signal input.
12．SDI (Serial Digital Interface) signal input. （Optional）
13．Y signal input.
14．Pb signal input.
15．Pr signal input.
16．HDMI (High Definition Multimedia Interface) signal input.
17. Speakers
18．4-pin XLR DC power input.
XLR signal description:
Pin number
Signal
①
GND
②③
……...
④
+12V
19．12V DC power input.
20．EAR: Earphone jack
