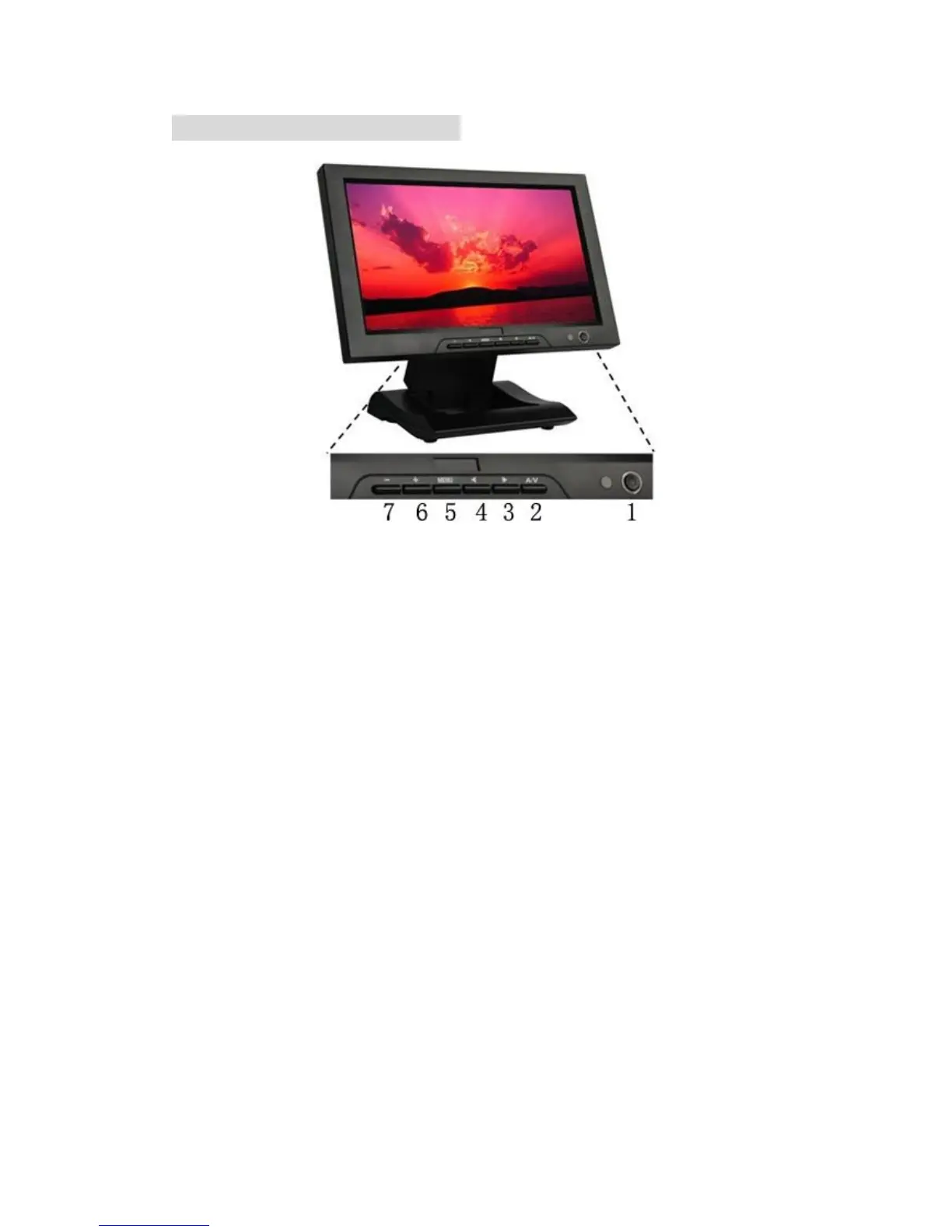

1. PRODUCT DESCRIPTION
1．Power: ON/OFF ；switch concurrence battery indicator light (red while
standby; green while working)。
2．A/V: circularly switch among HDMI, YPbPr, Video 1, Video 2, and SDI
(Note: SDI optional).
3．►: Right selection key, to select items on OSD menu.
4．◄: Left selection key, to select items on OSD menu.
5．MENU：To activate OSD (on-screen display) menu. Select switch the
contrast, brightness, color, tone, volume, clarity, MENU and Exit.
6. +: Volume up, to select items on OSD menu; Click to adjust the contrast,
brightness, color, tone, volume and clarity value increase.
7. –: Volume down, to select items on OSD menu; Click to adjust the contrast,
brightness, color, tone, volume and clarity value decrease.
*the image menu
When power on, press “+/-” key on the device, Will appear at the bottom of
the screen display of the brightness, Then press the MENU button to select
contrast, brightness, color, tone, volume, clarity, MENU and Exit. Required
by the user according to personal to User can adjust the parameters of
the selected menu with “+/-” button, according to their requirements.
