Lilytech ZL-6 A-R Series User Manual

● Working Temperature: -10～45℃
● Storage Temperature: -30～70℃
● Humidity: 5～85%RH (without dewing)
● Power Supply: AC185 ~ 245V 50HZ
● Terminal Wire: <= 2 * 1.5mm
2
or 1 * 2.5mm
2
● Load Current: 10A 250Vac（Resistive load）
● Case: PC + ABS Fire Proof
● Protection Degree: IP65 (front panel)
6. Operation Instruction
6.1 Display Indication

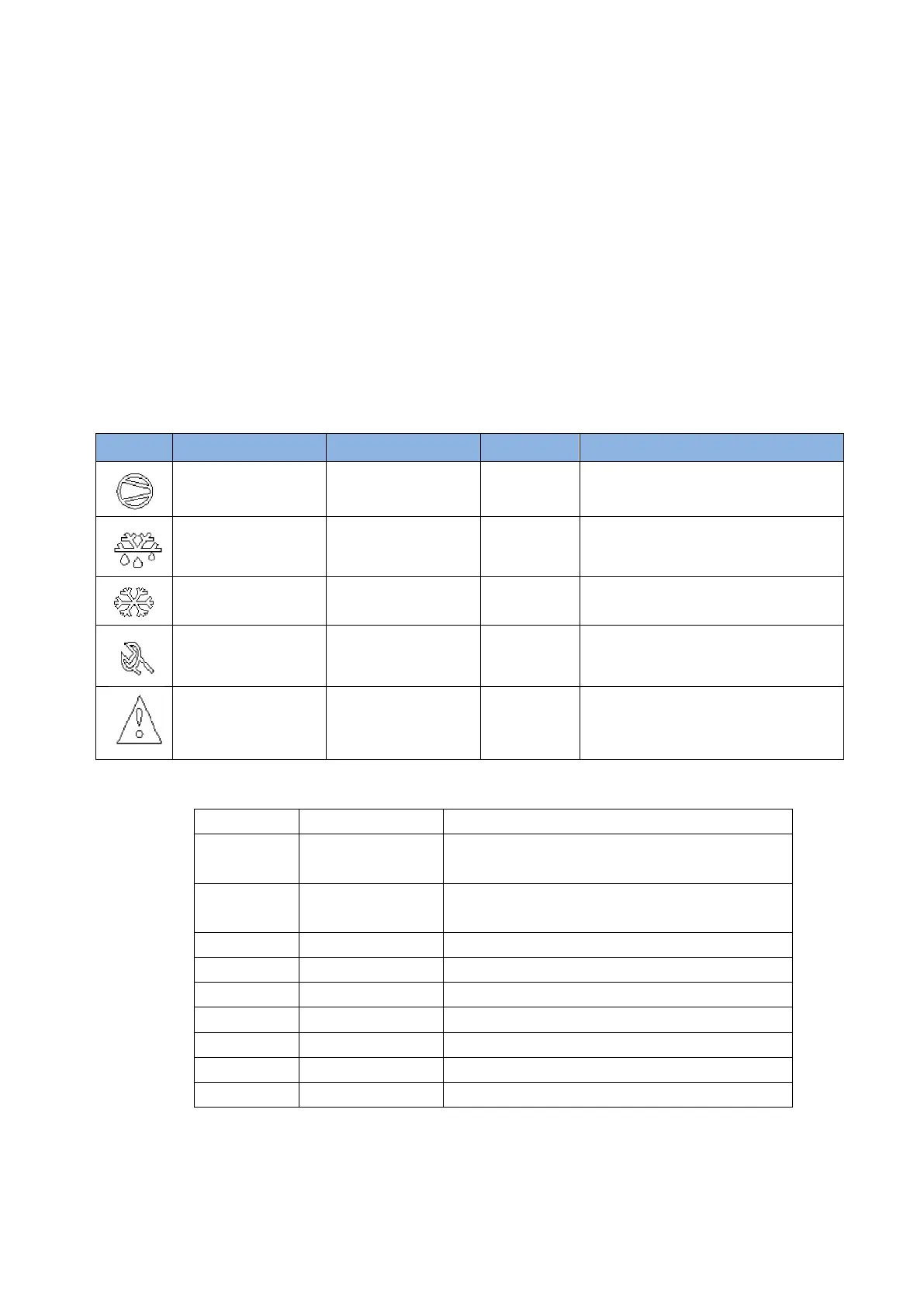

Display Sign Description
Icon Function On Off Blinking
Compressor On Off
Compressor will be on after
protection delay
Defrost Defrosting ---- Water dripping during defrosting
Temperature Setting Setting temperature ---- ----
Repairing Faulty No fault ----
Warning Warning No warning ----
Panel Digit Indication
Four red digits display the measured temperature and warning code.
No. Display Code Warning Information
1 E01
Room temperature sensor fault
( short circuit or open circuit )
2 E02
Defrosting temperature sensor fault
( short circuit or open circuit )
3 Hi Temperature exceeds the MAX value
4 Lo Temperature exceeds the MIN value
5 EE Data access error
6 Err Password error
7 iA External warning
8 dEF Defrosting operation
9 UnL Restore the default password ”1111”
6.2 Keypad Operation
6.2.1 Set refrigeration temperature
