This appliance must be earthed.
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)
The IH21 and IH3 appliances have a single supply cord.
The IH42 appliance has two supply cords.
Ventilation and air circulation:
Install this appliance on a level surface ensuring that all vents are unobstructed.
Any partitions, walls or furniture must be of non-combustible material.

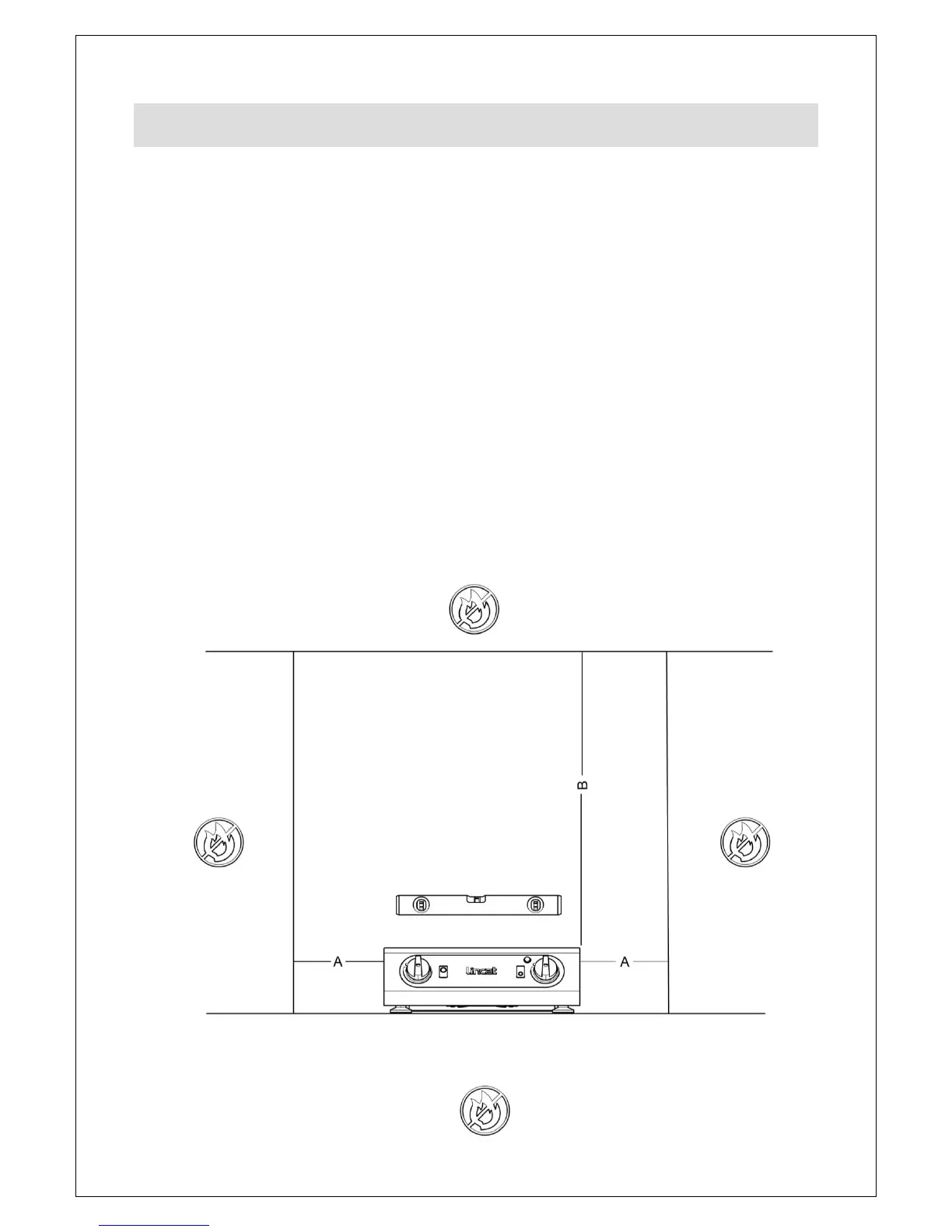

Minimum distances to walls or adjacent equipment (see image below):
IH21 and IH3; A=100mm, B=1000mm
IH42; A=150mm, B=1000mm
