Operating instructions
Refer to page 3 for instructions to fill the lu-
bricant container.
Wipe fittings clean before lubricating.
Push coupler onto fitting at slight angle and
then center coupler on the fitting. Operate
lever gun handle to lubricate taking care not
to damage seals by excessive pressure or lu-
bricant volume. After lubricating turn cou-
pler at a slight angle to release grip of the
coupler jaws
Capacities
Model 1013
Bulk capacity 16 oz. (473 cm
3
)
Cartridge capacity 14
1
/2 oz. (429 cm
3
)
Model 1145
Bulk capacity 21 oz. (621 cm
3
)

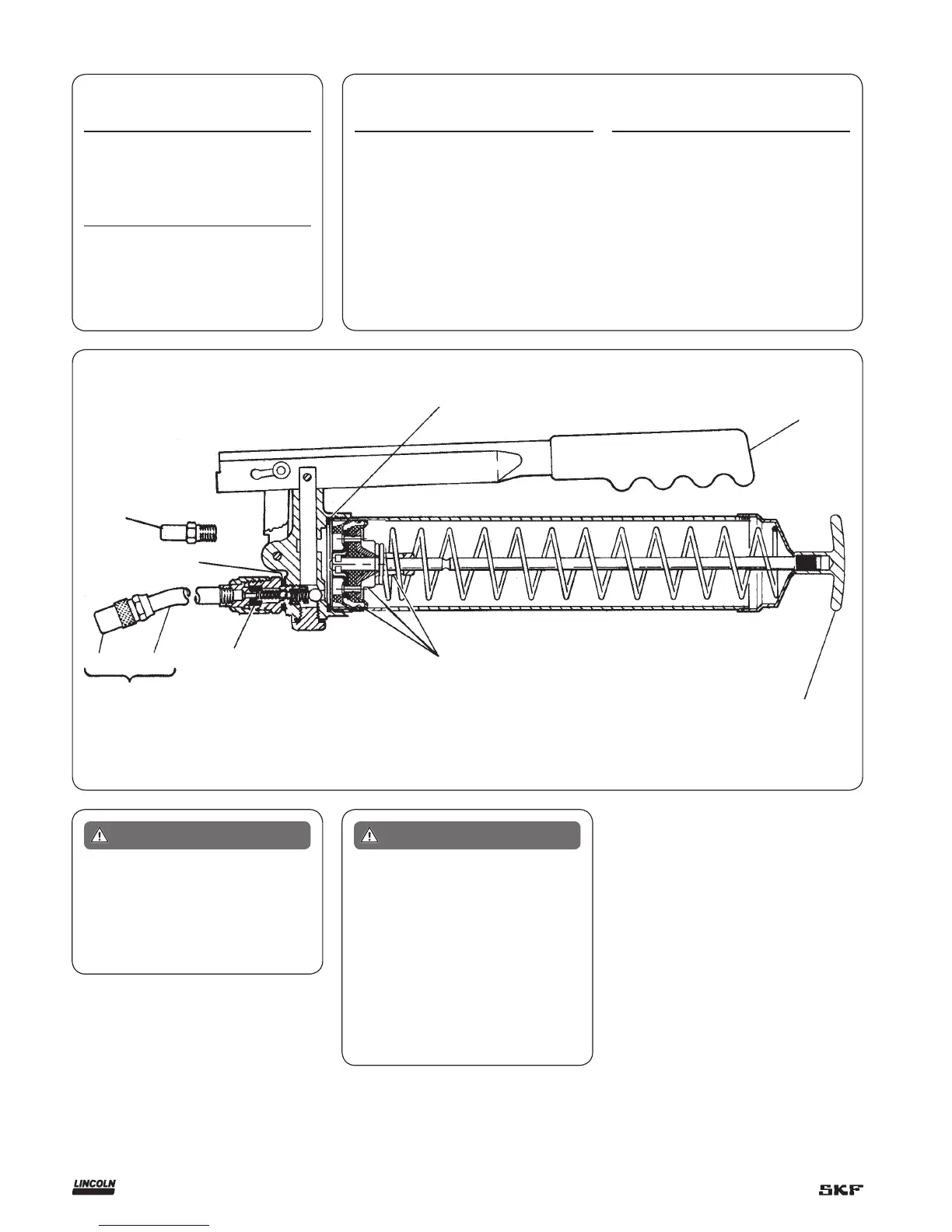

Service parts
Item no. Description Part no. Item no. Description Part no.
1 Washer gasket 48427 6 Follower assembly 93499*
2 Filler fitting 91108 7 Packing 34261
3 Barrel packing 34793 8 Hydraulic coupler with
extention
5853
4 Handle grip 68684 9 Nozzle extension 62028
5 Follower handle 272078* 10 Hydraulic coupler 5852
High pressure: 7,000 psi (483 bar) (low volume)
Low pressure: 4,000 psi (276 bar) (high volume)
3
2
10
9
8
1
7
6
5
4
Extreme pressure may cause nozzle ex-
tension or whip hose to burst. Use only
Lincoln approved hoses and follow whip
hose instructions and warnings.
Warning
Keep hands clear of the extension during
operation of the grease gun. Grease gun
can develop high pressure up to
7,000 psi (483 bar). Use safety glasses
and gloves for protection during
operation
Failure to comply may result in serious
injury or death.
Warning
* Indicates change
2
