Page Number - 4
Form 403750

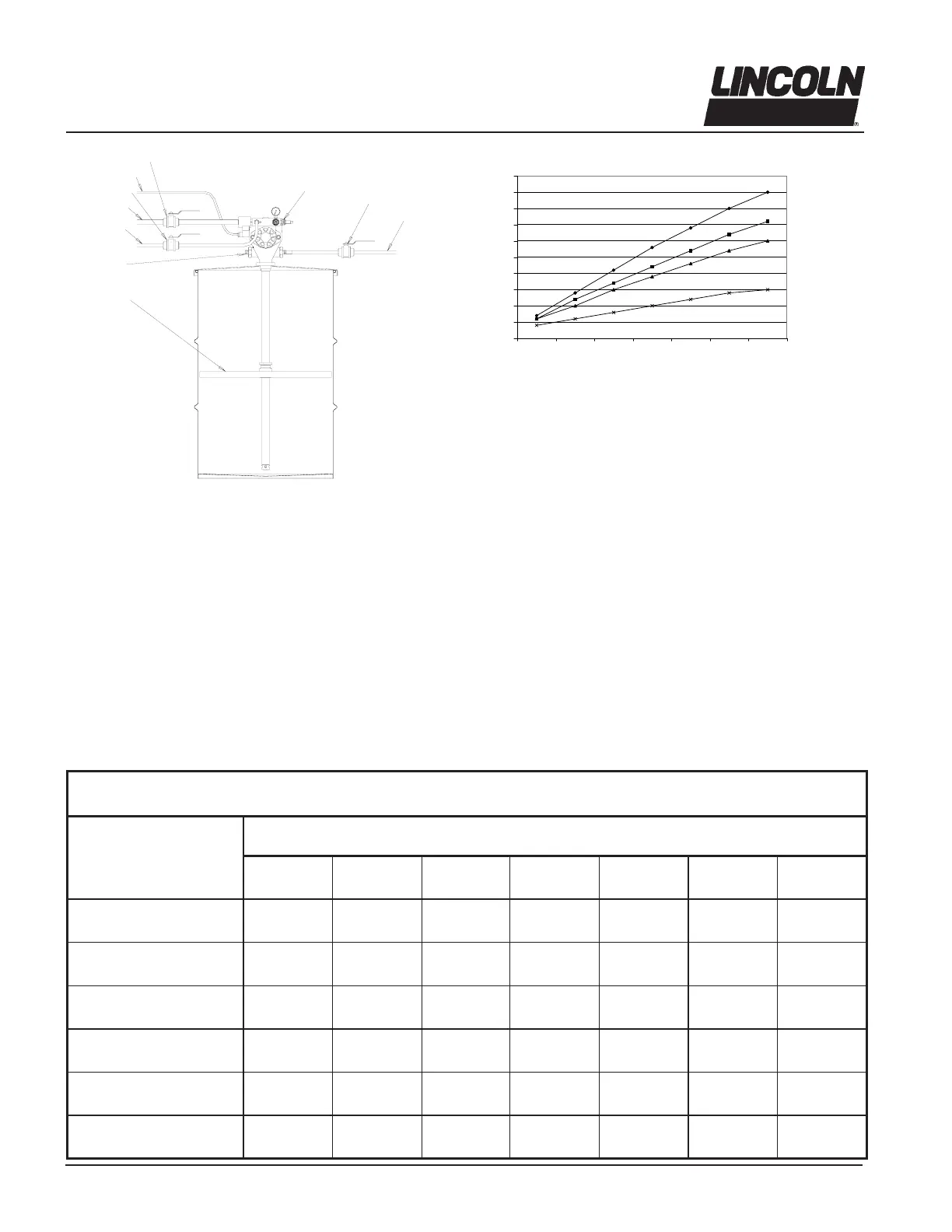

FlowMaster™ Rotary Driven Hydraulic Pump
*UHDVH2XWSXWYV+\GUDXOLF,QSXW
+\GUDXOLF)ORZ,QSXWJP
*UHDVH2XWSXWLQFKHVñPLQ
80°F (27º C)
20°F (-7º C)
0°F (-18º C)
-20°F (-29º C)
A
F
G
H
J
B
D
E
C
K
L
A - Pump Outlet Plug
B - Hydraulic Supply Line
C - Hydraulic Return to Tank
line (3/4” ID min.)
D - Supply Line Shut-off Valve
E - 24 VDC from Controller
F - Return Line Shut-off Valve
(3/4” ID min.)
G - Vent Valve Port with Restrictor
H- Outlet Shut-off Valve
J - Material Supply Line
K - Follower Plate (85492 for 120 lb. drum only)
L - Drum Cover (84616 for 120 lbs.)
HYDRAULIC PUMP PERFORMANCE SPECIFICATIONS
Test conducted with Alvania NLGI # 2 Grade Grease
Grease Output 1,000 psi
Cubic inches/min. (cm³/min.) (70 bar)
Hydraulic
Flow Input
Temperature F 1 gpm 2 gpm 3 gpm 4 gpm 5 gpm 6 gpm 7gpm
(Temperature C) (4 l/min) (8 l/min) (11 l/min) (15 l/min) (19 l/min) (23 l/min) (26 l/min)
80 7 142128344045
(27) (115) (229) (344) (459) (557) (656) (737)
40 7 142128333841
(4) (115) (229) (344) (459) (541) (623) (642)
20 6 131722283236
(-7) (98) (213) (279) (361) (459) (594) (590)
0 6 11 15 19 23 27 30
(-18) (98) (180) (245) (310) (376) (442) (491)
-10 5 7 8 9 10 12 13
(-23) (82) (115) (131) (148) (164) (197) (213)
-20 4 6 8 10121415
(-29) (66) (98) (131) (164) (197) (229) (245)
