IMPINGER
®
ASSEMBLY INSTRUCTIONS

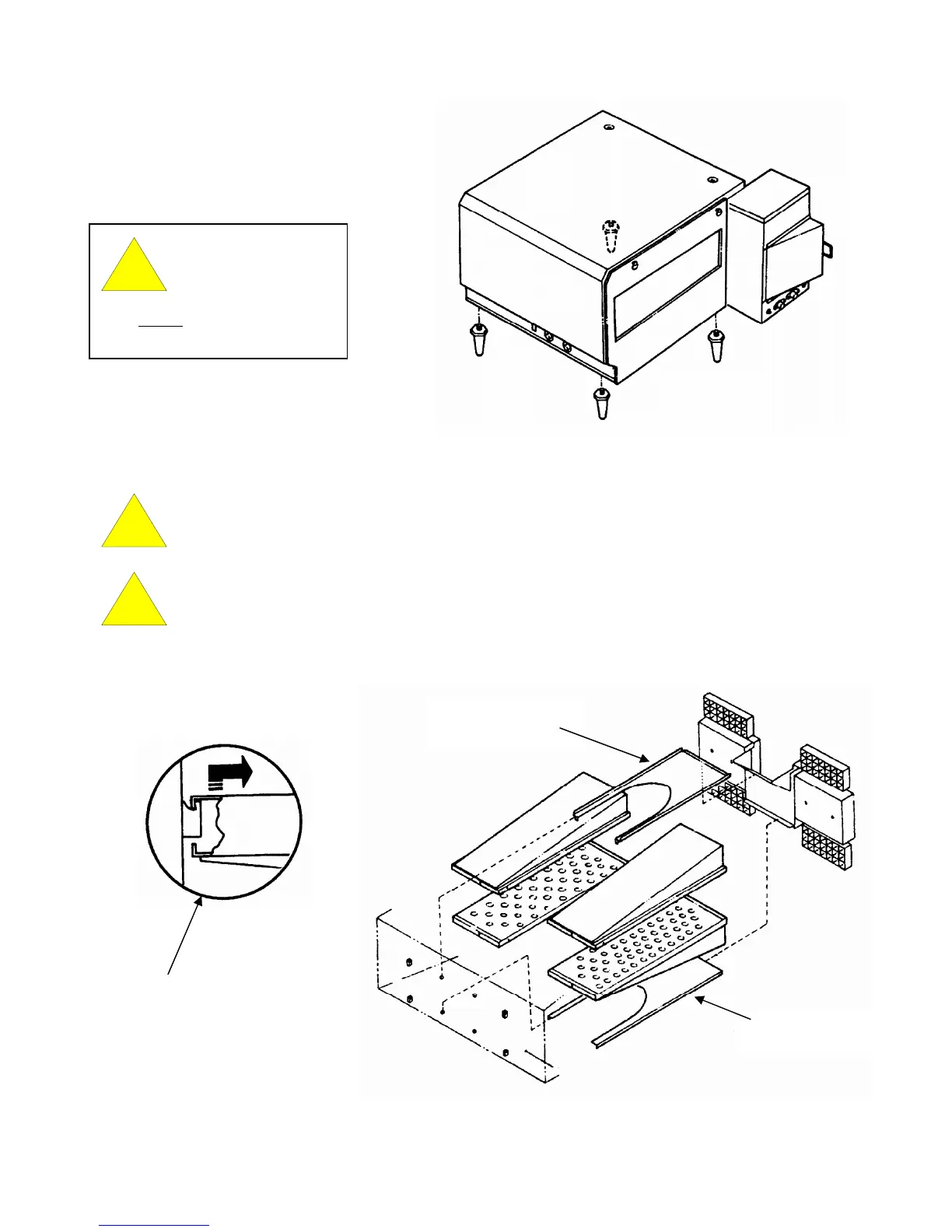

INSTAL LEGS AS SHOWN
!
WARNING:
Legs MUST be installed to insure
proper operation!
!
CAUTION:
Oven must be operated on approved bases only.
Bottom unit must always be mounted on legs provided.
!
CAUTION:
Before applying power to oven, check to insure that the four (4)
finger assemblies and two (2) air duct panels (upper & lower) are
properly seated and have not become dislodged during shipment.
FRONT OF
FINGER ASSEMBLY
PROPERLY INSTALLED
Air Duct Panel
(Upper)
Air Duct Panel
(Lower)
INSIDE FRONT WALL OF OVEN
