Page Number - 4
Form 403175
ADJUSTING SPRING TENSION
To prevent premature power spring failure, spring
tension should be adusted so that it requires at
least two full turns of the reel sheave before the
spring is wound tight.
Should less spring tension be desired, pull hose out
from roller outlet to provide slack and latch reel.
Unwind one loop of hose from reel. Pull excess hose
out through roller outlet and unlatch reel to retract
hose.
Check tension and repeat above procedure until
desired tension is obtained.
ATTACHING CONNECTING HOSES
To prevent damage to connecting hose when
installing hose to reel, sufficient clearance must be
provided from outside edge of sheave.
See Figure (2). Remove U-keeper and inlet adapter
from swivel body.
If O-Ring (261187) is damaged, replace at this time.
Assemble swivel adapter to connecting hose.
Reconnect inlet adapter to swivel body and replace U-
keeper
Connect other end of connecting hose to material
supply line source or connection

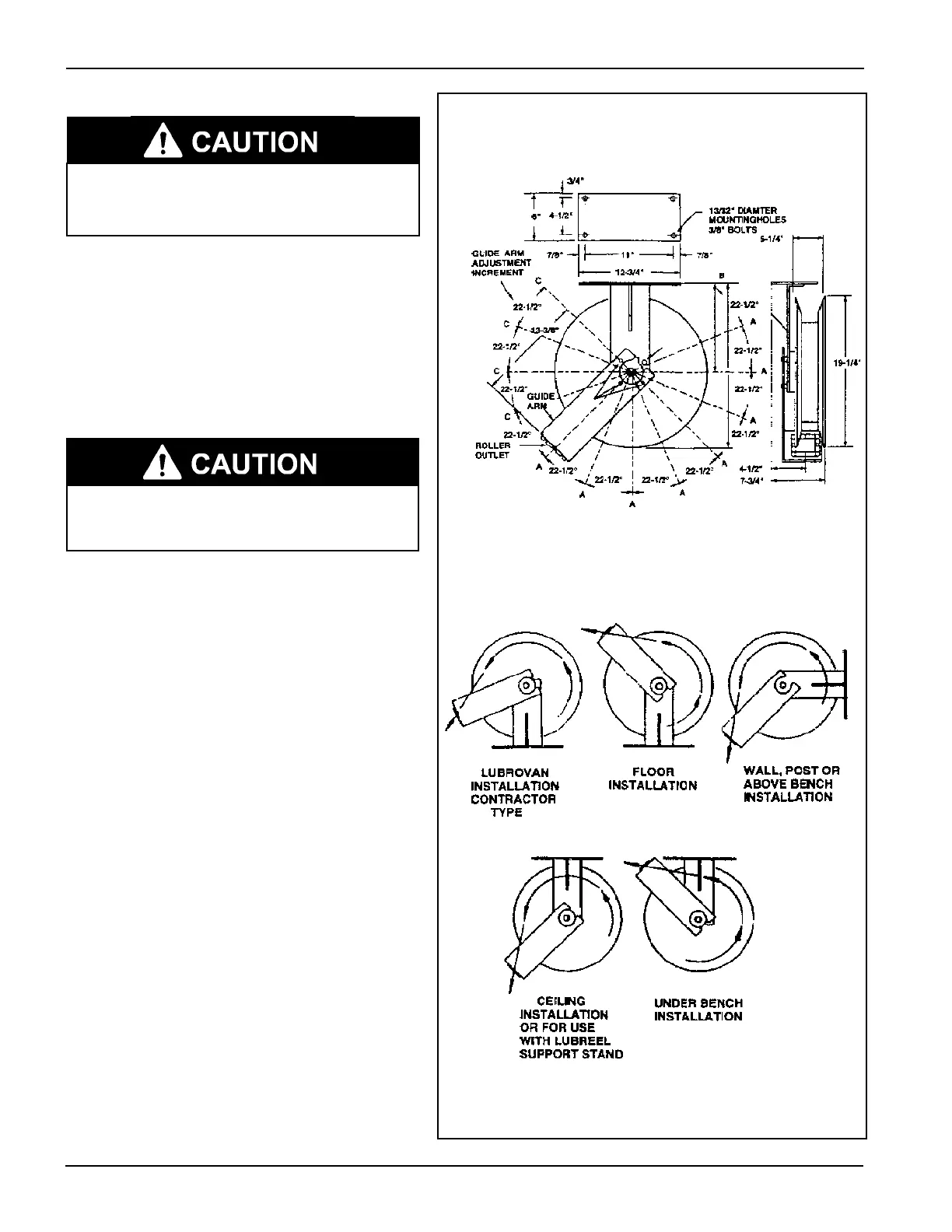

FIGURE (3) REEL INSTALLATION AND ADJUSTMENT
REEL INSTALLATION AND ADJUSTMENT
See Figure (3). The guide arm may be positioned in
22-1/2 degree increments as shown. For ease of
operation and increased hose life, the guide arm
should be positioned to minimize hose strain as the
delivery hose is pulled tnrough the roller outlet.
Three studs must be used to securely attach the
guide arm. It may be necessary to change the
position of the hex head screw and one stud in order
to obtain the desired guide arm position.
The hose clamp must be relocated if the guide arm
is in position B or C. Refer to SERVICE PARTS for
hose clamp location
