Page Number - 3
Form 403175
N. Assemble hose clamp to sheave assembly
(237680) with carriage bolt (237738). Secure with
nut (51010).
O. Assemble latch pawl (237623) to pawl pin on
power spring assembly (248493) and secure with
washer (48327) and TRU-ARC (66316).
P. Assemble extension spring (237895) to latch pawl
(237883) and carriage bolt (237739). Secure with
locknut (51304).
INSTALLATION
DELIVERY HOSE INSTALLATION
(MAXIMUM SPRING TENSION)
For smoother operation during retraction and to increase
hose life, detalc hose by wiping entire hose length with a
light lubricating oil before installing on reel.
Assemble outlet adapter to hose and tighten securely. Use
teflon tape on threads to prevent leaks.

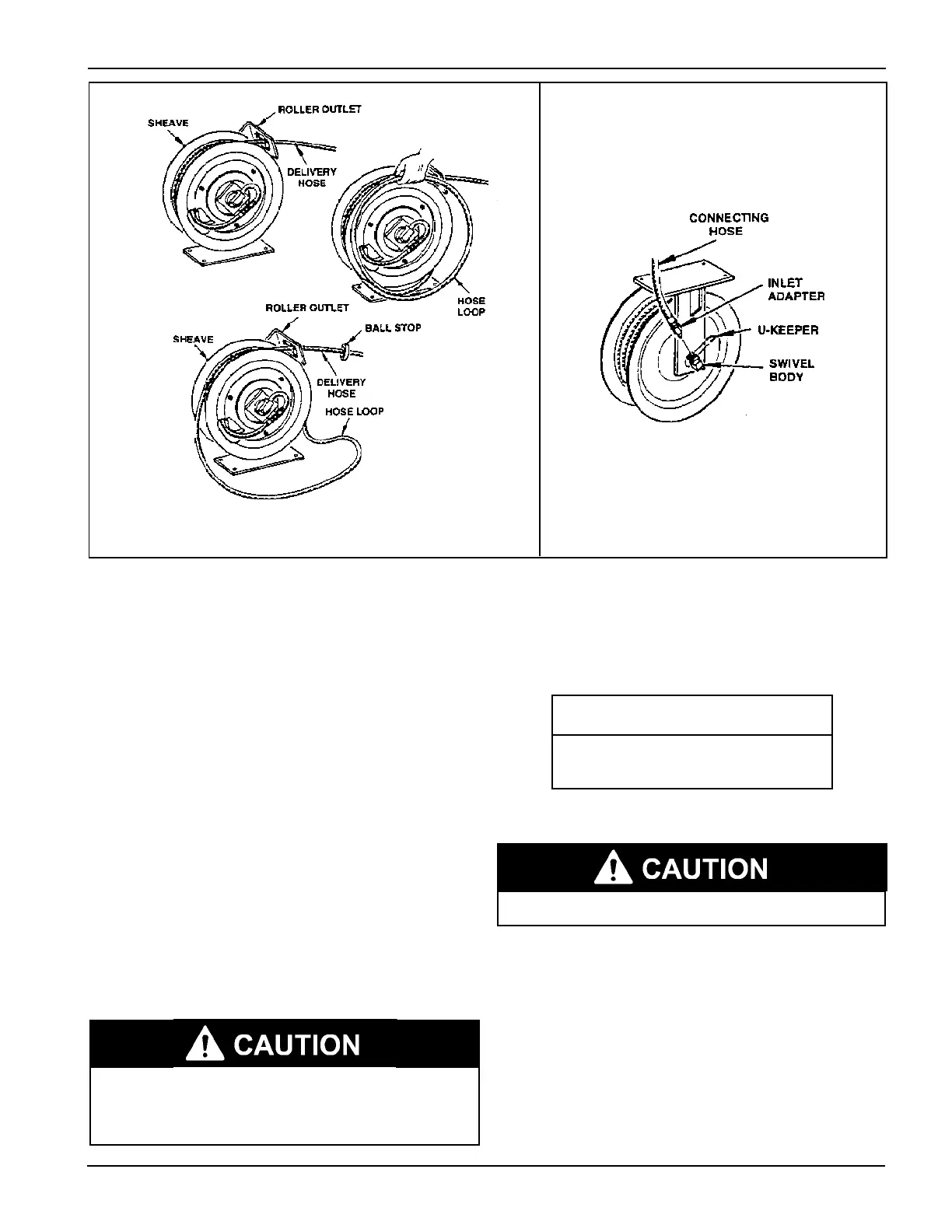

See Figure (1). Insert hose end with outlet adapter through
roller outlet and secure to axle head with U-keeper. Make
sure seal is installed correctly in axle before assembling.
FIGURE (1) DELIVERY HOSE FIGURE (2) CONNECTING HOSE
To prevent damaging hose connections and/or compo-
nents when pulling hose from reel, pull on the hose itself
and not on the control valve or swivel. Do not pull or jerk
on the hose when fully withdrawn from the reel.
From open side of reel, loop entire length of hose onto reel in
a clockwise direction. Pull hose out through roller outlet to
wind power spring. When hose is completely extended, latch
reel to prevent it from unwinding.
Continue to add loops of hose and pull out hose until power
spring winds tight.
IMPORTANT
INSTRUCTIONS
Perform the following instructions as
stated to correctly set the power spring
for maximum tension.
Allow reel to retract two full revolutions and latch reel.
Carefully unloop remaining hose from reel.
To avoid damaging reel components, always make sure
hose clamp is properly installed.
Position hose clamp so that approximalely 1/2 loop of hose
remains on reel and latching does not occur when hose is
fully extended.
While holding hose, allow reel to retract hose until desired
height from floor is obtained, then latch reel.
Slide ball stop over free end of hose and position slightly
below roller outlet. Tighten screws to secure ball stop to
hose.
Power spring is now set to maximum tension.
To Next Page
