General site installation
Condensate drain connection

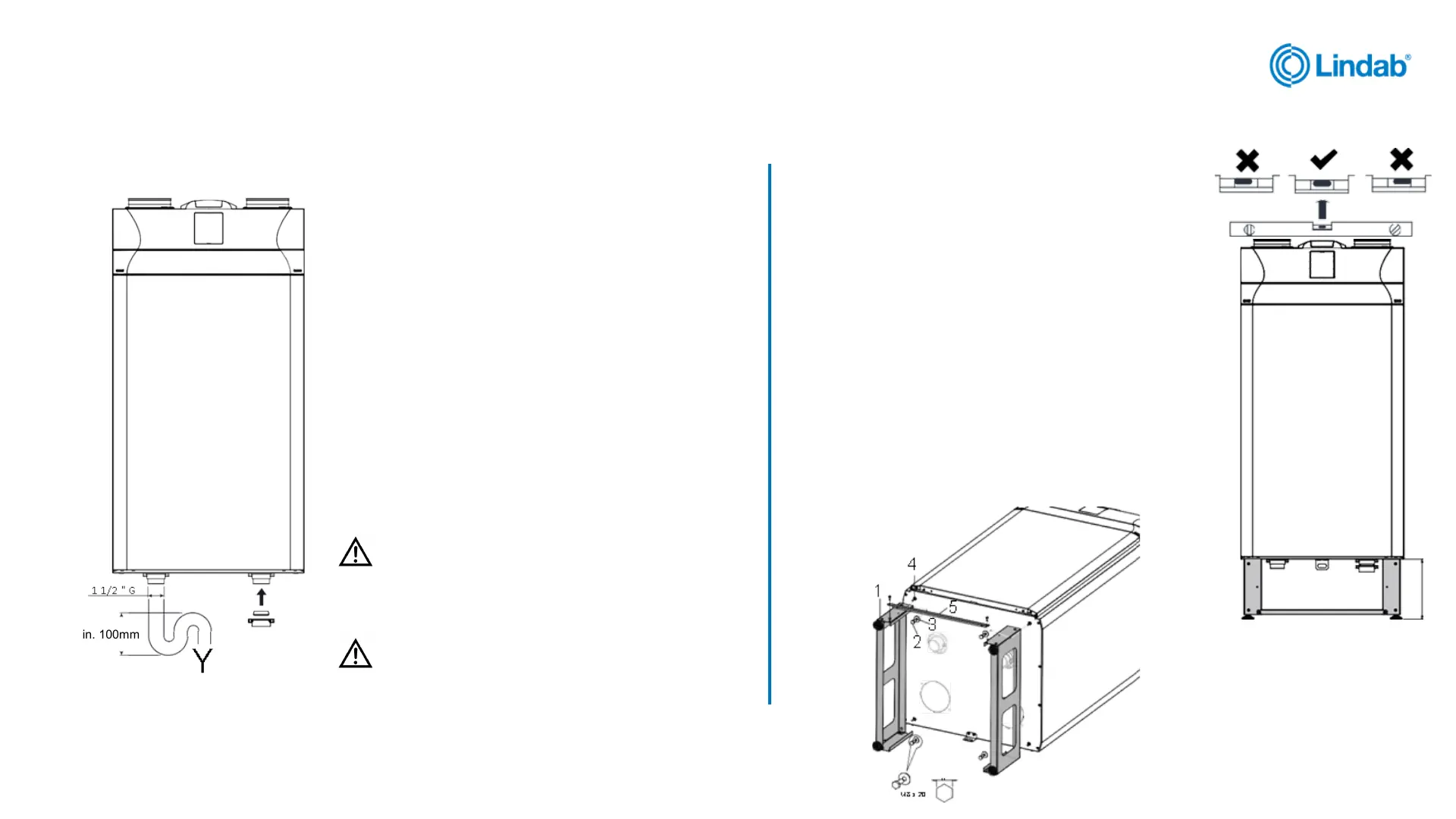

The connection for the condensate drain
is located underneath the appliance.
Connect the condensate drain to the
domestic sewage system using a duct or
pipe (siphoned).
Condensate must be drained from a
minimum height of 100mm.
PLEASE NOTE: If your RHR is right-
handed, the connection shown on the
illustrations must be inverted.
ATTENTION! Make sure that the siphon
of the condensate drain is fully connected
to the domestic sewer system and is
always full of water.
ATTENTION! Make sure that the end of
the siphon is at least 100mm below the
water level
7
Min. 100mm
Floor installation of appliance
The RHR Can be installed using floor
stands accessories.
1. Fix the Fix the stands (1) using the
screws (2) and washers (3) supplied
with the unit feet, at the bottom of
the RHR (4). Fasten the crossbar
(5) to the support (1).
2. Lift the unit and position it vertically
3. Use the spirit level to check the
position of the RHR
