Positioning of the Amplifier
The amplifier should be positioned in such a way that cooling is not restricted
and away from direct sunlight. Air is drawn into the underside of the unit and
out of the rear and out of the top at the back. It is important that you do not,
for instance, stand the unit on or put loose paper underneath or on top of the
amplifier as this could cover the intake grills and restrict the cooling. Likewise
please ensure that the rear of the unit is not obstructed.

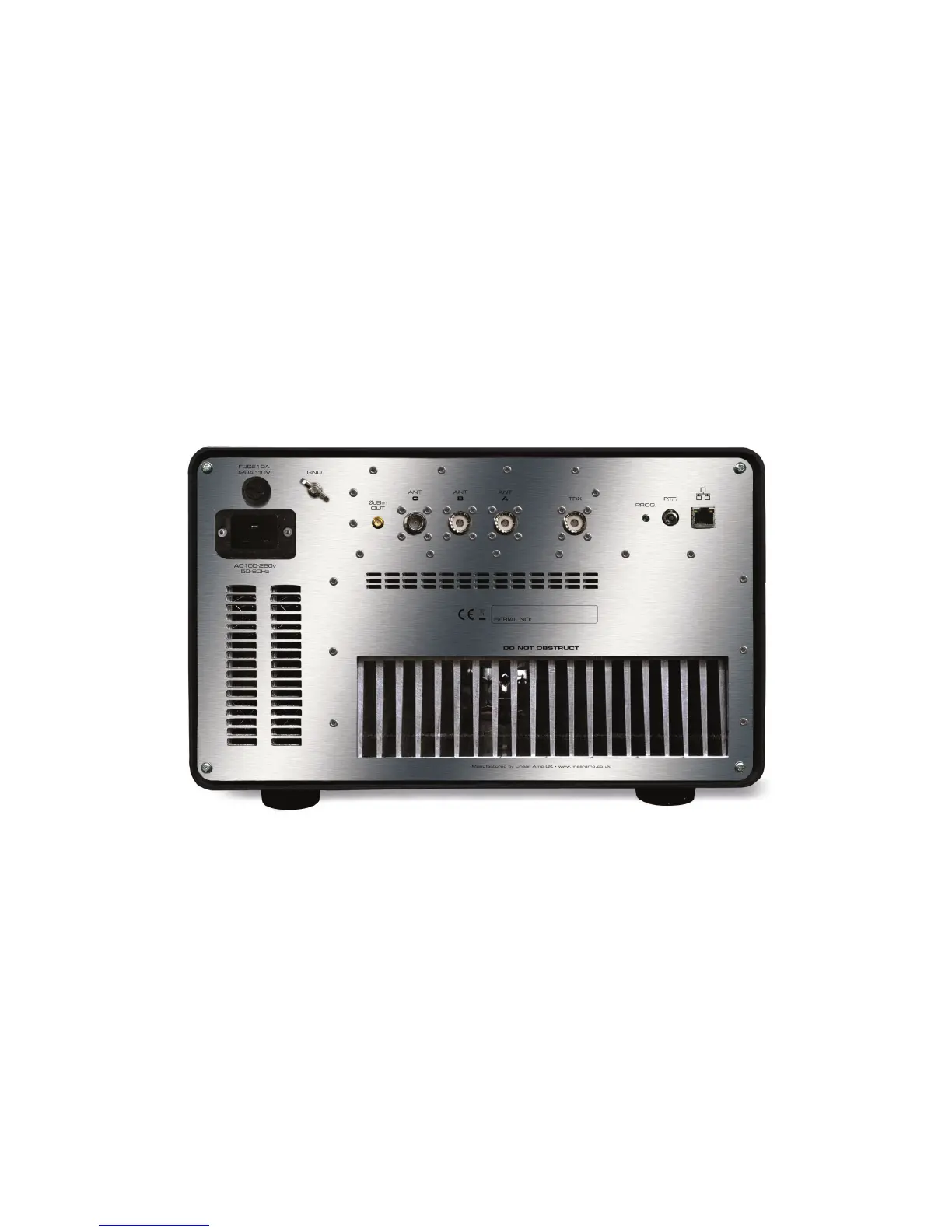

Connecting up
Connect the supplied mains power lead (note the amplifier is shipped with a
10A fuse fitted assuming operation will be on 200-260V AC. If you are
operating at 120V then you will need to fit the 20A spare fuse supplied and
ensure your supply is rated appropriately)
Connect your transceiver to the socket marked TRX.
Connect antenna(s) as required to the sockets marked A, B, C.
Take a ground on transmit connection from the transceiver to the phono
connector marked PTT (see PTT below).
Connect a Network cable (optional).
Connect 0dBm output (optional).
