GSLG-A Slide Gate Operator Installation Guide - 21 - P1222 Revision X5 6-22-2011

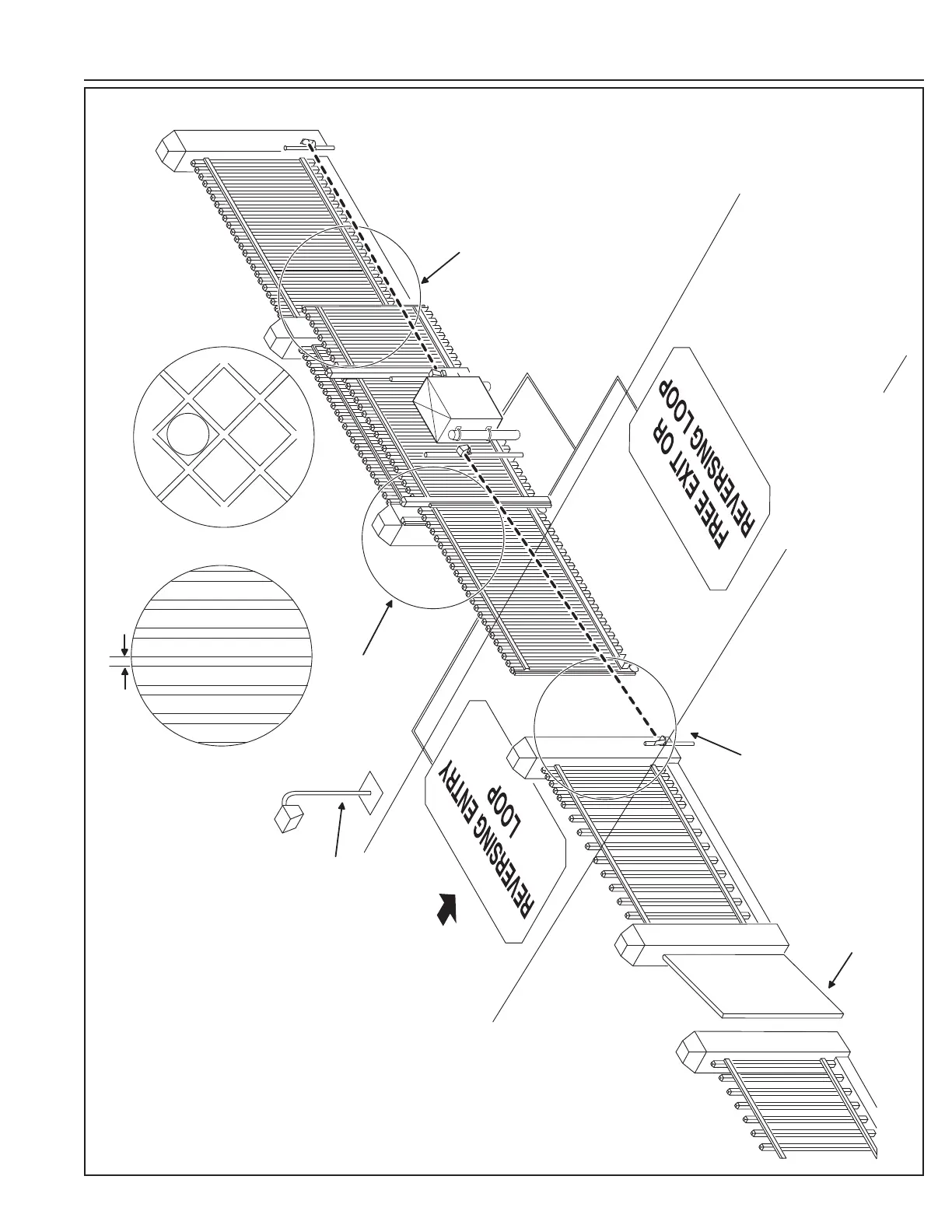

Picket Gate Installation
CARD READER
ON STAND
PICKETS SPACE
SMALLER THAN
2 1/4"
MESH WITH OPENINGS
SMALLER THAN 2 1/4"
TO A MINIMUM HEIGHT
OF 48" ABOVE GROUND
OVER ENTIRE GATE
LENGTH
SEPARATE PEDESTRIAN
GATE REQUIRED
7 FT. MINIMUM DISTANCE
AWAY FROM GATE
POSSIBLE LOCATIONS FOR CONTACT AND NON-CONTACT DEVICES
SHOWN ABOVE. OTHER AREAS OF ENTRAPMENT MAY EXIST DEPENDING
ON EACH SPECIFIC INSTALLATION.
REFER TO INSTALLATION MANUAL FOR ADDITIONAL DETAILS
FOR THE INSTALLATION AND WIRING OF LOOPS, EDGES, AND
PHOTOEYES.
EDGES SHOWN ON LEADING AND
TRAILING EDGES OF GATE, AND
ON POSTS
ENTRAPMENT
ZONE #3
(BEHIND GATE)
PHOTOEYE BEHIND
GATE
ENTRAPMENT ZONE
#2 (BOTH SIDES OF GATE)
ENTRAPMENT
ZONE #1
REVERSING PHOTOEYE
ACROSS DRIVE
OR
