GSLG-A Slide Gate Operator Installation Guide - 22 - P1222 Revision X5 6-22-2011
Track Gate Installation

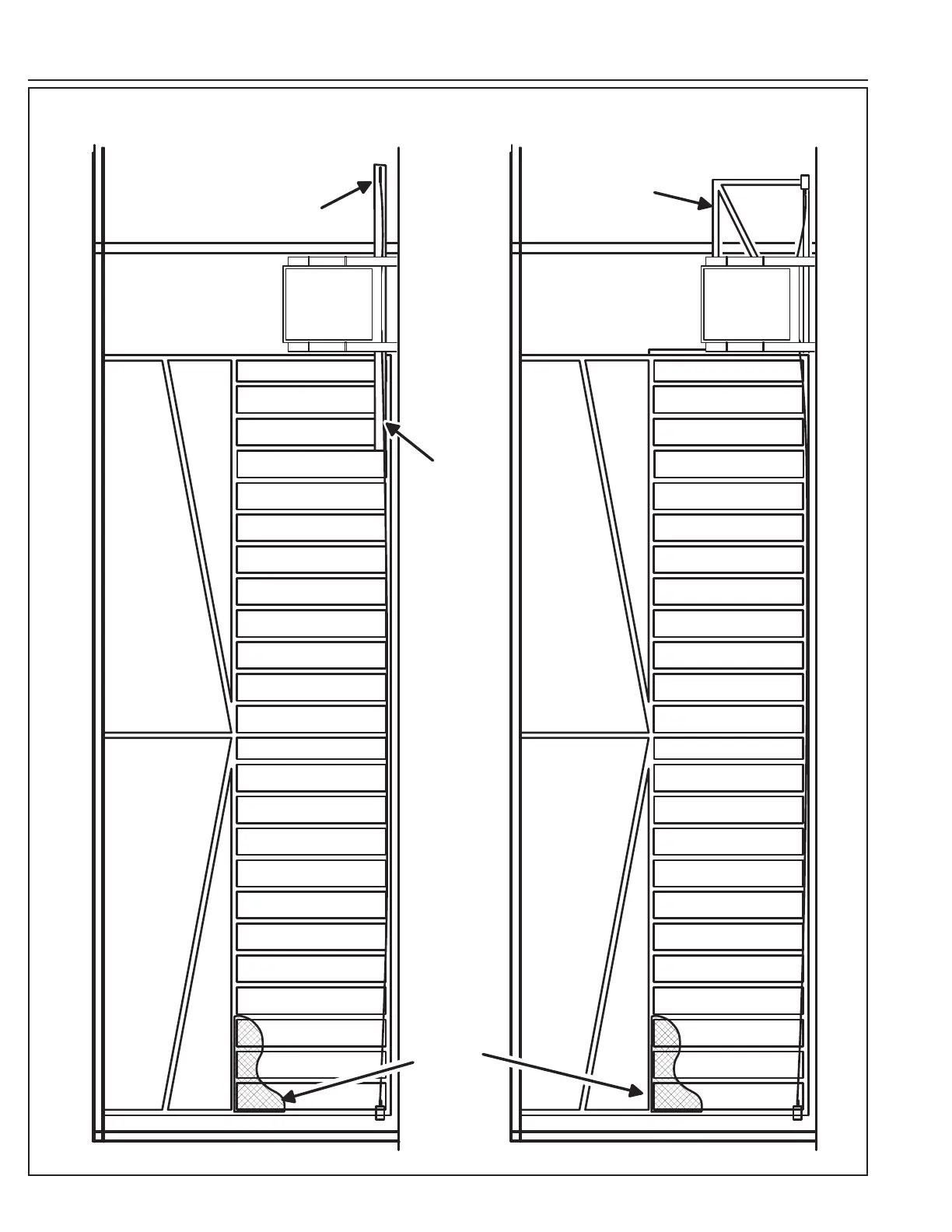

OVERHEAD TRACK GATE WITH ADDED C-CHANNEL FOR GATE BRACKET ATTACHMENT
OVERHEAD TRACK GATE WITH ADDED BUSTLE FOR GATE BRACKET ATTACHMENT
COVER GATE WITH FABRIC WITH OPENINGS SMALLE THAN
2-1/4" TO A MINIMUM HEIGHT OF 72" ABOVE GROUND. ON PICKET
STYLE GATES, IF PICKETS ARE SPACED LESS THAN 1-1/4" APART
MESH IS OPTIONAL
BUSTLE ATTACHED TO
END OF TRACK GATE
FOR GATE BRACKET
(BY OTHERS)
GATE BRACKET
BOLTED TO
CHANNEL
(BY OTHERS)
C-CHANNEL ATTACHED TO BACK
END OF TRACK GATE (BY OTHERS)
NOTE: BOTH TYPES OF ATTACHMENTS
TO BACK END OF GATE WILL WORK WITH
ROLLER GATES AS REQUIRED
