HSLG Slide Gate Operator Installation Guide - 31 - P1220 Revision X8 6-22-2011
Three Phase Controller Parts List
1
2
3
4
5
6
7

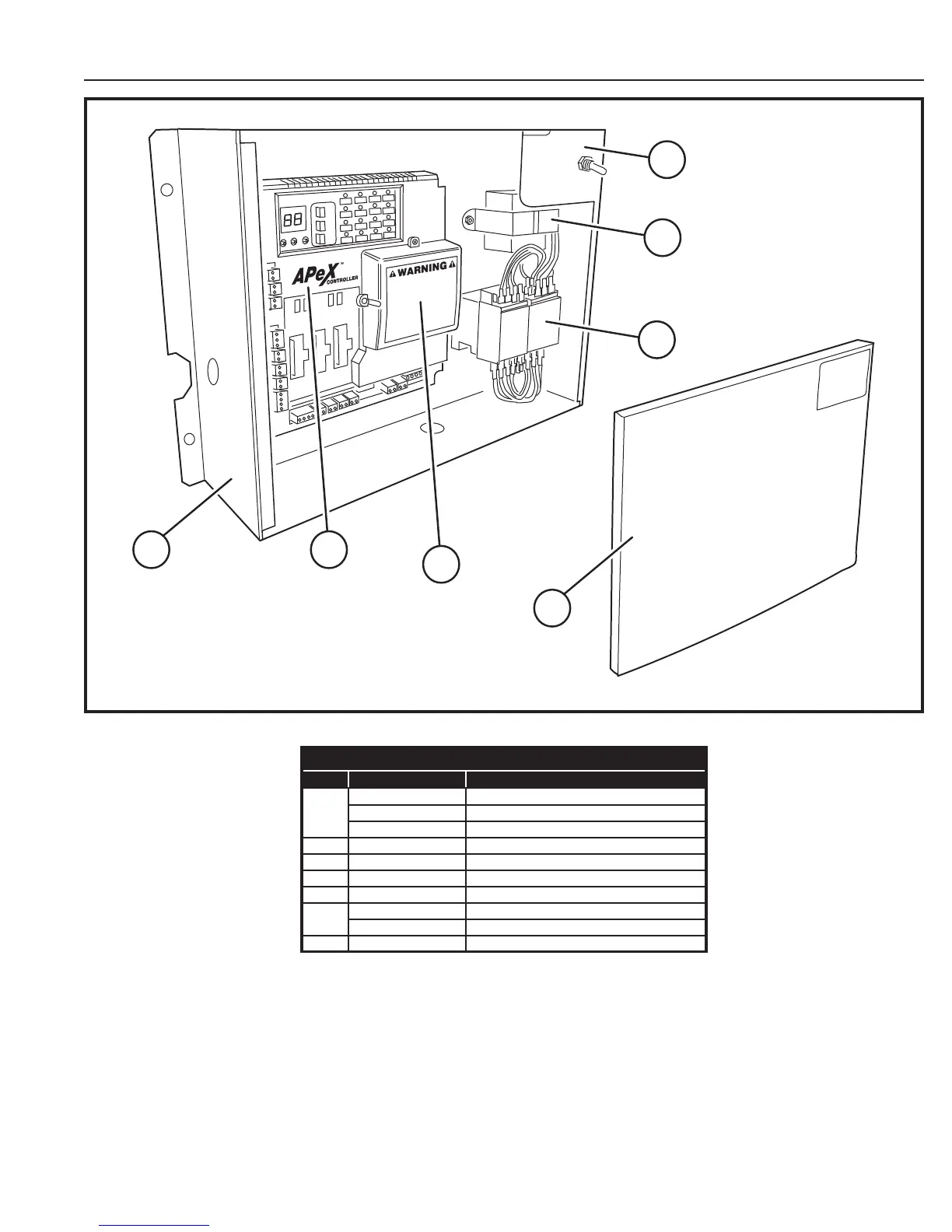

THREE PHASE CONTROLLER MECHANICAL PARTS LIST
REF. # PART # DESCRIPTION
1
2520-530 Control Box Assembly (Complete) 208/230V
2520-531 Control Box Assembly (Complete) 460V
2110-840 Control Box Assembly (Box only)
2 2100-582 Cover
3 2500-2393 Apex Module
4 2500-1980 Motor Board
5 2500-034 Power Switch
6
2500-767 Transformer 208/230V
2500-768 Transformer 460V
7 2500-2084 Contactor
