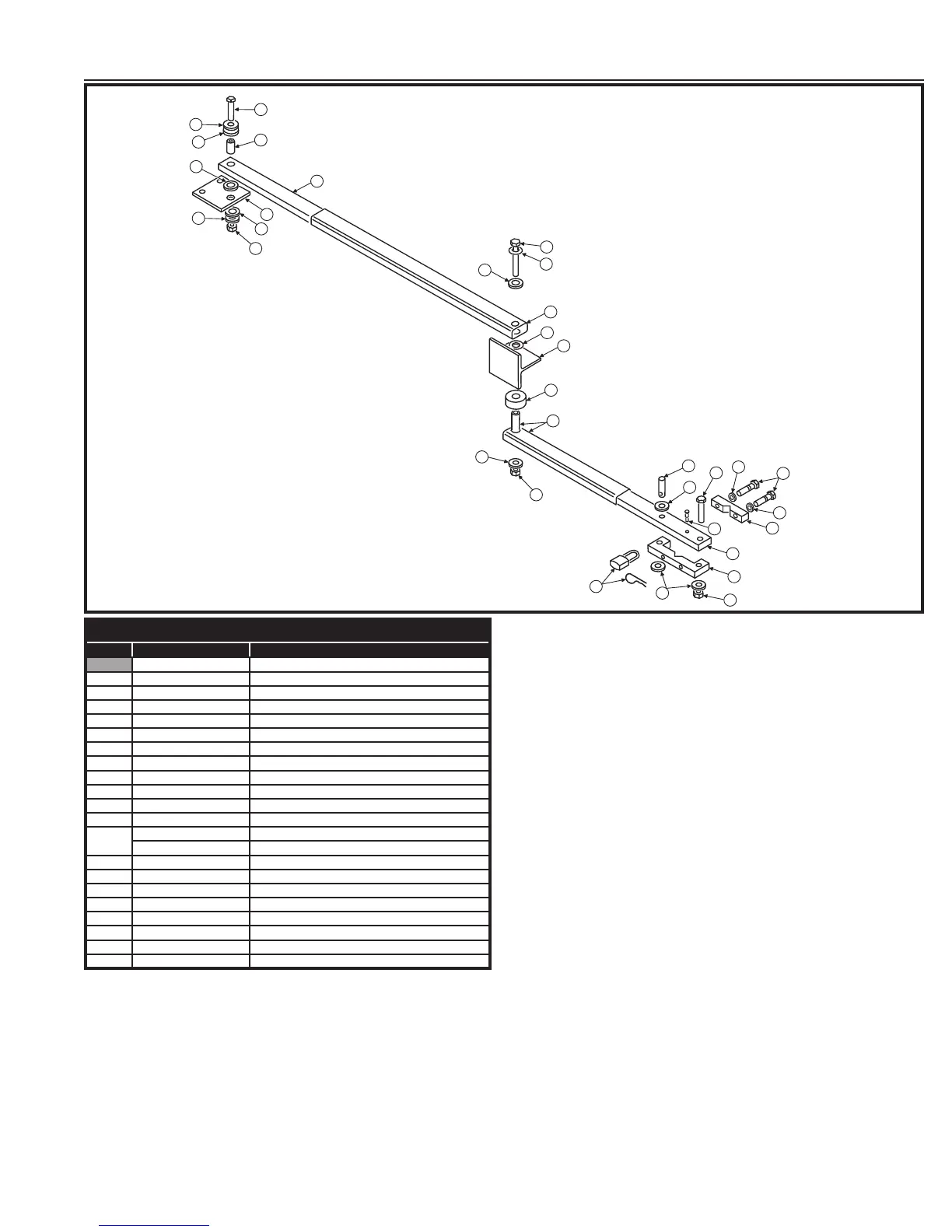

Linear SWC - SWR, SWC, SWD Gate Arm Assembly Exploded View

SWR • SWC • SWD Swing Gate Operator Installation Guide - 29 - 227965 Revision X22 8-11-2011
GATE ARM ASSEMBLY MECHANICAL PARTS LIST
REF. # PART # DESCRIPTION
2120-493 Complete Arm Assembly
1 2100-2068-PLT Threaded Crank Block
2 2100-2069-PLT V-Block for Crank Block
3 2100-2067 Crank Extension Solid Bar
4 2110-810 Crank Extension and Spacer Assembly
5 2100-1924-PLT Overtravel Stop
6 2300-969 Plastic Elbow Offset Spacer
7 2100-2072 Gate Arm Link Tube
8 2100-2071 Solid Link Bar
9 2200-964 Gate Plate Tube Spacer
10 2100-2070 Gate Plate
11 2400-511 Disconnect Pin
12
2400-351 Disconnect Hair Pin
2200-034 Disconnect Lock (optional)
13 2400-512 Hex Head Screw, grade 8, 1/2-13 x 2-1/2”
14 2400-505 Hex Head Screw, grade 8, 1/2-13 x 2”
15 2400-513 Lockwasher, grade 8, 1/2”
16 2400-506 Flatwasher, grade 8
17 2300-238 Nylon Washer
18 2400-508 Hex Head Screw, grade 8, 1/2-13 x 3-3/4”
19 2400-507 Nylon Insert Locknut, grade 8, 1/2-13
20 2400-510 Shoulder Bolt for Rain Cap, 1/4-20
1
20
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
16
17
19
16
16
19
16
17
13
17
17
16
19
SWR, SWC, SWD Gate Arm Assembly Exploded View
