CHAPTER 3 CHASSIS LH50DU SERVICE MANUAL19.1
CHAPTER 3 CHASSIS PAGE. 3-

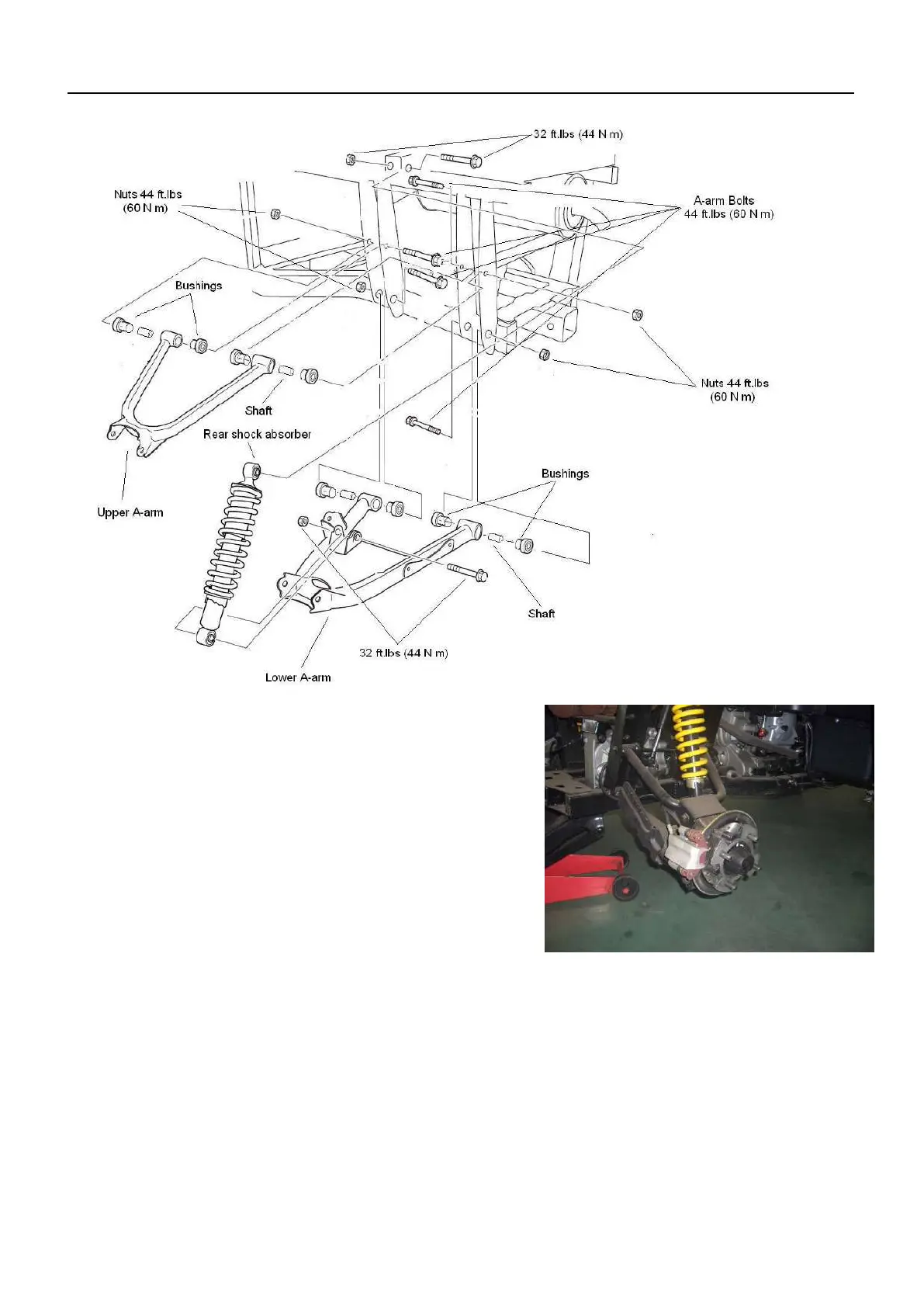

1. Elevate and safely support vehicle with weight
removed from the rear wheel(s).
2. Remove the wheel nuts and wheel.
NOTE: To ease the removal of the spindle bolt,
remove the hub cap and loosen the spindle bolts
before removing the wheel.
3. Remove the hub cap, cotter pin, spindle bolt,
and washer.
