CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-
4.1 WH E E L , H U B , AND SPINDLE TORQUE TABLE
Front Hub Nut on Spindle/ outer CV joint
Refer to exploded views and text for torque values of other fasteners.
CAUTION: Locking nuts, and bolts with pre-applied locking agent should be replaced if
removed. The self- locking properties of the nut or bolt are reduced or destroyed during removal.

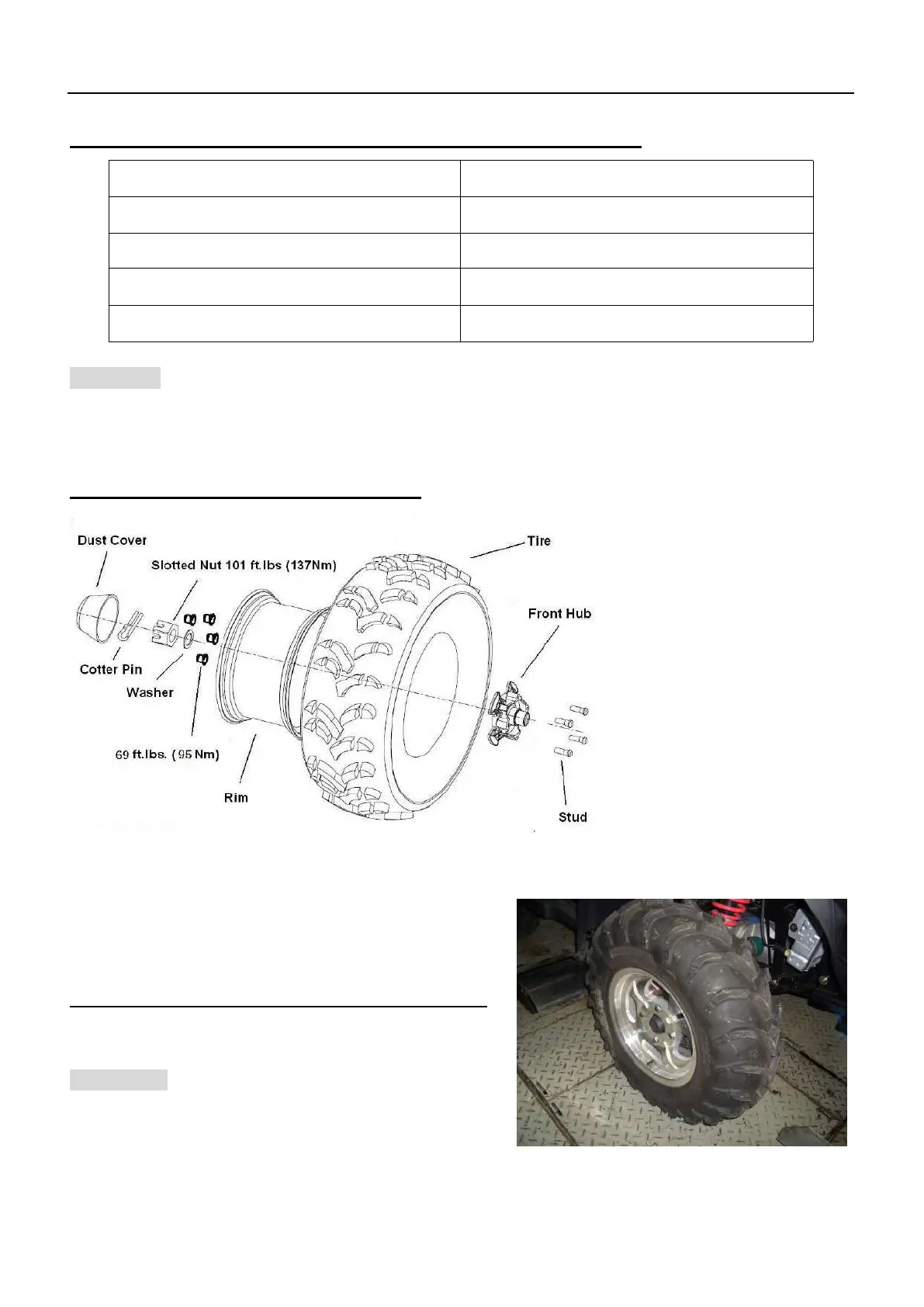

4.2 FRONT HUB EXPLODED VIEW
4.3 FRONT HUB REMOVAL/INSPECTION
1. Elevate front end and safely support machine
under footrest/frame area.
CAUTION: Serious injury may result if machine tips
or falls. Be sure machine is secure before beginning
this service procedure. Wear eye protection when
removing bearings and seals.
2. Check bearings for side play by grasping the
