CHAPTER 4 FINAL DRIVE LH50DU SERVICE MANUAL 19.1
CHAPTER 4 FINAL DRIVE. 4-
ring has locked into the front differential side gear
groove.
4. Carefully install the outer CV joint (spindle) into
the strut，install the front hub and wheel.
5. Install the ball joint on the A arm, the steering tie
rods, the hubs and the wheels as described in
this Chapter and Chapter 4.
4.8 FRONT DRIVE AXLE DISASSEMBLY/ INSPECTION(4X4)
INNER CV JOINT DISASSEMBLY
NOTE: The outer CV joint cannot be disassembled
or repaired, if damage or faulty the drive axle
assembly must be replace.
1. Open the clamps on both boot band ”A” and ”B”
on the inner CV joint, then remove boot band ”B”.
Discard the boot band, it cannot be reused.
2. Carefully slide the boot (A) onto the drive axle
and off the inboard joint.
3. Wipe out all of the molybdenum disulfide grease
within the inboard joint cavity.

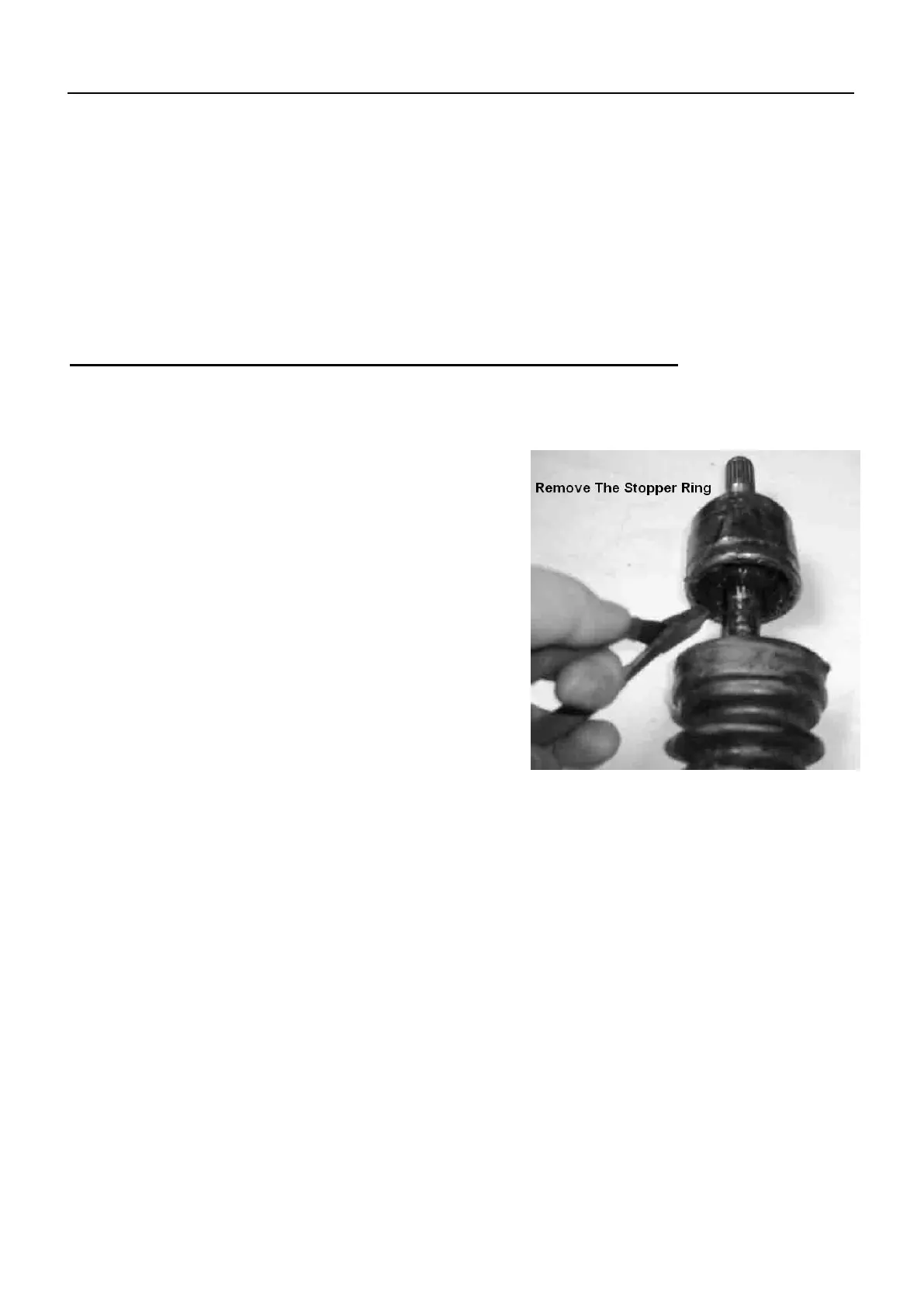

4. Remove the stopper ring from the inboard joint.
5. Remove the inner CV joint.
6. Remove the circlip and slide off the bearing
assembly. Be careful not to drop any of the steel
balls from the bearing cage.
7. Slide the inner CV off the drive axle and discard
the boot band ”A”, it cannot be reused.
8. If the outboard boot requires replacement,
perform the following:
a. Open the clamps on both boot bands ”A”
and ”B” on the outer CV joint, then remove
boot band ”B”. Discard the boot band, it
cannot be reused.
b. Slide the outboard boot off the drive axle and
discard the boot band ”A”, it cannot be
reused.
9. Inspect the drive axle as described in this chapter.
INNER CV JOINT INSPECTION
1. Clean the bearing assembly in solvent and
thoroughly dry.
2. Inspect the steel balls, bearing case and the
