been built up. Maintain at least 1/2 ". (13 mm) of
brake fluid in the reservoir to prevent air from
entering the brake system.
5. Install wheels, burnishing procedure should be performed.
5.13 REAR CALIPER REMOVAL/ INSPECTION/ INSTALLATION
CAUTION:
The caliper is a non-serviceable Component; it must
be replaced as an assembly.
NOTE: If any special service needed, contact the
CUV manufacture via the agent for the parts and
special instruction.
CAUTION:
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur if machine tips or
falls.
1. Safely support the rear of the machine.

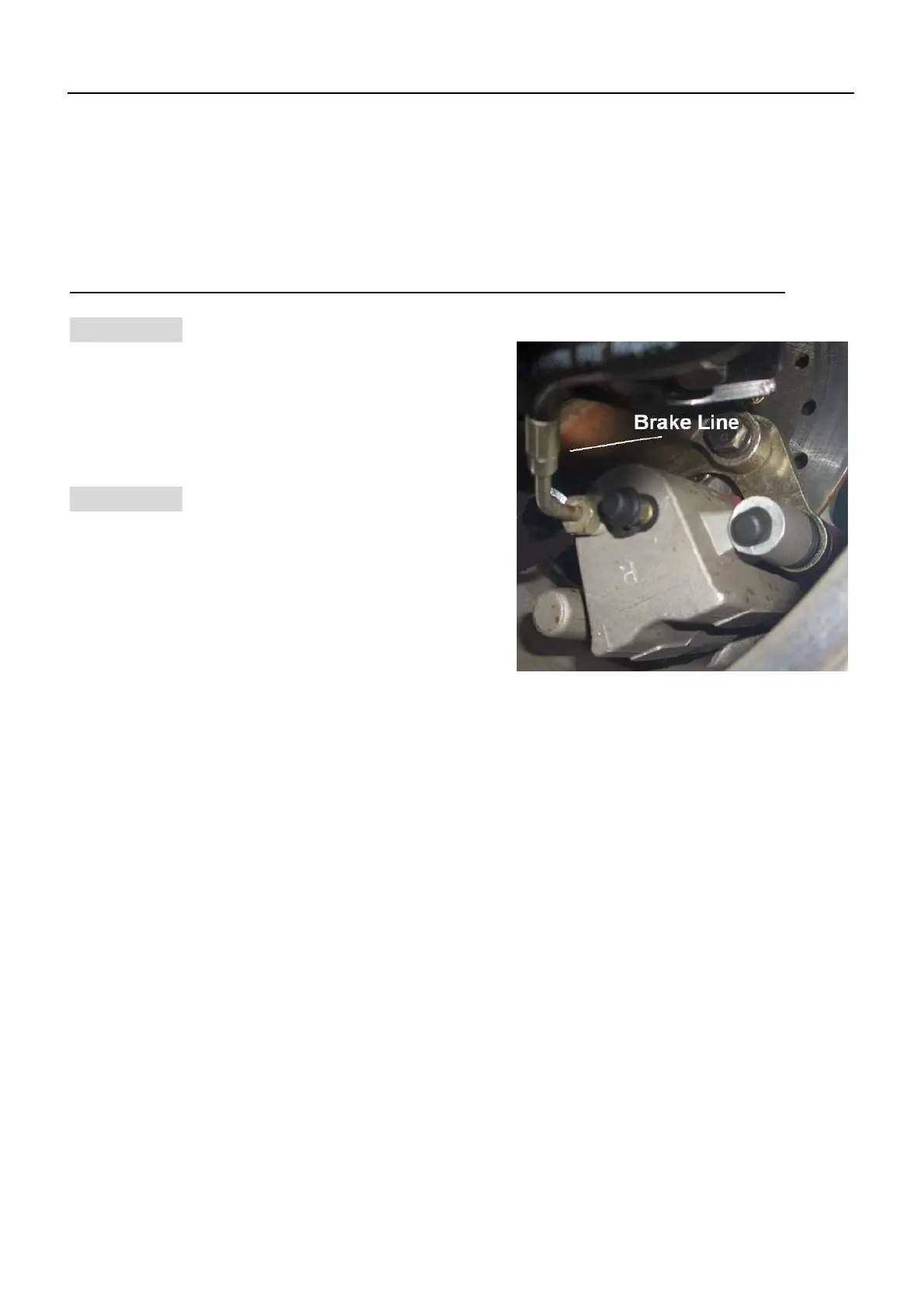

2. Use a wrench to remove the brake line. Place a
container to catch brake fluid draining from brake
lines.
3. After the fluid has drained into the container,
remove the caliper mounting bolts and remove
caliper.
4. Remove brake pad as described above.
5. Inspect surface of caliper for nicks, scratches or
damage and replace if necessary.
6. Install brake pads in caliper body with friction
material facing each other, with the spacer
between the pads. Install retaining pin through
outer pad, pad spacer and inner pad.
7. Install caliper and torque mounting bolts to 18
ft.lbs. (25 Nm).
8. Install brake hose and tighten to specified
torque.
Banjo Bolt Torque: 15 ft. lbs. (21 Nm)
9. Bleed.
10. Field test unit for proper braking action before
putting into service. Inspect for fluid leaks and
firm brakes. Make sure the brake is not dragging
when lever is released. If the brake drags,
