CHAPTER 6 ELECTRICAL LH50DUSERVICE MANUAL19.1
CHAPTER 6 ELECTRICAL CTRICAL PAGE6
5

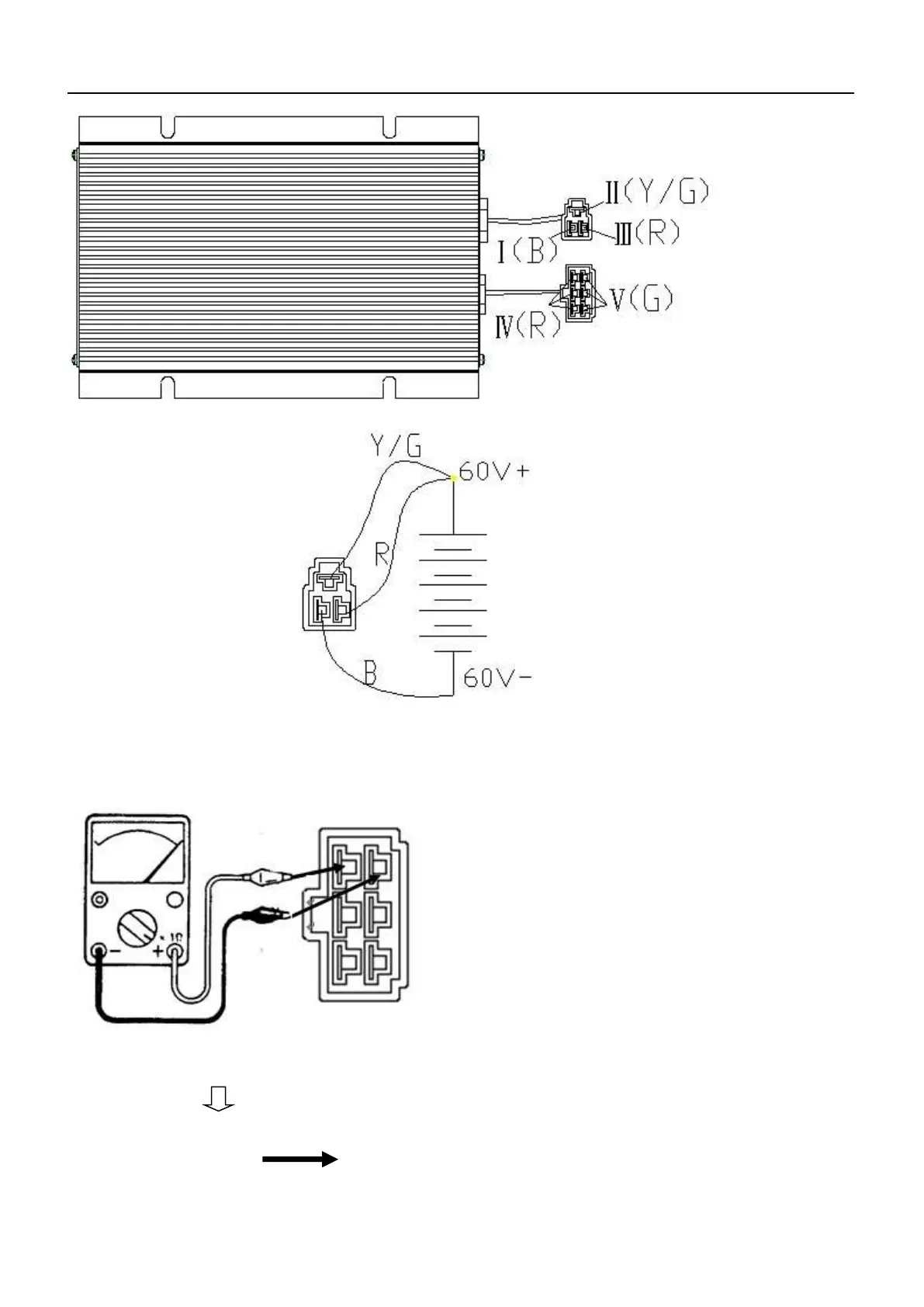

Connect the three-hole plug-in to the 60V power supply as shown in the figure above ，there is
a 12 V-13.8V voltage between Ⅳ terminal and Ⅴ terminal(Measuring with a multimeter)。
CORRECT
4、 Charger
 Check the charger Confirm the Charger Charging Lock Terminal A and Main
Cable Connection Reliable （ note ： Poor contact will result in no response of vehicles to
