Linkplay A98 - Mechanical Dimension

Doc Title Wireless Smart Audio Module-A98 Datasheet
Number
WMB20180504
Version
0.6
Document No.: WMB20180504 Page 12 of 23
2. O：Output
3. P：Power
4. IPU：Internal Pull Up
5. IPD：Internal Pull Down
2.2. Mechanical Dimension
Linkplay A98 module has the dimension of 62.8mm x 42mm. The detailed layout will be given shortly below.
Unit: mm
PLUG PCB dimensions:

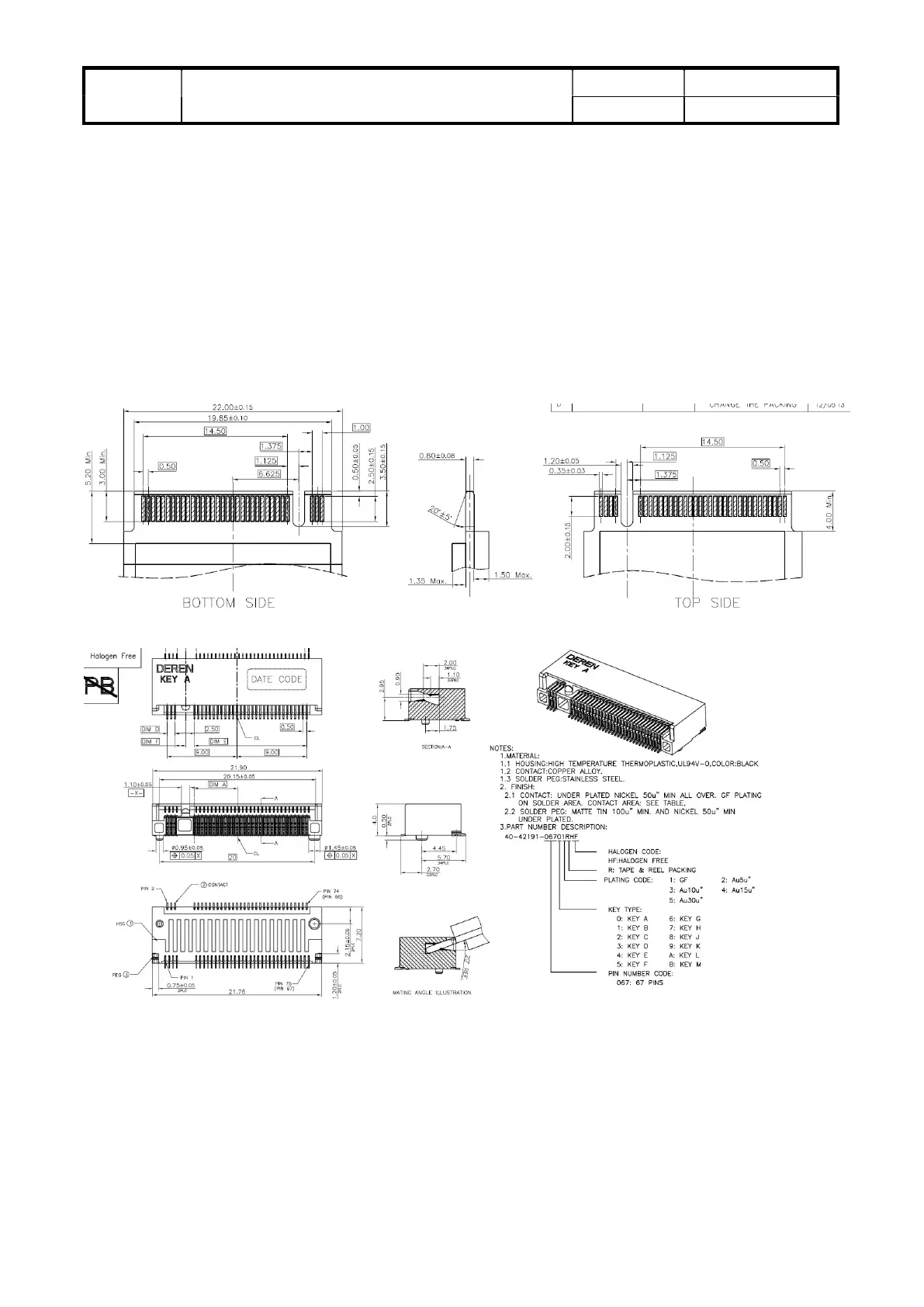

NGFF connector dimensions:
Top View Dimension
