EtherFast
®
Managed 24-Port with Dual Gigabit Switch

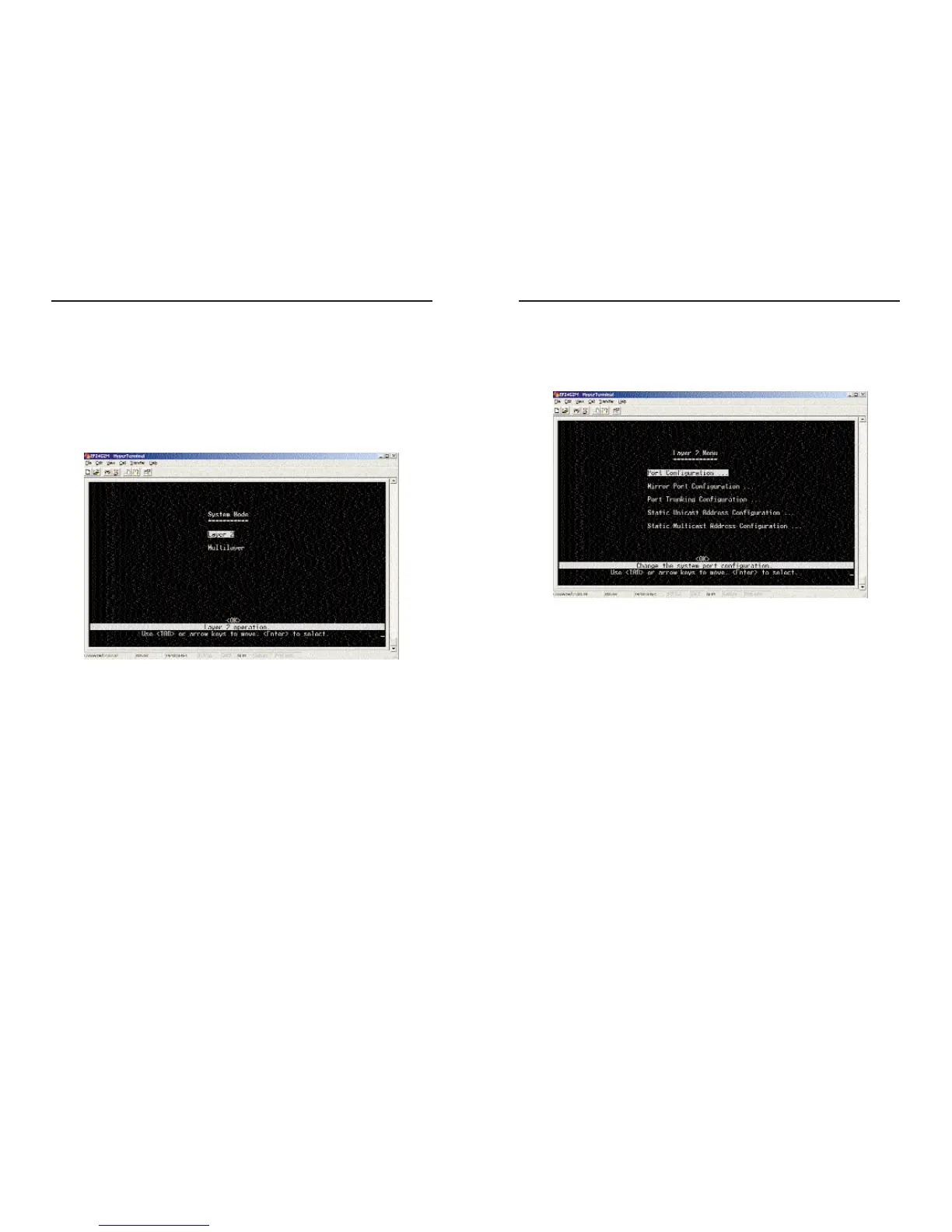

Layer 2 Menu
The Layer 2 Menu contains options for port configuration, port mirroring,
and port trunking.
• Port Configuration - Enables any port, enables/disables flow control,
and sets communication mode to auto-negotiation, full duplex, or half
duplex.
• Mirror Port Configuration - Sets the source and target ports for mir-
roring.
• Port Trunking Configuration - Specifies ports to group into aggregate
trunks.
• Static Unicast Address Configuration - Used to manually configure
host MAC addresses in the unicast table.
• Static Multicast Address Configuration - Used to manually configure
host MAC addresses in the multicast table.
Select OK to return to the previous panel.
33
EtherFast
®
Series
System Mode
The System Mode screen lets you set the Switch to operate as a Layer 2
switch or as a multilayer routing switch. As a Layer 2 switch, the Switch
makes all filtering and forwarding decisions based strictly on MAC address-
es. As a multilayer routing switch, it switches packets for all non-IP protocols
based on MAC addresses, and routes all IP packets based on the specified
routing protocol.
• Layer 2 - Filtering and forwarding decisions will be based on MAC
addresses for all protocol traffic.
• Multilayer - Switching based on MAC addresses will be used for all
non-IP protocol traffic, and routing will be used for all IP protocol
traffic.
Select OK to return to the previous panel.
32
