EtherFast
®
Managed 24-Port with Dual Gigabit Switch
5

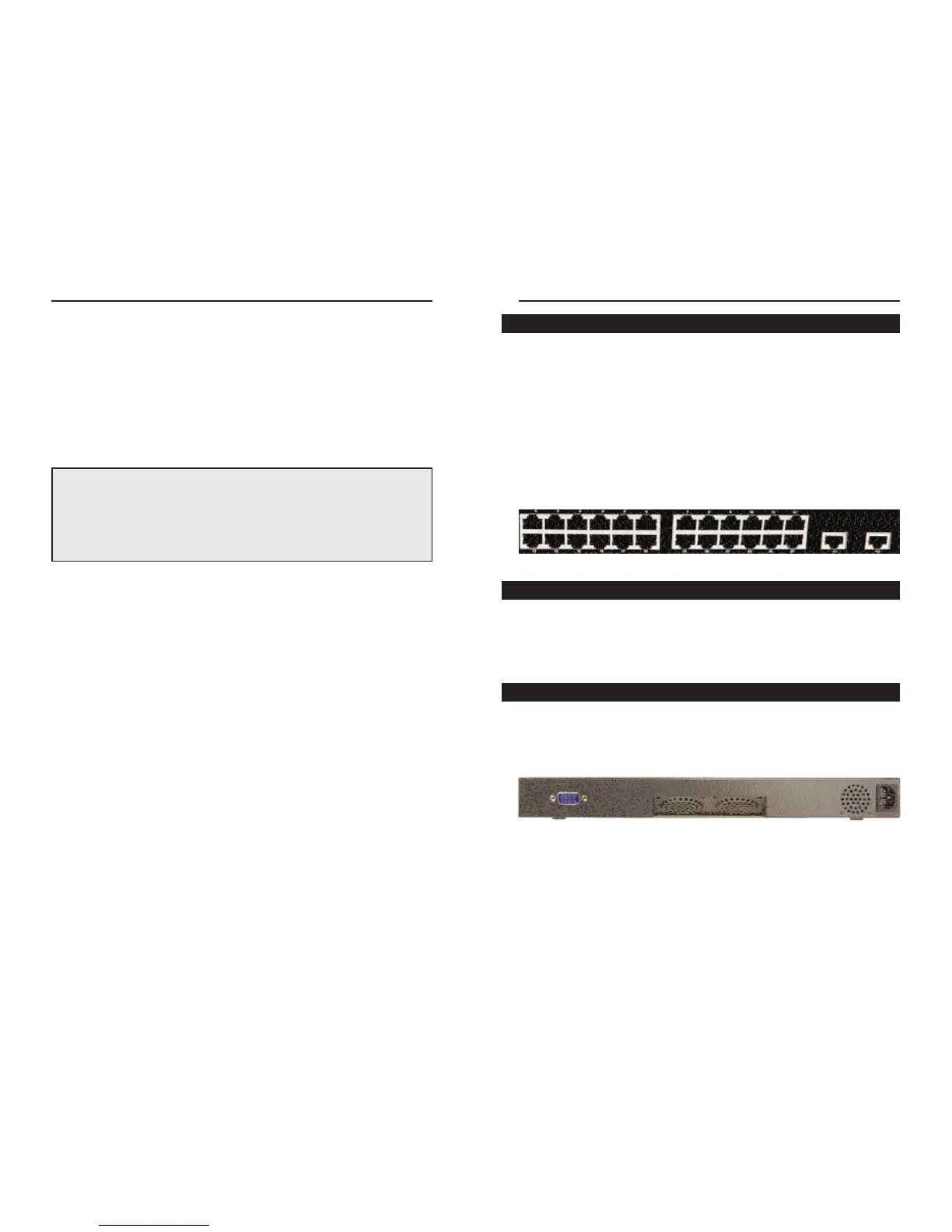

The EtherFast
®
Managed 24-Port with Dual Gigabit Switch is equipped with
twenty-four 10/100 RJ-45 ports. These RJ-45 ports support network speeds of
either 10-100Mbps in half-duplex mode, or 20-200Mbps in full-duplex mode.
Auto-sensing technology enables each port to automatically detect the speed
of the device connected to it (10Mbps or 100Mbps), and adjust its speed and
duplex accordingly.
To connect a device to a port, you will need to use a network cable. If you are
using 100BaseTX devices you will need to use UTP Category 5 (or better)
cable. The two Gigabit ports require UTP Category 5e cable (or better).
The EtherFast
®
Managed 24-Port with Dual Gigabit Switch is equipped with
two Gigabit ports. These ports provide links to high-speed network segments
or individual workstations at speeds of up to 1000Mbps (Gigabit Ethernet).
The two Gigabit ports require UTP Category 5e cable (or better).
The EtherFast
®
Managed 24-Port with Dual Gigabit Switch is equipped with
a serial port (located on the rear of the switch) that allows you to connect to a
computer (for configuration purposes) using the provided serial cable.
The RJ-45 Ports
The Gigabit Ports
The Console Port
EtherFast
®
Series
MODE
COL (Amber) The LED will illuminate when collisions are
detected.
ACT (Amber) The LED will illuminate when there are active
ports.
FDX (Amber) The LED will illuminate when there are ports
operating in full-duplex mode.
100M (Amber) The LED will illuminate when there are ports
transmitting data at 100Mbps.
4
The Reset Button
If your Switch is having problems with network connections, press the Reset
button for five seconds. This clears up any jammed connections, and is simi-
lar to pressing the Reset button on your PC to reboot it.
