EtherFast
®
Managed 24-Port with Dual Gigabit Switch
Protocol Configuration

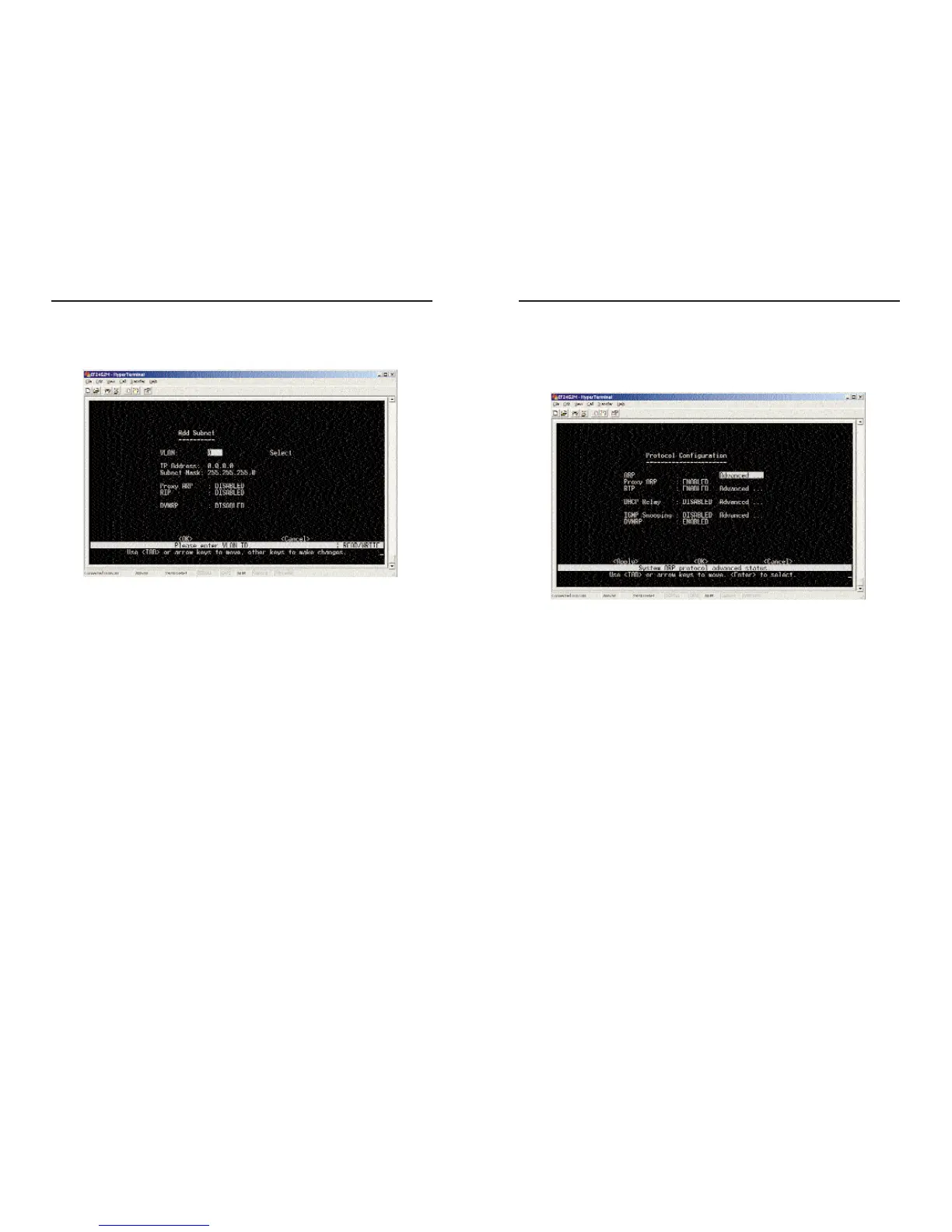

The Protocol Configuration screen is used to globally enable or disable
unicast or multicast routing protocols for the Switch.
• ARP - Address Resolution Protocol. Select Advanced for additional
configuration.
• Proxy ARP - Proxy Address Resolution Protocol.
• RIP - Routing Information Protocol for unicast routing. Select
Advanced for additional configuration.
• DHCP Relay - Dynamic Host Configuration Protocol relay. Select
Advanced for additional configuration.
.
• IGMP Snooping - IGMP multicast filtering. Select Advanced for add-
tional configuration. (See page 64.)
• DVMRP - Distance-Vector Multicast Routing Protocol.
Select Apply to make changes. Select OK to return to the previous panel.
Select Cancel to cancel any changes.
51
EtherFast
®
Series
Add Subnet
The Add Subnet screen allows you to add an IP interface.
• VLAN - The VLAN associated with this IP interface.
• Select - Use this option to create or modify a VLAN.
• IP Address - The IP address associated with the specified VLAN
interface.
• Subnet Mask - A template that identifies the address bits in the
host address used for routing to specific subnets.
• Proxy ARP - Proxy Address Resolution Protocol.
• RIP - Routing Information Protocol for unicast routing.
• DVMRP - Distance-Vector Multicast Routing Protocol.
Select OK to confirm the changes. Select Cancel to cancel any changes.
