EtherFast
®
Managed 24-Port with Dual Gigabit Switch
Console Port to 25-Pin DTE Port on PC
95
EtherFast
®
Series
3. I can’t access the on-board configuration program via a serial port configura-
tion.
• Be sure you have set the terminal emulator program to VT100 compati-
ble, 8 data bits, 1 stop bit, no parity, and 19200 bps.
• Check that the null-modem serial cable conforms to the pin-out con-
nections provided below.

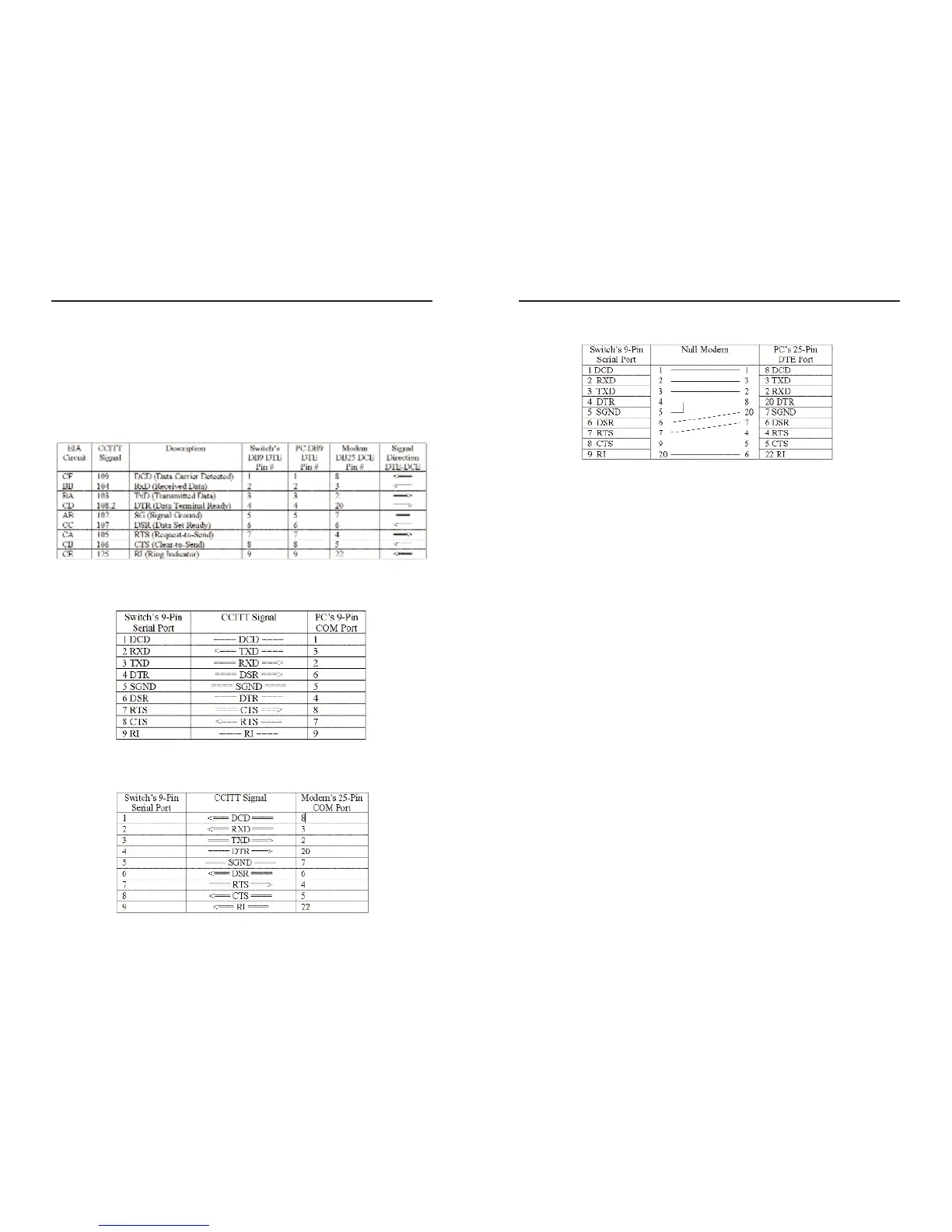

DB-9 Port Pin Assignments
Console Port to 9-Pin COM Port on PC
Console Port to 25-Pin DCE Port on Modem
94
