5-Port and 8-Port 10/100/1000 Gigabit Switches

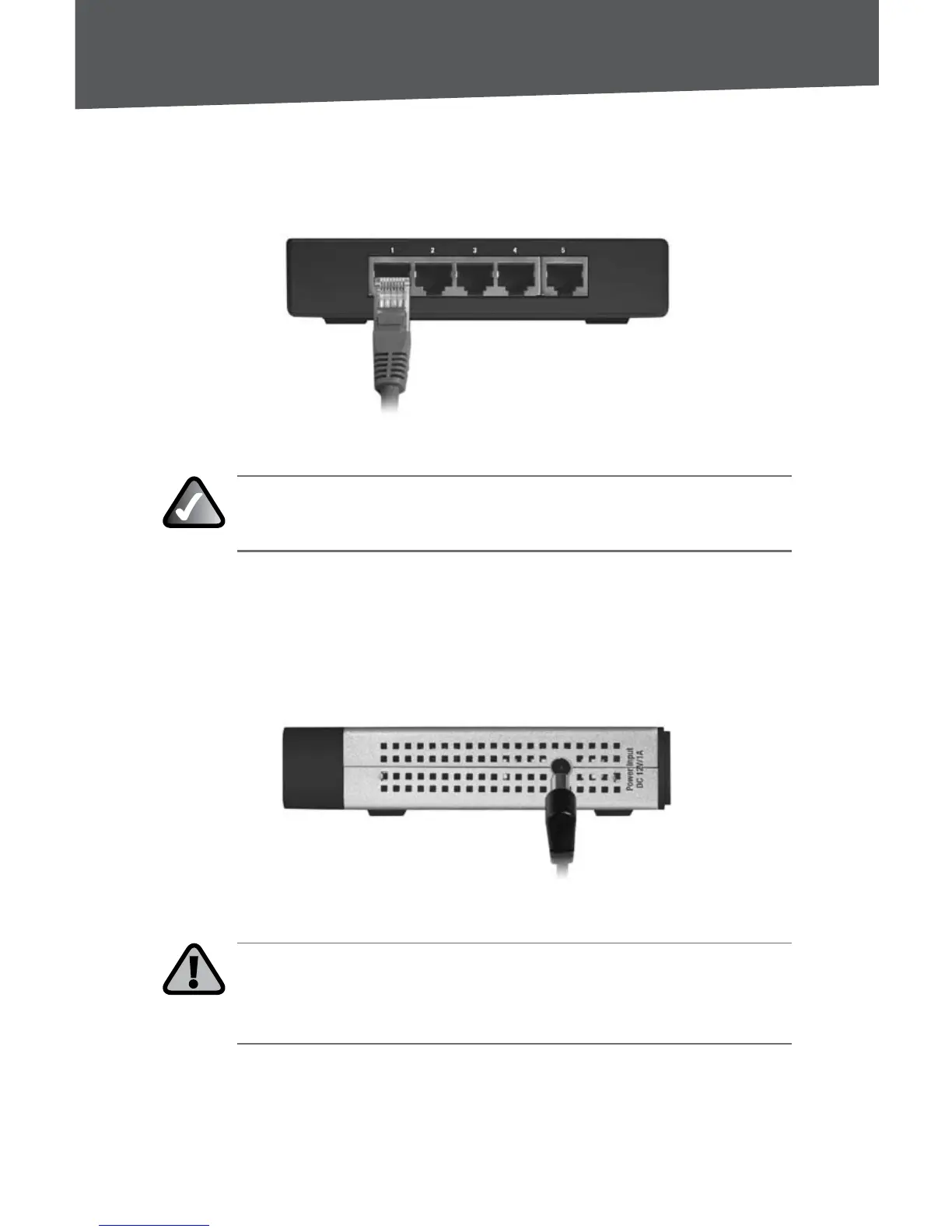

Chapter 2: Connect the Switch
Connect a Category 5 Ethernet network cable to one of the numbered
ports on the Switch. Connect the other end to a computer or other
network device.
Connect the Ethernet Network Cable
NOTE: Use Category 5e Ethernet network cables for your
Gigabit connections.
Repeat step 2 to connect additional devices.
Connect the supplied power adapter to the power port on the
Switch’s side panel. Plug the other end of the adapter into an
electrical outlet.
Connect the Power
WARNING: Make sure you use the power adapter included
with the Switch. Using a different power adapter may damage
the Switch.
Power on the devices connected to the Switch. Each active port’s
corresponding LED will light up on the Switch.
Congratulations! The installation of the 10/100/1000 Gigabit Switch is complete.
