Linksys SE3005 User Manual

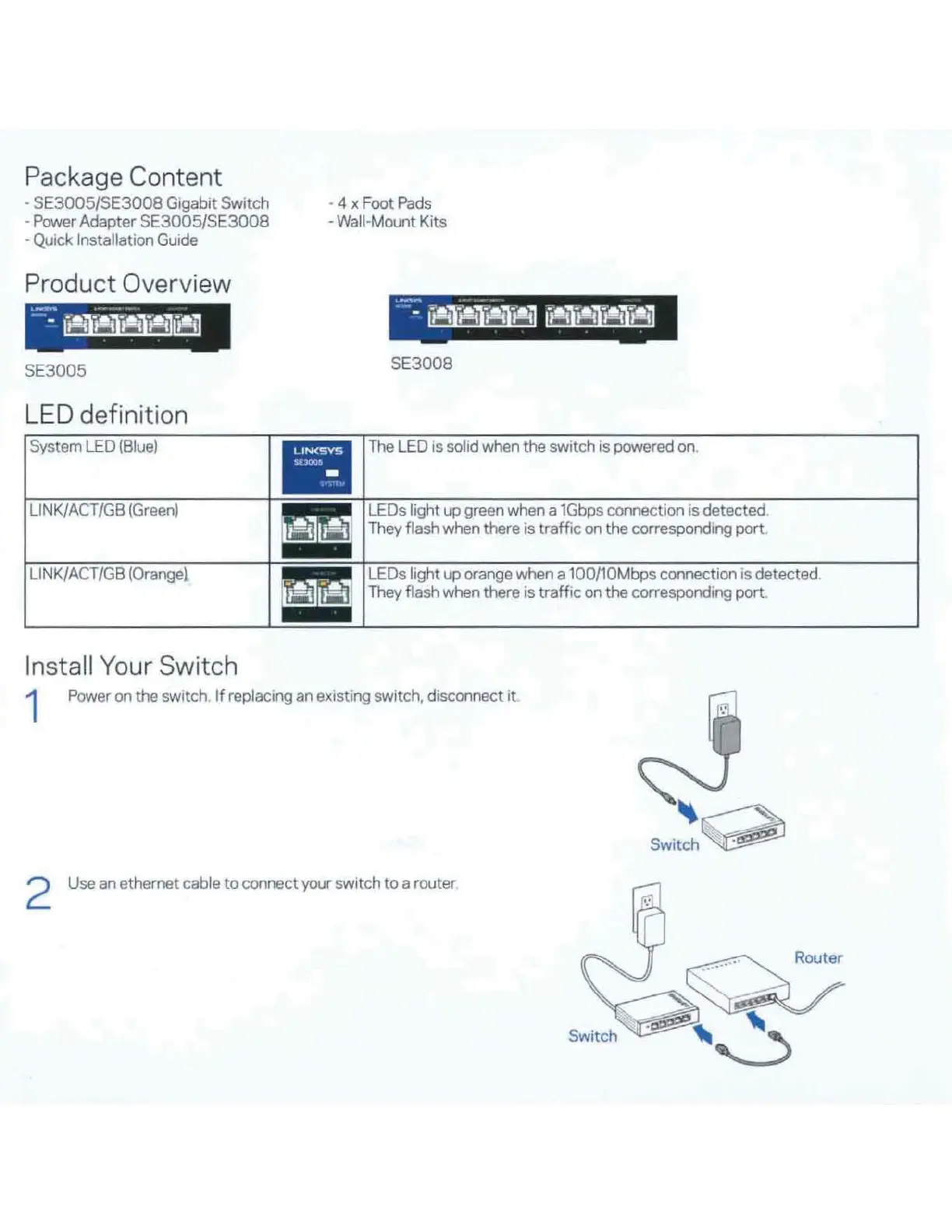

Package Content
• SE3005/SE3008 Gigabit Switch - 4 x Foot Pads
• Power Adapter SE3005/SE3008 - Wall-Mount Kits
• Quick Installation Guide
Product Overview
SE3005
SE3008
LED defini ti on
System LED (Blue)
-
The LED 1s solid when the switch is powered on .
LINK/ACT/GB (Green)
E
LEDs light up green when a 1Gbps connection is detected.
They flash when there is traffic on the corresponding port
LINK/ACT/GB (Orange}
m
LEDs light up orange when a 100/10Mbps connection is detected
They flash when there is traffic on the corresponding port .
In stall Your Switch
1
Power on the switch If replacing an existing switch, disconnect it
Switch ~
2 Use an ethernet cable to connect your switch to a router
Router

Linksys SE3005 Specifications

General

Switch type	Unmanaged
Switch layer	L2
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	5
10G support	No
Auto-sensing	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
MAC address table	- entries
Stackable	-
Product color	Black
