Linksys WHW0301 User Manual

5
Help
Where to find more help
•
Linksys.com/support/Velop
•

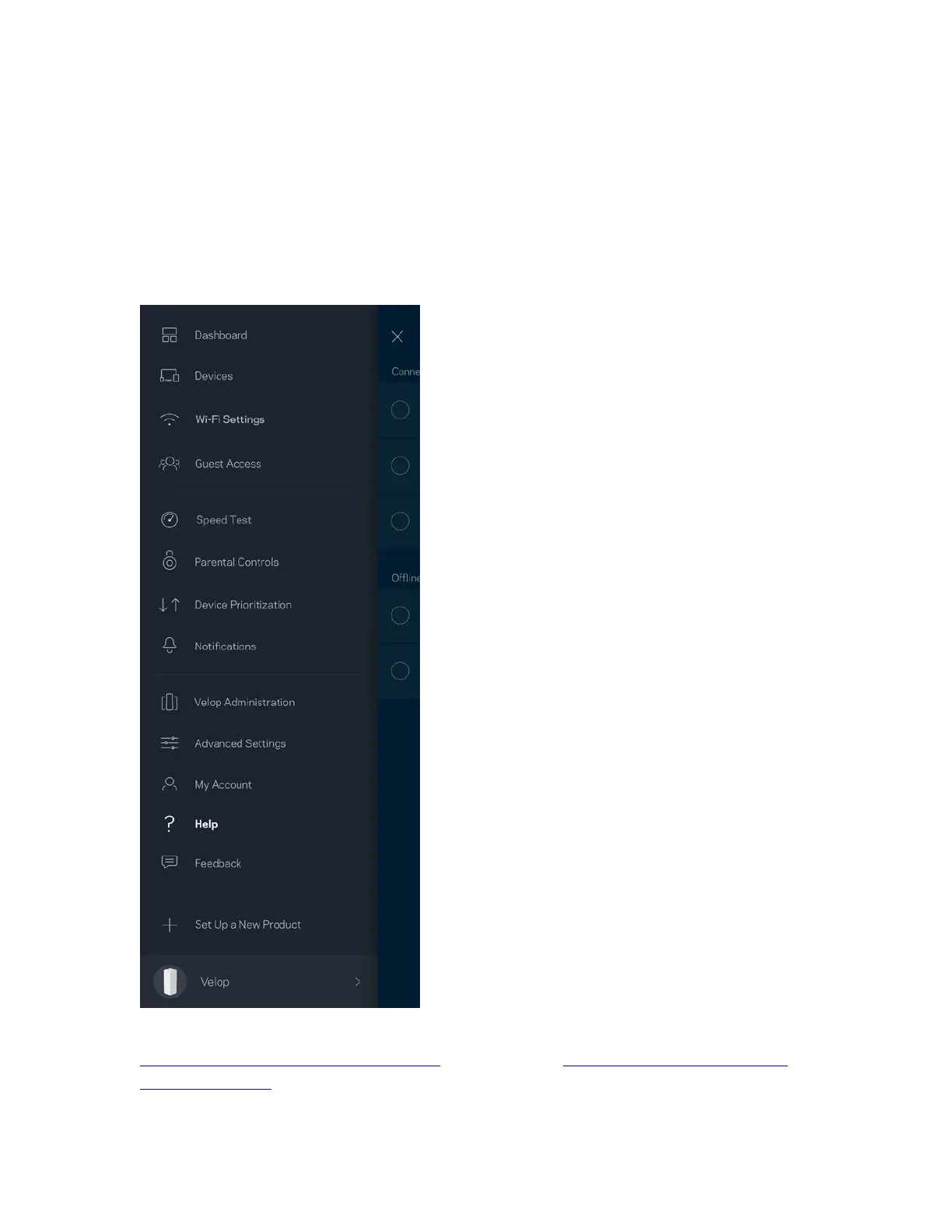

Linksys app help (launch the app and click Help in the main navigation menu)
Note—Licenses and notices for third party software used in this product may be viewed on
http://support.linksys.com/en-us/license. Please contact http://support.linksys.com/en-
us/gplcodecenter for questions or GPL source code requests.

Linksys WHW0301 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Modulation	256-QAM
Flash memory	4000 MB
Internal memory	512 MB
Processor cores	4
Processor frequency	0.716 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	867 Mbit/s
Antenna features	Integrated antenna
Antennas quantity	6
Compatible operating systems	Android 4.0.3 or later iOS 8.x or later
Management platform	Linksys
Internal	No
Placement	Table
Product type	Mesh router
Product color	White
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	WPA2
Cables included	LAN (RJ-45)
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2200 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
AC adapter frequency	50/60 Hz
AC adapter input current	0.7 A
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	12 V

Weight and Dimensions

Width	78.7 mm
Height	185.4 mm
Weight	610 g
Package depth	115 mm
Package width	215 mm
Package height	255 mm
