Linksys WHW0303 User Manual

7
Note—During setup we’ll send a verification email. From your home network, click the link in the
email.
Other than plugging in the power and the ethernet cables, the app-based setup process does the
work for you. Once connected, use the app to personalize your Wi-Fi by giving it a name and
password. You also can give nodes names based on where they are so you can identify them in the
rare case where things need attention.

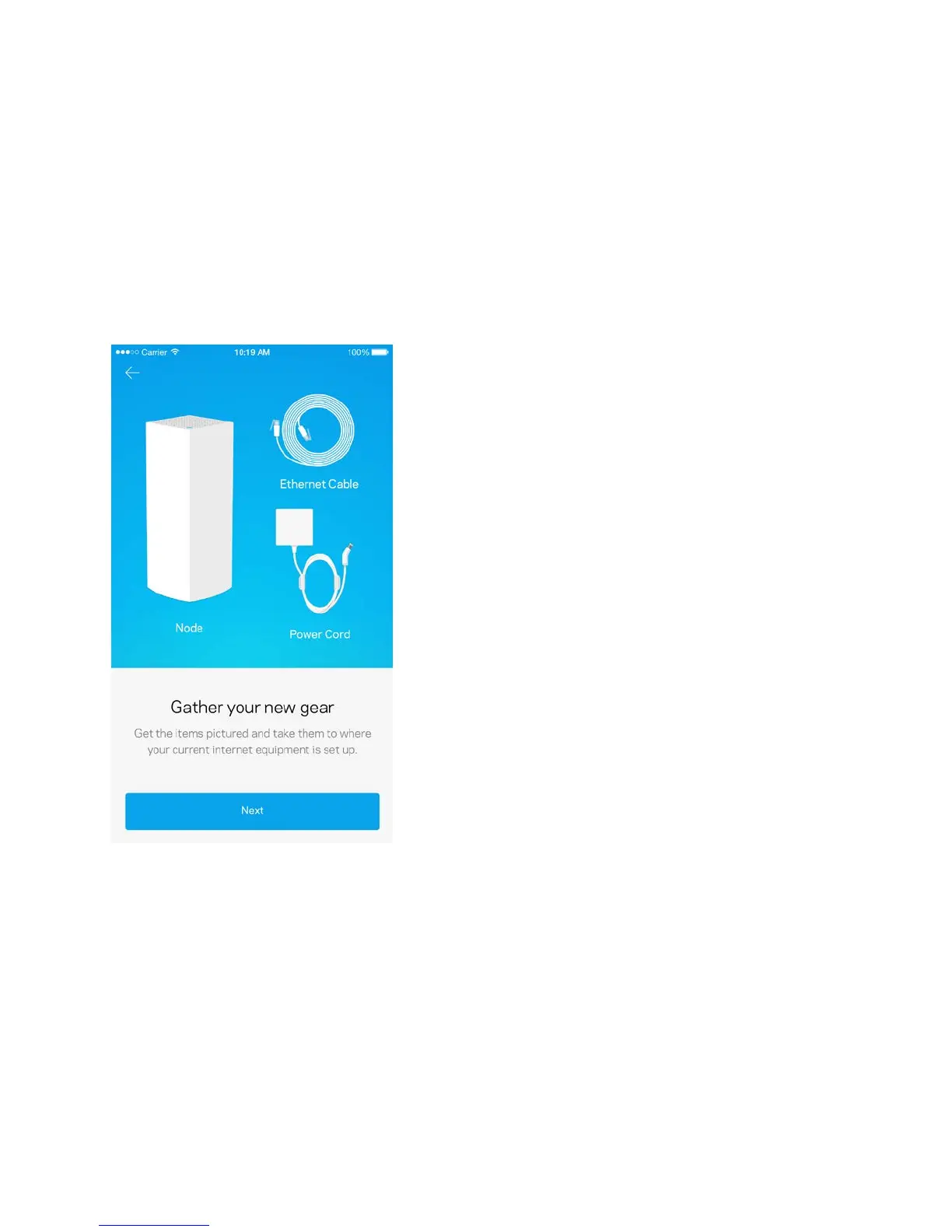

What you’ll need

Linksys WHW0303 Specifications

General

5 GHz	Yes
Modulation	256-QAM
Flash memory	4000 MB
Internal memory	512 MB
Processor cores	4
Processor frequency	0.716 GHz
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	867 Mbit/s
Management platform	Linksys
Compatible operating systems	Android 4.0.3 or later iOS 8.x or later
Antenna features	Integrated antenna
Antennas quantity	6
Internal	No
Placement	Table
Product type	Mesh system
Product color	White
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 80 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	WPA2
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2200 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
AC adapter frequency	50/60 Hz
AC adapter input current	0.7 A
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	12 V

Weight and Dimensions

Width	78.7 mm
Height	185.4 mm
Weight	610 g
Package depth	115 mm
Package width	395 mm
Package height	255 mm
