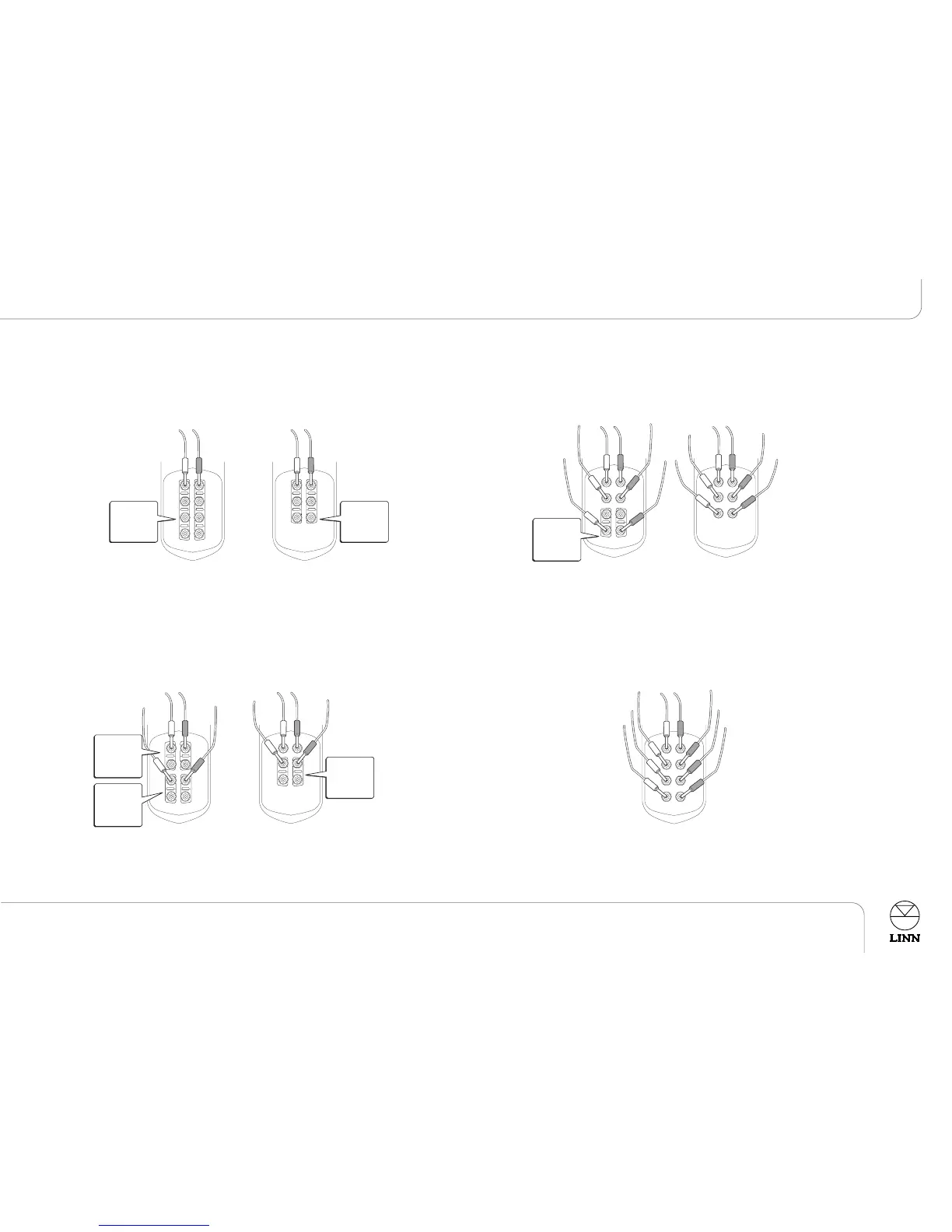

Wiring / amping configurations
Single-wiring
Position of link strips if single-wiring (i.e. using a single cable from one power
amplifier channel). No link adjustments or cuts are required.
Bi-wiring or bi-amping
Suggested position of separated link strips if bi-wiring (i.e. using two cables
from one power amplifier channel) or bi-amping (i.e. using two power amplifier
channels.
KOMPONENT 110, 106, 104
ADVANCED FEATURES
Wiring / amping configurations
English
KOMPONENT 110 or 106 KOMPONENT 104
Output from
power amplifier
can be connected
to any of the
four pairs of
terminals.
Output from
power amplifier
can be connected
to any of the
three pairs of
terminals.
KOMPONENT 110 or 106 KOMPONENT 104
Output from
power amplifier
can be connected
to either of the
two pairs of
terminals.
Output from
power amplifier
can be connected
to either of the
two pairs of
terminals.
Output from
power amplifier
can be connected
to either of the
two pairs of
terminals.
Tri-wiring or tri-amping
Suggested position of separated link strips if tri-wiring (i.e. using three cables
from one power amplifier channel) or tri-amping (i.e. using three power
amplifier channels).
Please note - link strips MUST be removed completely on KOMPONENT 104.
Quad-wiring or quad-amping (KOMPONENT 110 & 106)
Link strips MUST be removed when quad-wiring (i.e. using four cables from one
power amplifier channel) or quad-amping (i.e. using four power amplifier
channels).
KOMPONENT 110 or 106 KOMPONENT 104
Output from
power amplifier
can be connected
to either of the
two pairs of
terminals.
