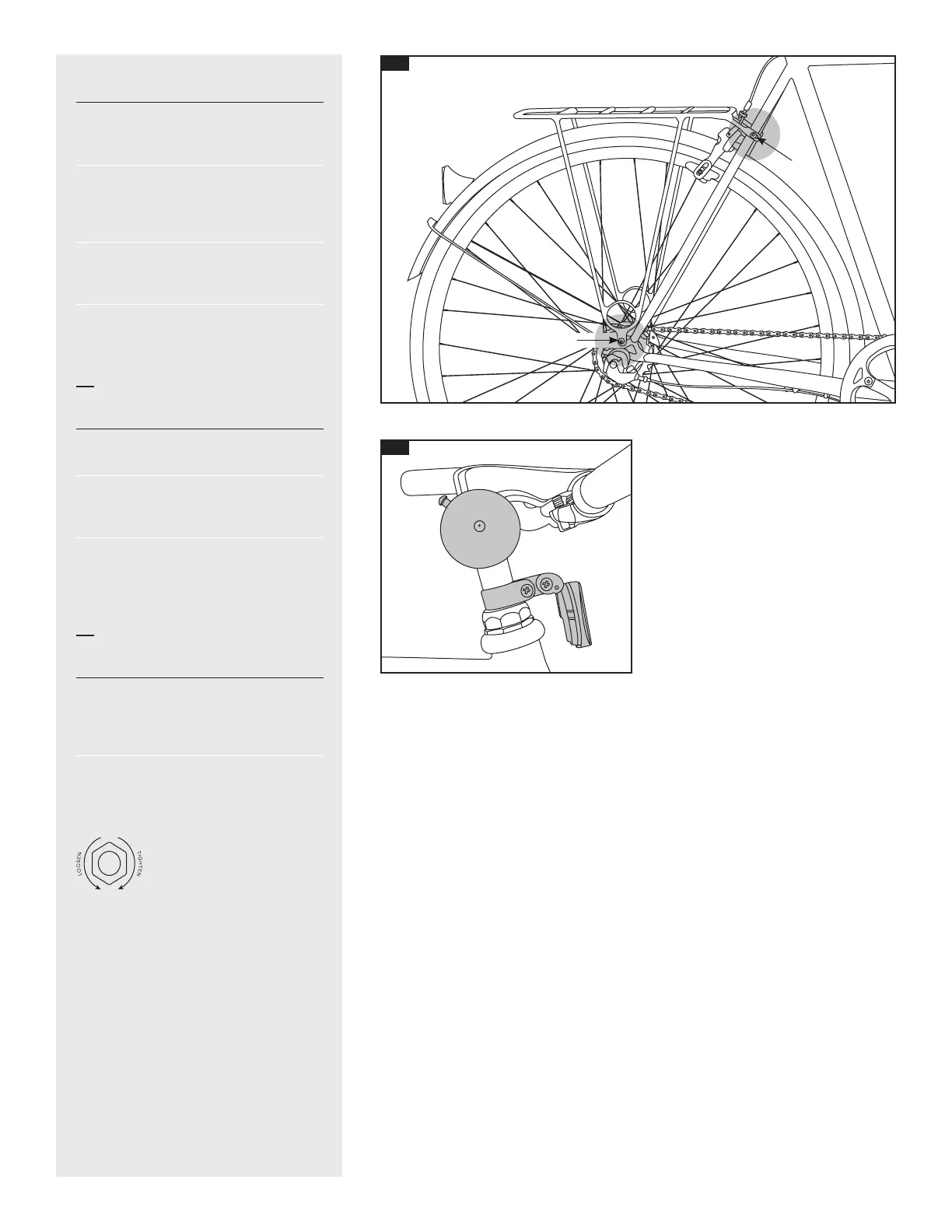

10. Rear Rack Installation
Unthread the 4mm bolts (A) on the seat
stays (above the brake caliper) and from
the rear drop outs (B).
Hold the rack over the rear wheel and
thread the 4mm bolts through the rack
braces into the drop-out but do not
tighten down completely.
Thread the 4mm bolts through the upper
braces and back into the seat-stays but do
not tighten down completely.
Once all 4 bolts are installed hold the
rack centered over the rear wheel and
tighten the bolts completely. Torque
Requirement: 3-5Nm.
11. Bell + Reflector Installation
Using a Philips screwdriver, clamp the
bell in the desired position.
To adjust the striker, rotate the dome
anti-clockwise, re-position the striker
and then tighten.
Using a Philips screwdriver, clamp the
white reflector on the stem or handlebar
and tighten down. Adjust the reflector
lens so that the lens is perpendicular to
the road.
12. Tire Inflation
Tire information can be found on the
side-walls of your tires – you should be
able to see tire size (e.g. 700x32) and
recommended inflation (e.g. 65-85 PSI).
Tire pressure should be checked
before each ride to help prevent
unnecessary flats.
A
B
10.1
11.1
To Next Page
